MS6G-180TH15B2-43P0

Name: MS6G-180TH15B2-43P0
Brand: XINJE
SKU: 2725
Price: 6200.00 CNY
Availability: InStock

¥6,200.00

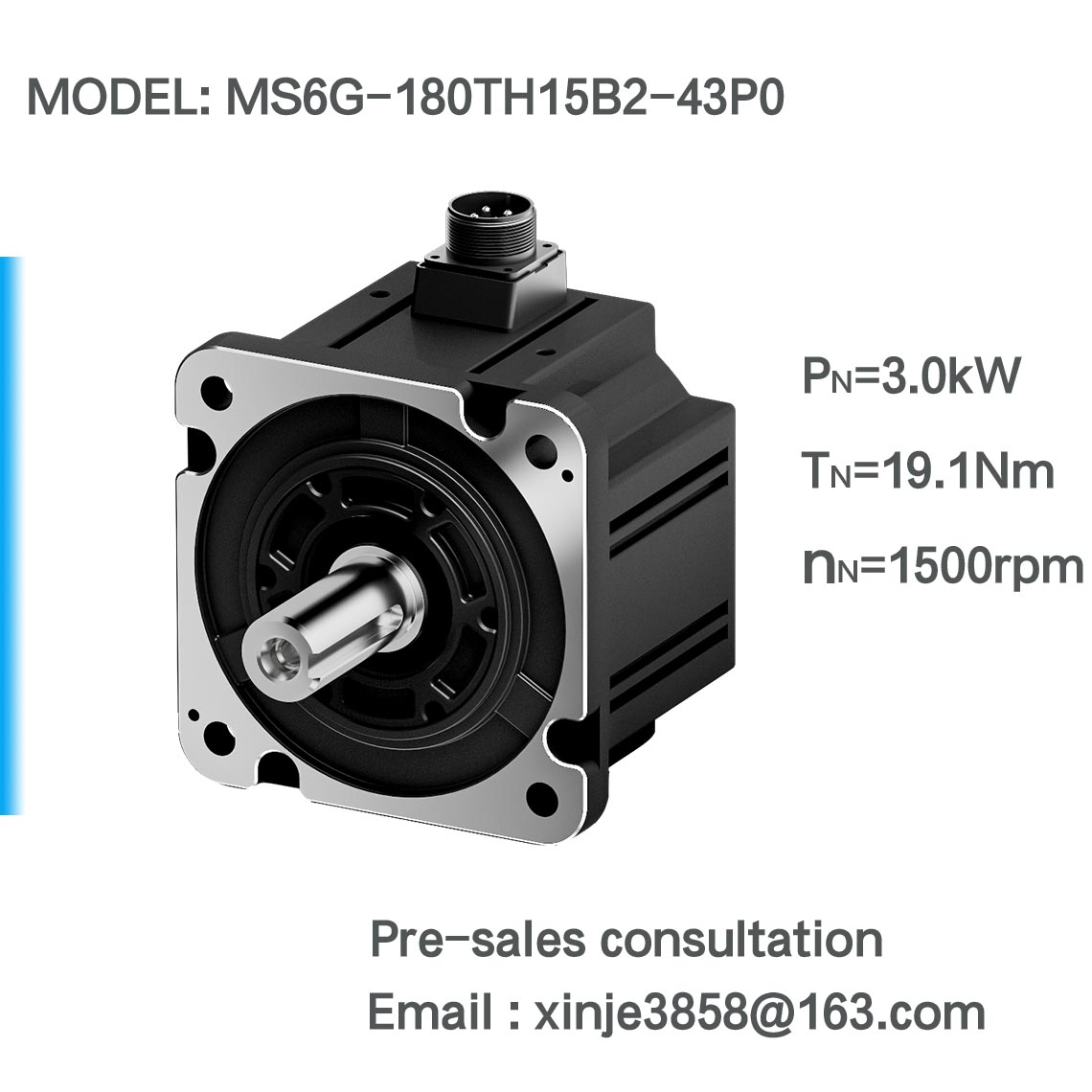

MS6G series 180 flange servo motor

XINJE servo motor, 3.0KW, 19.1Nm, 1500rpm, medium inertia, AC380V, Encoder accuracy 23 bits, protection level IP67;

Weight : kg

Packaged Dimensions : * * (cm)

Category: Servo Motor Brand: XINJE

model		MS6G-180TH15B2-43P0
Motor code		A15B
Power		3.0[kW]
Voltage level		380VAC
Inertia type		Medium
Rotor inertia		45790.0 [10^-7kg.m²]
Rated speed		1500 [rpm]
Max speed		4500 [rpm]
Rated torque		19.1[Nm]
Max torque		47.75[Nm]
Rated current		10.5[A]
Max current		26.25[A]
Overload capacity		2.5
Recommended rotor inertia ratio		10
Electrical constant e		21.98[ms]
Mechanical constant m		1.23[ms]
Back EMF constant Ke		167[mV/rpm]
Torque constant Kt		1.82[Nm/A]
Pole pairs		5
Encoder type		optical
Encoder bits		23
Motor insulation grade		ClassF(155℃)
Protection level		IP67
using environment	Ambient temperature	-10℃~+40℃(not frozen)
	Ambient humidity	Relative humidity < 90%（non condensing)
with brake		×

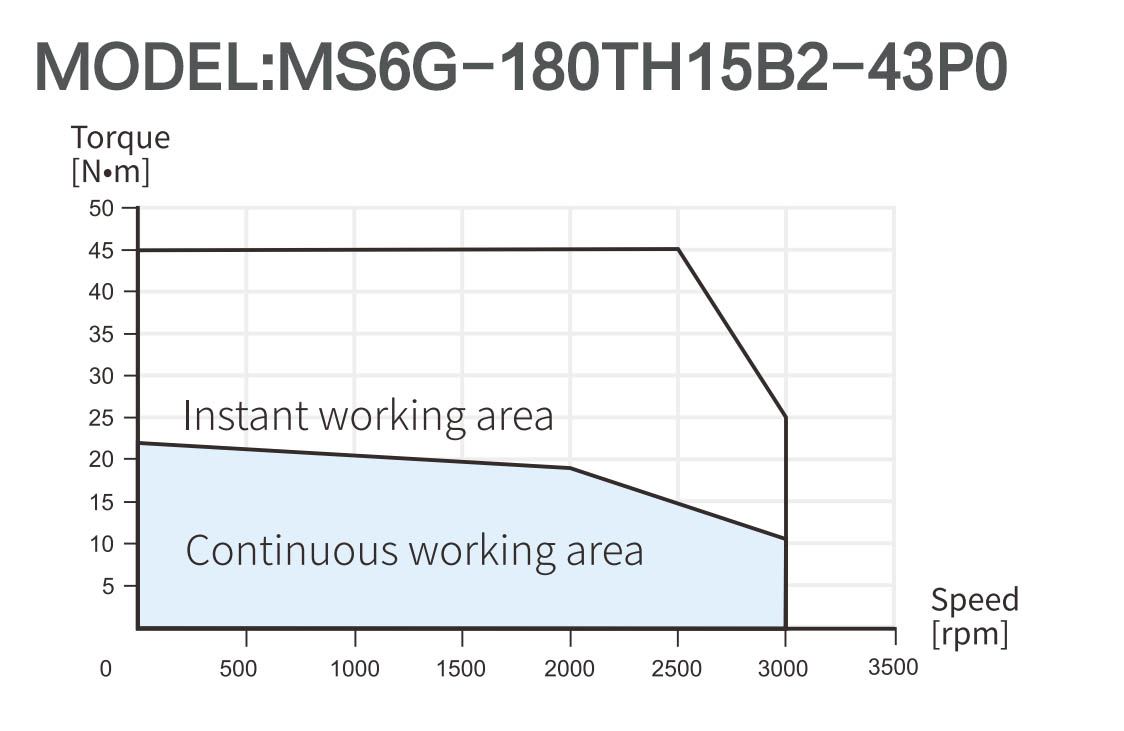

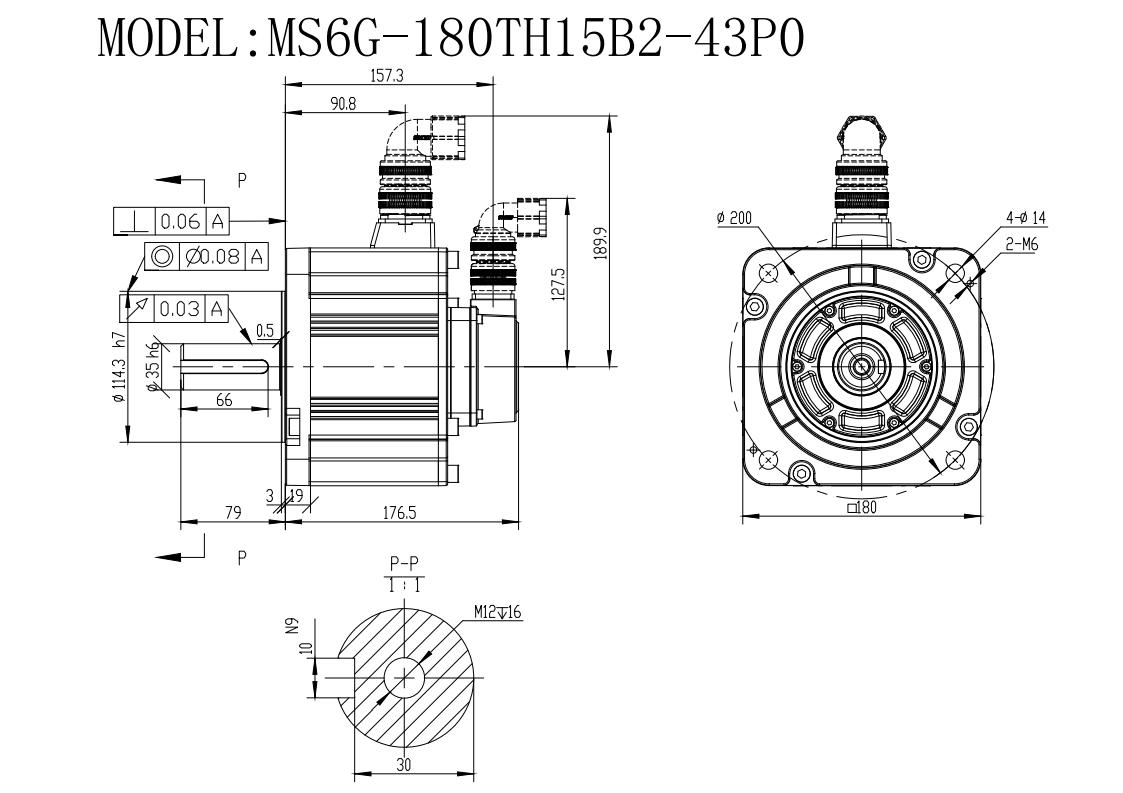

Dimensions （mm)

A complete servo system needs to consist of four components: servo motor, servo driver, encoder cable, and power cable.
servo motor	servo driver	encoder cable	power cable

Recommend compatible drivers
Control method	Pulse-type:DS5L2-43P0-PTA	EtherCAT-type:DS5C2-43P0-PTA	Analogue-type :DS5K2-43P0-PTA
product drawing
Introduction	Pulse type servo driver, 3.0KW, RS485, supports 5V or 24V pulses,3-phase AC380V power input, 5 DI and 3 DO.	EtherCAT bus type 3.0KW servo driver, 3-phase AC380V power input, 5 DI and 3 DO.	Full-featured servo drive,3.0KW, RS485, supports ± 10V analog input,supports 5V or 24V pulses,3-phase AC380V power input, 8 DI and 6 DO.

Other compatible drivers
DS5K5-43P0-PTA	Enhanced servo driver,3.0KW, RS485, ±10V analog input, AC380V.
DS5C2-43P0-PTA-FH	High protection,EtherCAT bus type servo driver, 3.0KW ,AC380V.
DS5C2-43P0-PTA-FS	With STO,EtherCAT bus type servo driver,3.0KW,AC380V.

Cable configuration
Flexibility of cables	Encoder cable （03 represents 3m）		Power cable （03 represents 3m）
	With battery box	Without battery box	Power cable （03 represents 3m）

Ordinary	CP-SCT-B-03	CP-SCT-M-03	CM-L15T-03
Ordinary
High flexibility	CPT-SCT-B-03	CPT-SCT-M-03	CMT-L15T-03
High flexibility
Instructions: 1. The number after the cable model represents the number of meters. The standard meters are: 02, 03, 05, 06, 08, 10, 12, 16, 20; 2. For servo drives that require position memory after power failure, please choose encoder cables with battery packs.
