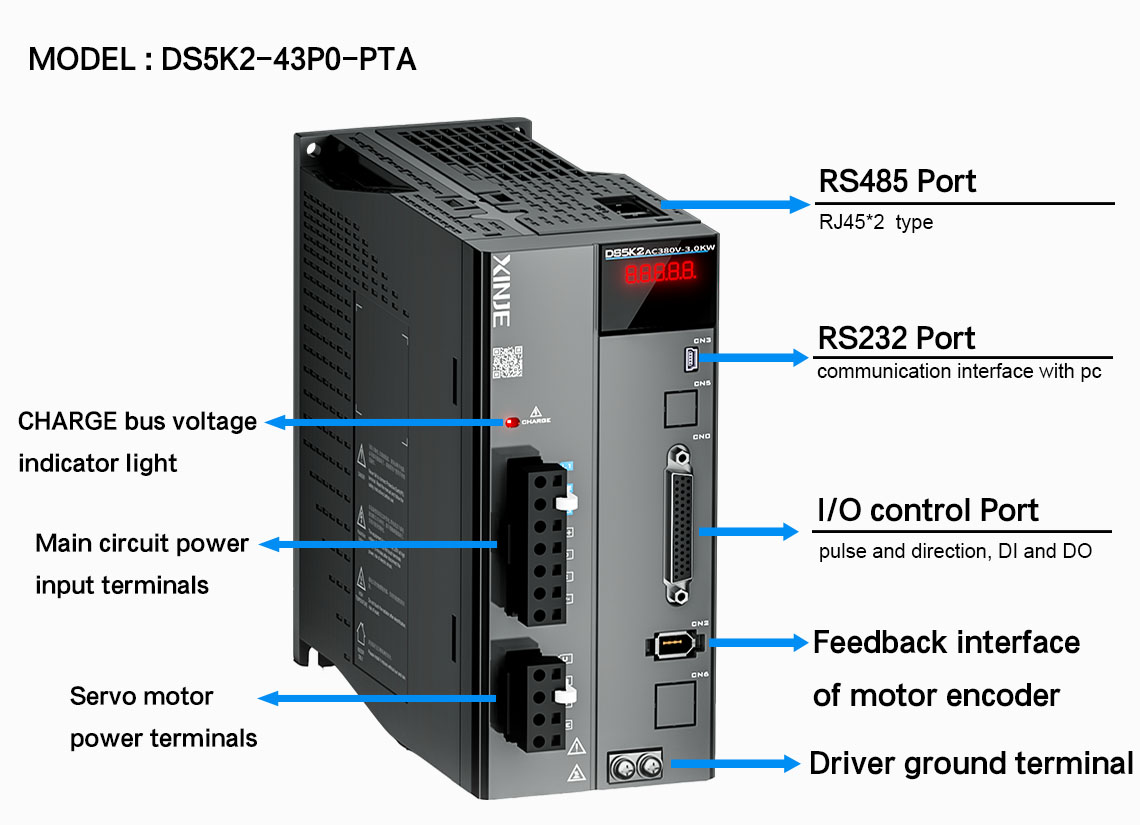

Interface diagram

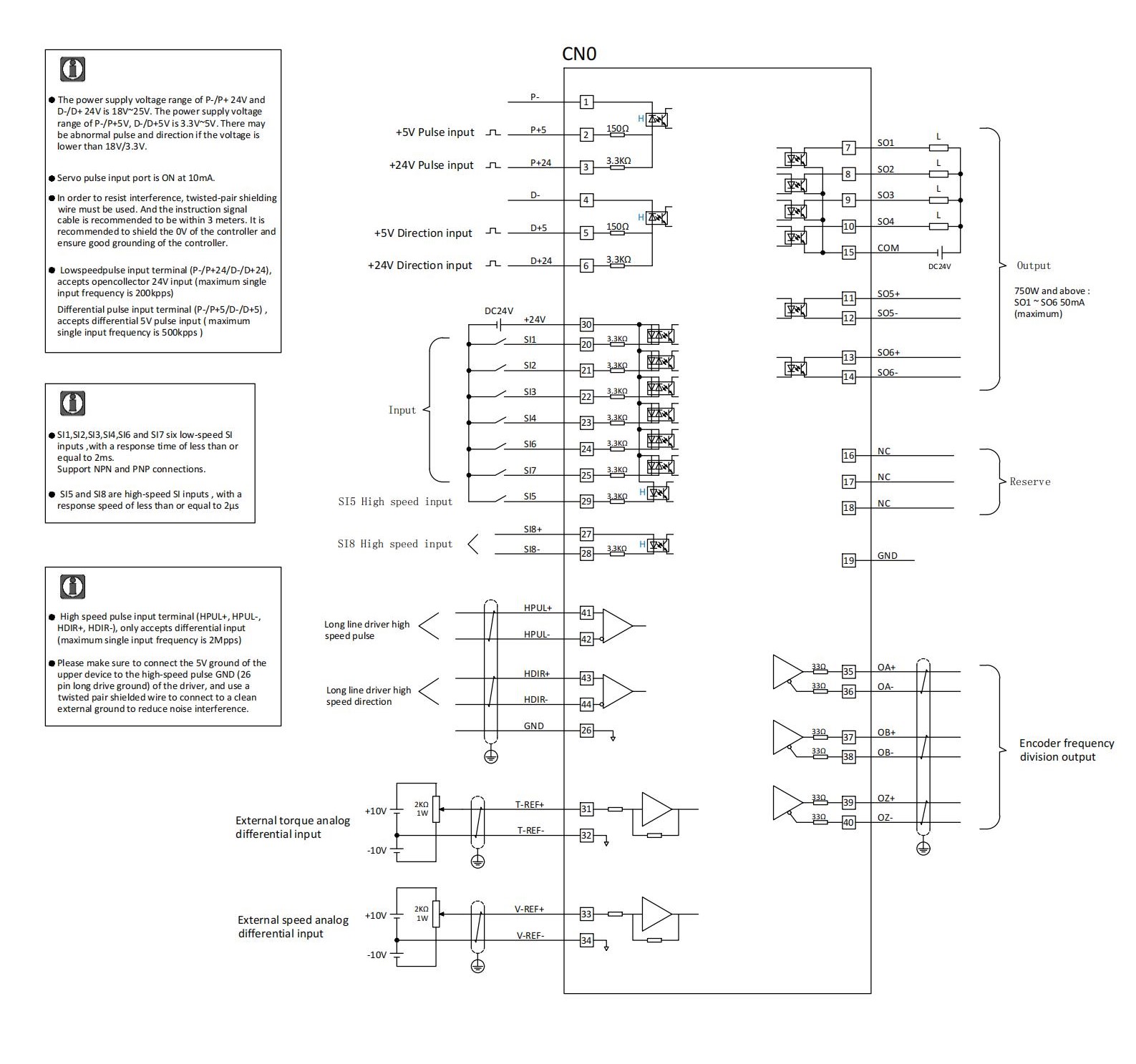

Wiring schematic

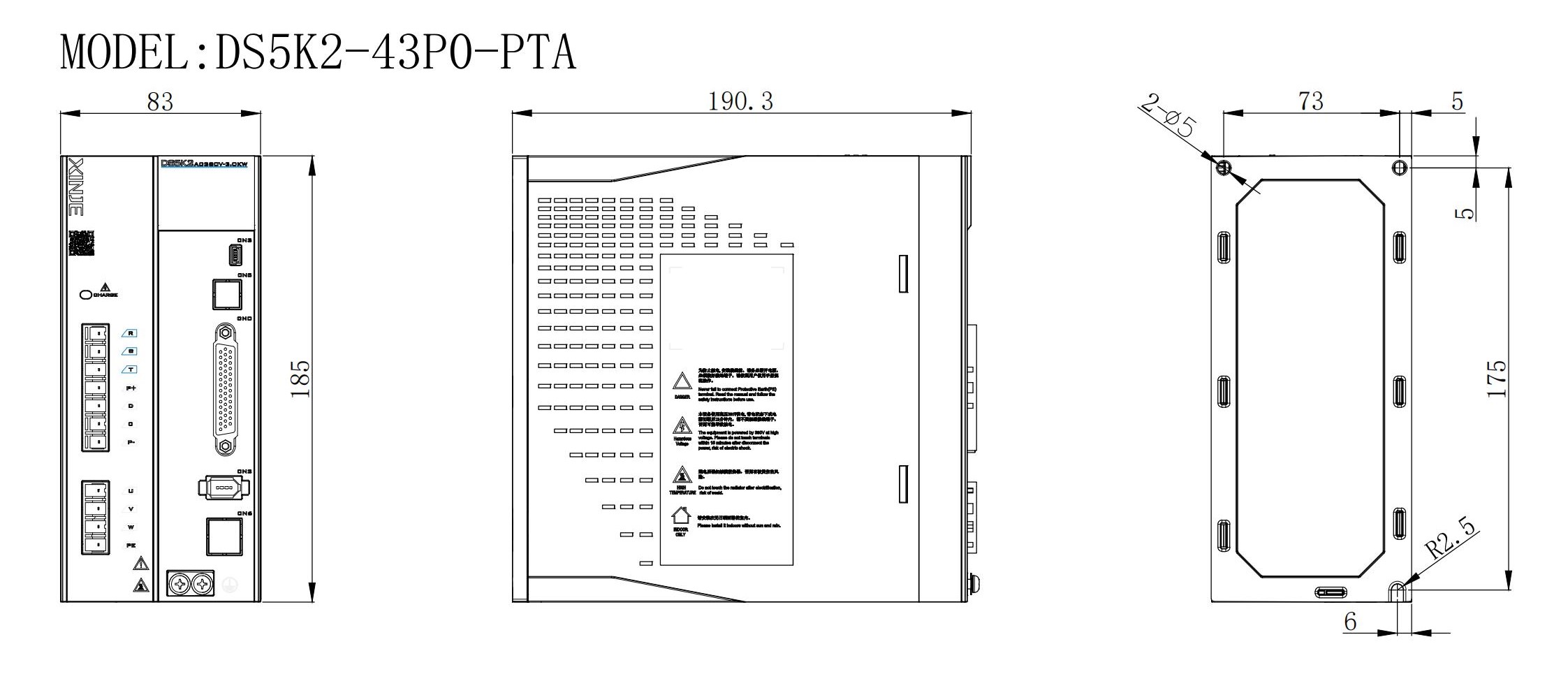

Dimensions （mm)
DS5K2-43P0-PTA
¥4,000.00

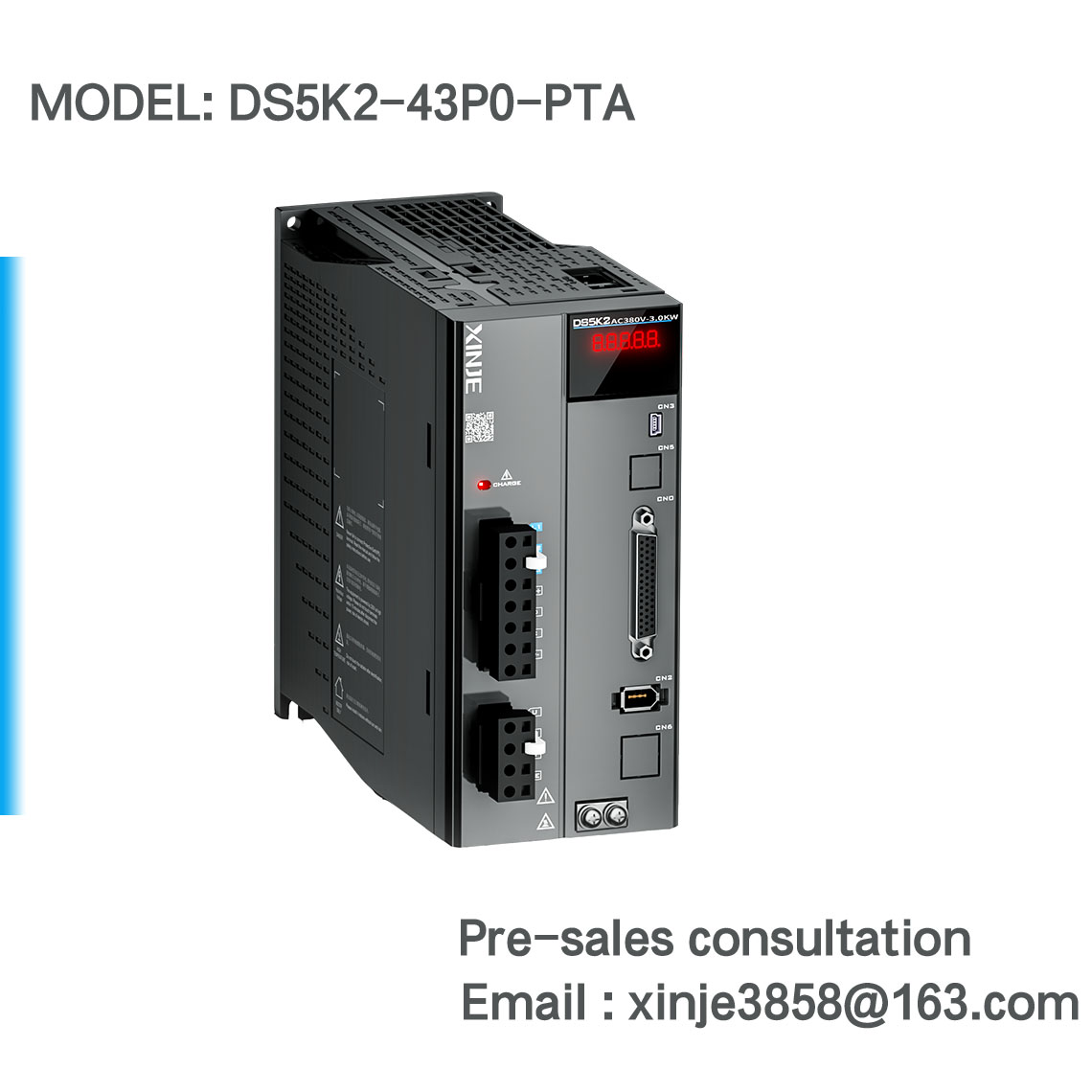

DS5K2 full function servo driver
DS5K2 series 3.0KW servo driver, with a power supply voltage of 3-phase AC380V,Support analog input, supports 8 DI and 6 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 2.2kg
Packaged Dimensions : 24*24*14 (cm)
- Description
- Specifications
- Real-shot
- Connect to PC
- Naming rule
- DS5K2 series
- 3D/CAD/ELPAN
- User Manual
- Software
| parameter | DS5K2-43P0-PTA Specification |
| Power(kW) | 3.0kW |
| Input power supply | Three phase AC380~440V 50/60Hz |
| Output current (A) | 11.0A |
| Dynamic brake | √ |
| STO | × |
| DI | 8 |
| DO | 6 |
| RS232 | √ |
| RS485 | √ |
| Bus | × |
| Pulse | √ |
| Pulse 5V | √ |
| Pulse 24V | √ |
| Full closed loop | × |
| Analog input | √ |
| Encoder differential feedback | √ |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | 60Ω 80W |
| External brake resistor | 50-75Ω above 1200W |
| Authentication | – |
| Product Dimensions | 83*185*190.3(mm) |
| Packaged Dimensions | 24*24*14(cm) |
| Weight(kg) | 2.2kg |
Servo software
DS3&DS5 series servo drive host computer debugging software XinjeServo V2.16.rar
