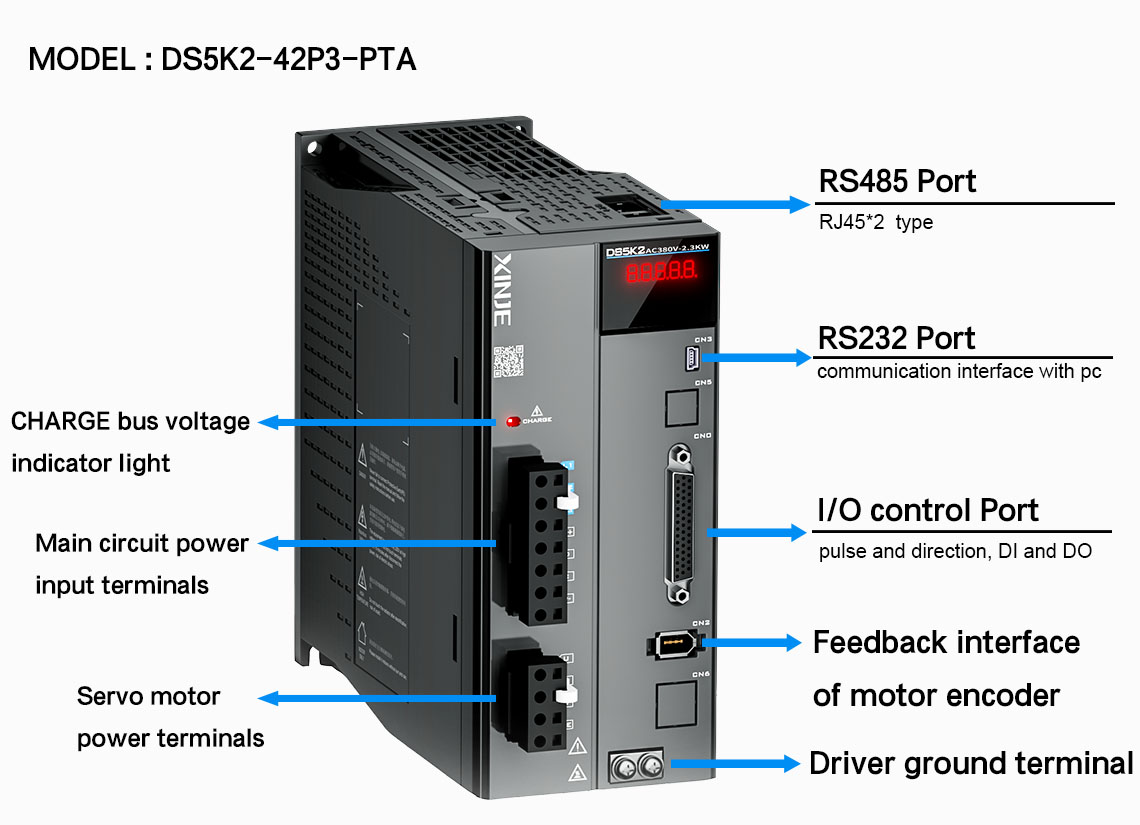

Interface diagram

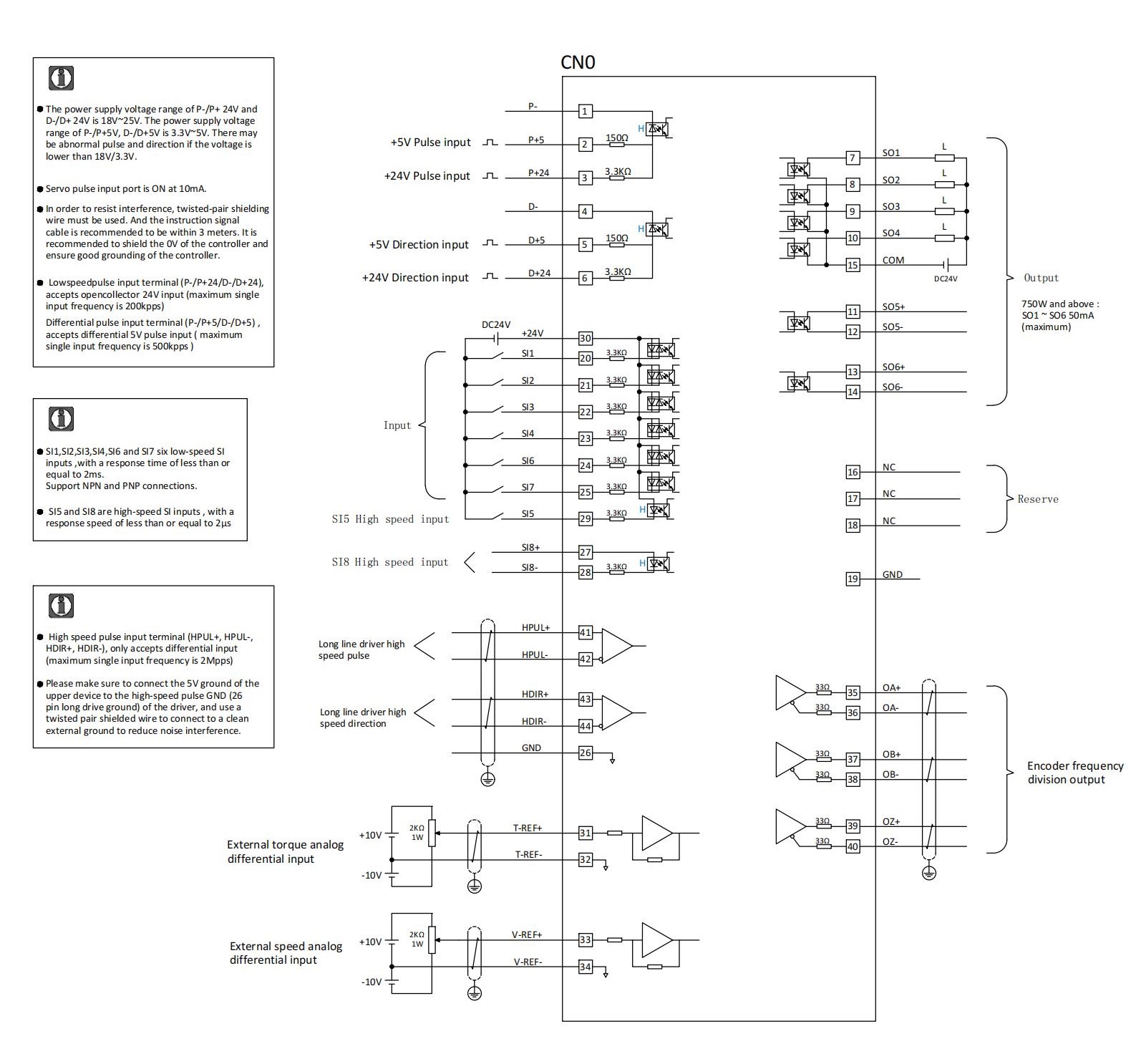

Wiring schematic

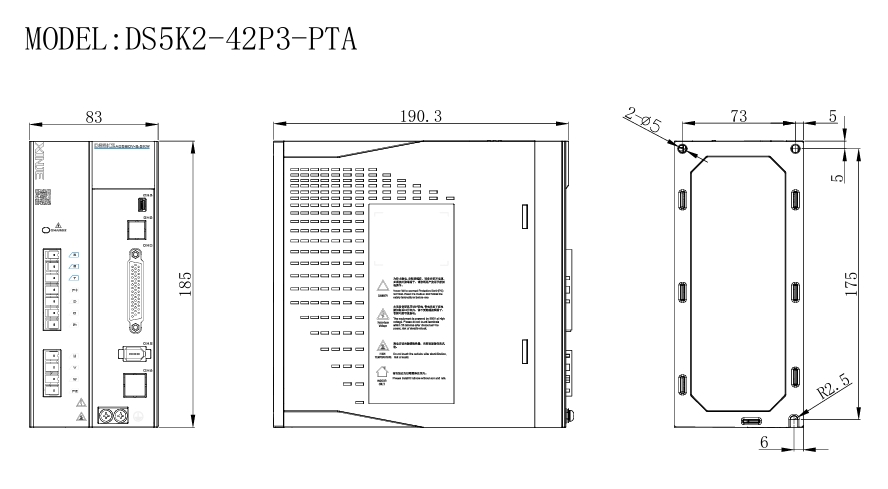

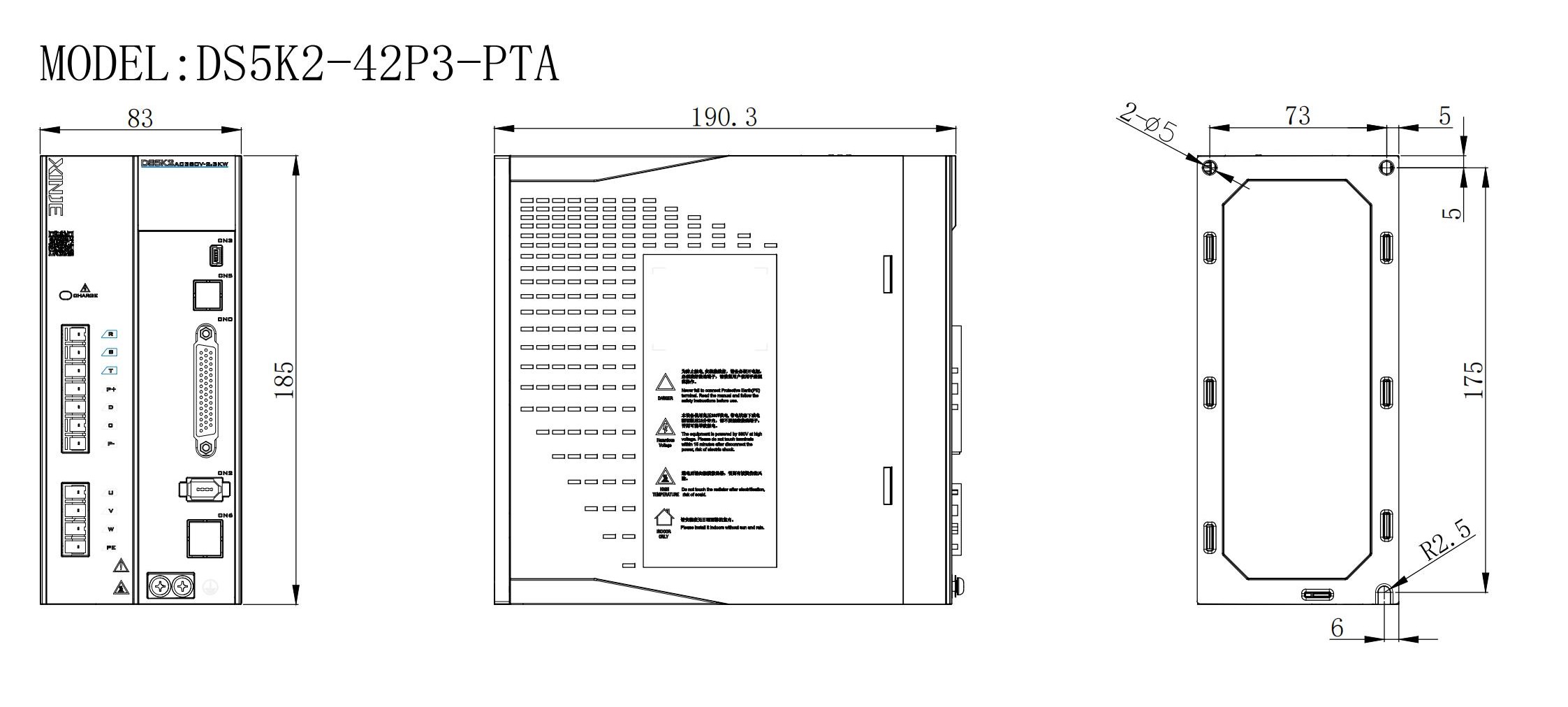

Dimensions （mm)

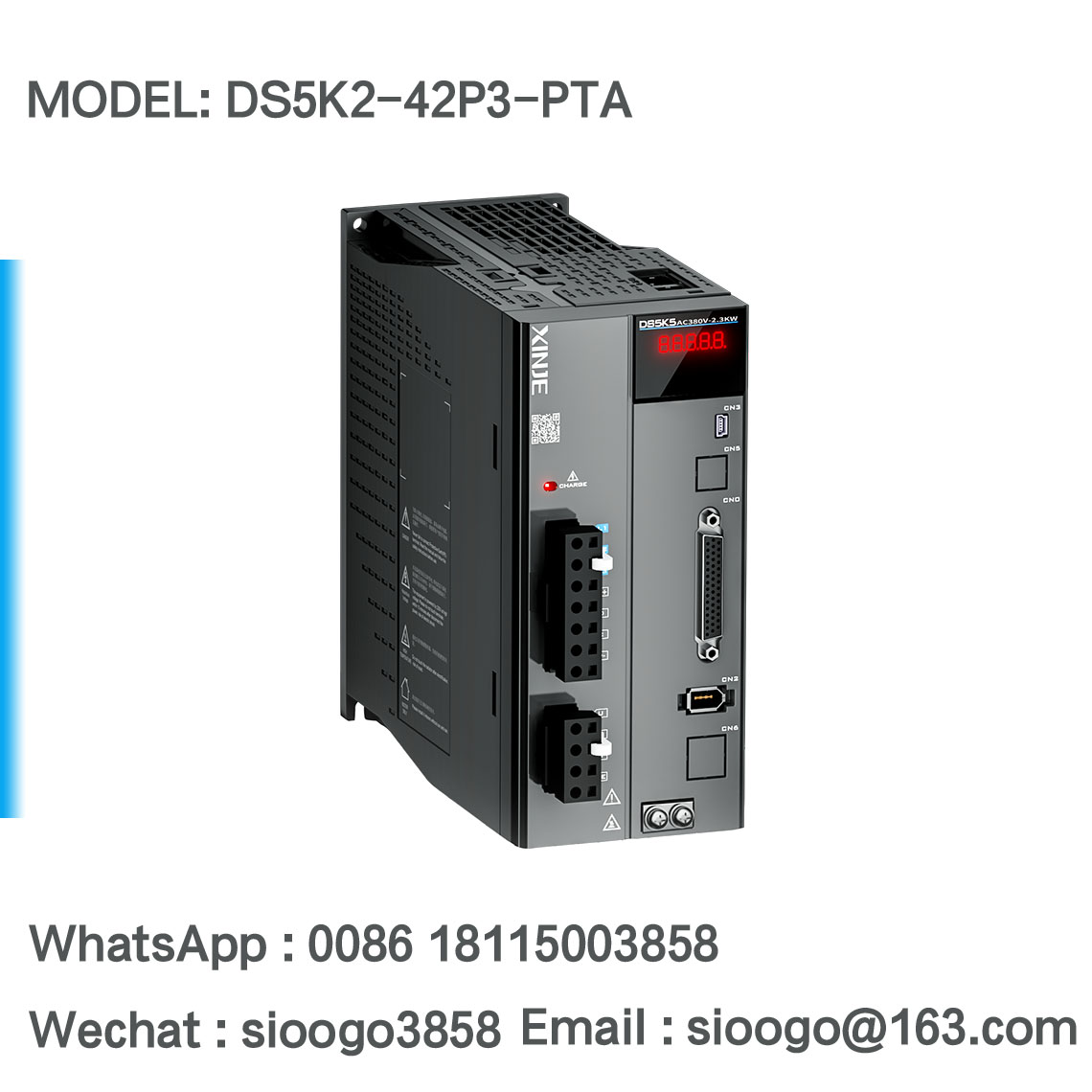

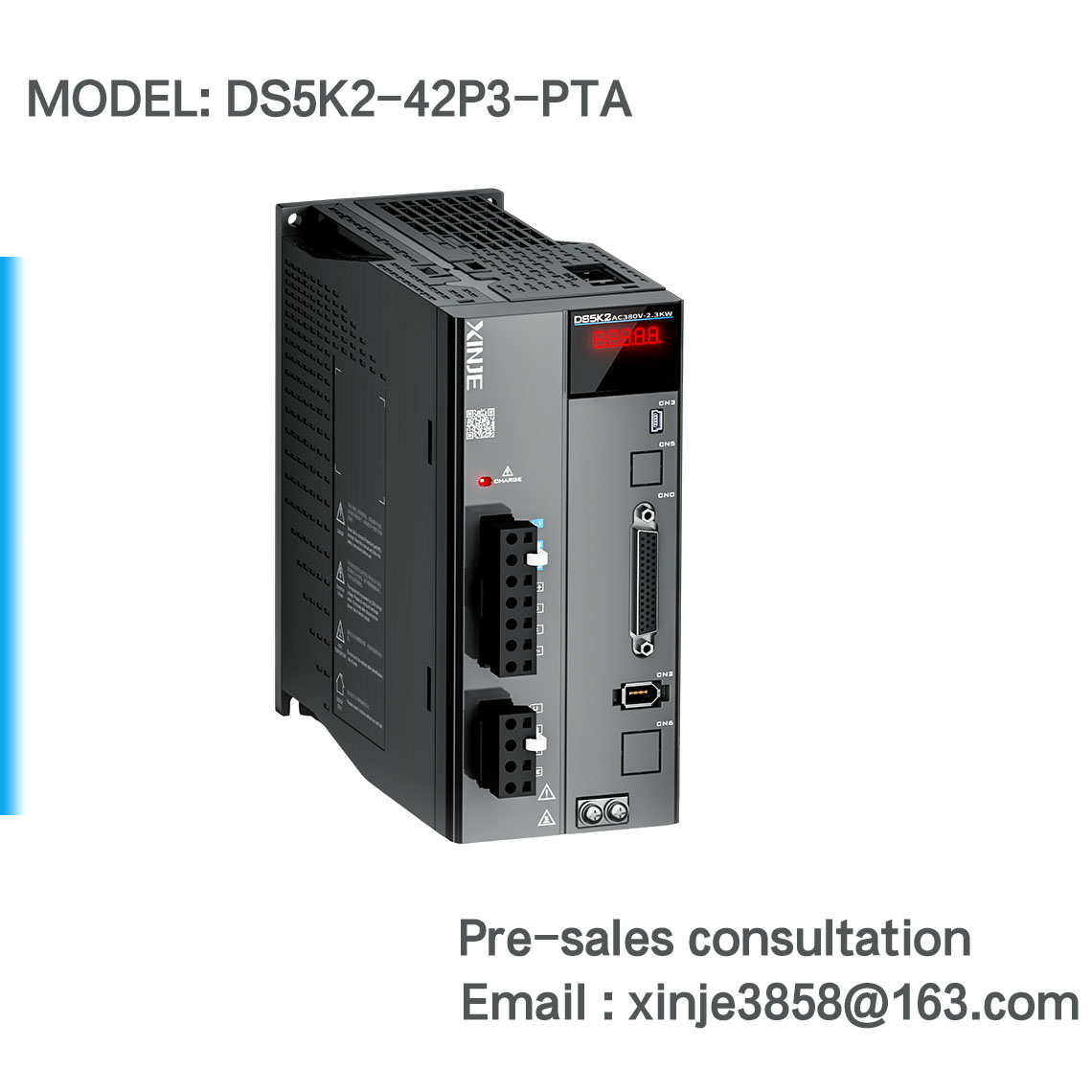

DS5K2-42P3-PTA
¥3,500.00
DS5K2 full function servo driver
DS5K2 series 2.3KW servo driver, with a power supply voltage of 3-phase AC380V,Support analog input, supports 8 DI and 6 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 2.2 kg
Packaged Dimensions : 240*240*140 (mm)
- Description
- Specifications
- Real-shot
- Connect to PC
- Naming rule
- DS5K2 series
- Func differences
- Software
| parameter | DS5K2-42P3-PTA Specification |
| Power(kW) | 2.3kW |
| Input power supply | Three phase AC380~440V 50/60Hz |
| Output current (A) | 8.5A |
| Dynamic brake | √ |
| STO | × |
| DI | 8 |
| DO | 6 |
| RS232 | √ |
| RS485 | √ |
| Bus | × |
| Pulse | √ |
| Pulse 5V | √ |
| Pulse 24V | √ |
| Full closed loop | × |
| Analog input | √ |
| Encoder differential feedback | √ |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | 60Ω 80W |
| External brake resistor | 55-75Ω above 1000W |
| Authentication | – |
| Shell material | |
| Weight(kg) | 2.146kg |
| Product Dimensions | 83*185*190.3(mm) |
| Packaged Dimensions | 240*240*140(mm) |
Servo software
DS5 series servo software v2.14
