MS6G-130TH15BZ2-41P5

Name: MS6G-130TH15BZ2-41P5
Brand: XINJE
SKU: 2171
Price: 4600.00 CNY
Availability: InStock

¥4,600.00

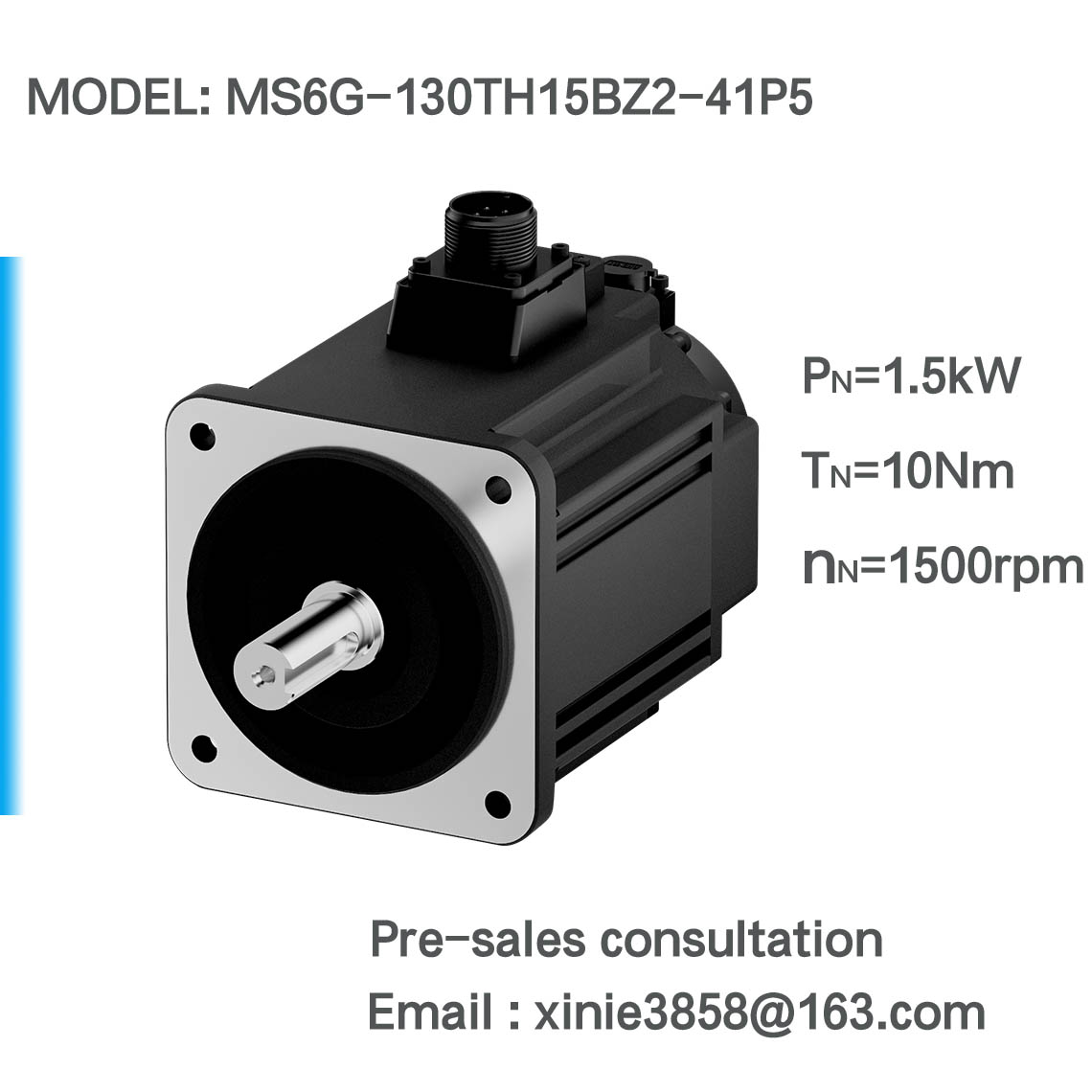

MS6G series 130 flange servo motor

XINJE servo motor, 1.5KW(with brake) ,10Nm, 1500 rpm, medium inertia, AC380V, Encoder accuracy 23 bits, protection level IP67;

Weight : 9.6 kg

Packaged Dimensions : 33*18*23 (cm)

Category: Servo Motor Brand: XINJE

model		MS6G-130TH15BZ2-41P5
Motor code		A953
Power		1.5[kW]
Voltage level		380VAC
Inertia type		Medium
Rotor inertia		19670.0 [10^-7kg.m²]
Rated speed		1500 [rpm]
Max speed		3000 [rpm]

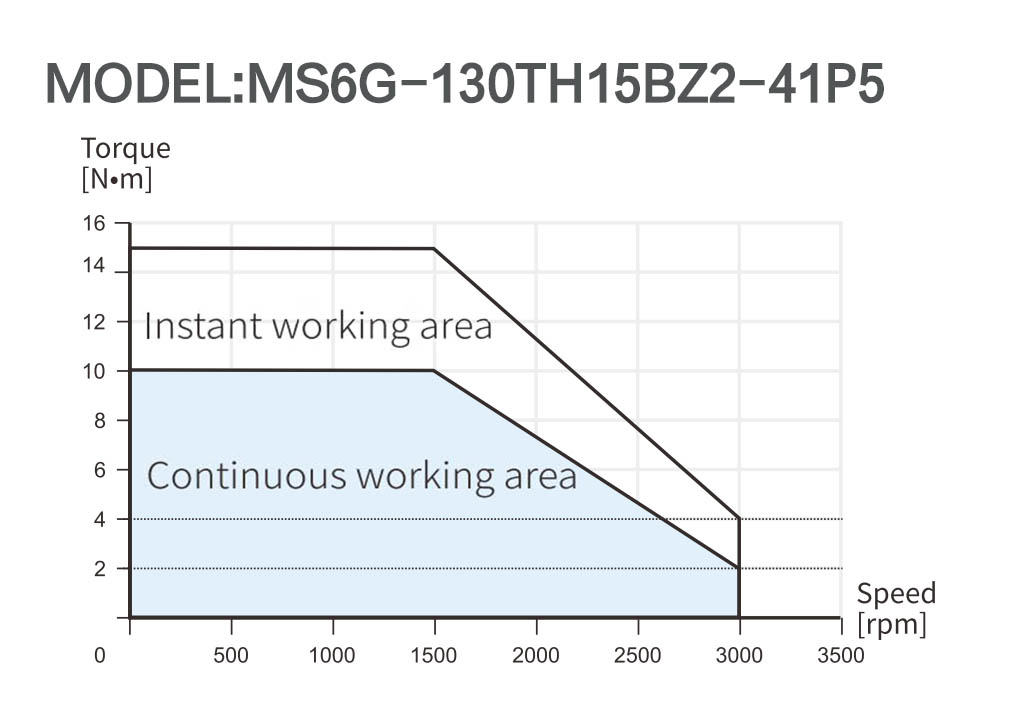

Rated torque		10.0[Nm]
Max torque		25.0[Nm]
Rated current		5.7[A]
Max current		14.25[A]
Overload capacity		2.5
Recommended rotor inertia ratio		10
Electrical constant e		12.43[ms]
Mechanical constant m		1.25[ms]
Back EMF constant Ke		163[mV/rpm]
Torque constant Kt		1.75[Nm/A]
Pole pairs		5
Encoder type		optical
Encoder bits		23
Motor insulation grade		ClassF(155℃)
Protection level		IP67
using environment	Ambient temperature	-10℃~+40℃(not frozen)
	Ambient humidity	Relative humidity < 90%（non condensing)
with brake		✓
Braking parameters	Static friction torque	≥15[Nm]
	Rated power	16.9[W]
	Attraction time	≤100[ms]
	Release time	≤60[ms]
	Excitation current DC	0.705[A]
	Attraction voltage DC	≤16.8[V]
	Discharge voltage DC	≥1[V]
	Excitation current DC	DC24±10％[V]

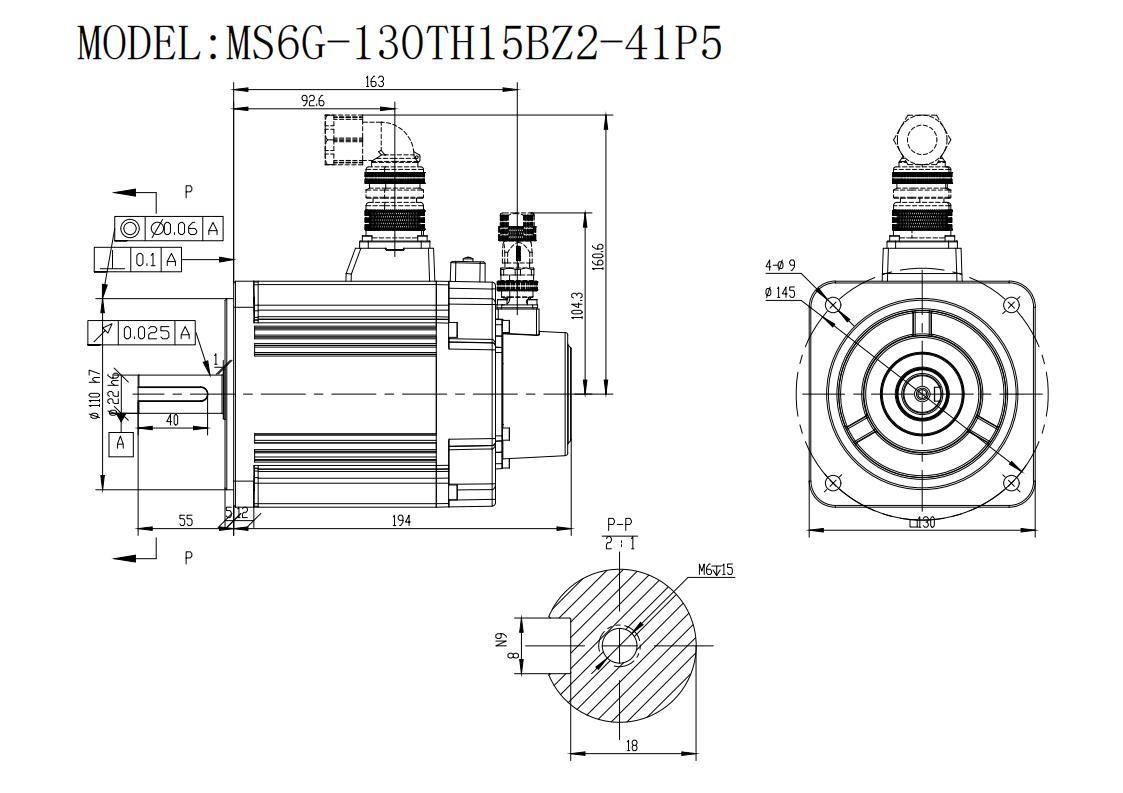

Dimensions （mm)

A complete servo system needs to consist of four components: servo motor, servo driver, encoder cable, and power cable.
servo motor	servo driver	encoder cable	power cable

Recommend compatible drivers
Control method	Pulse-type:DS5L2-41P5-PTA	EtherCAT-type:DS5C2-41P5-PTA	Analogue-type :DS5K2-41P5-PTA
product drawing
Introduction	Pulse type servo driver, 1.5KW, RS485, supports 5V or 24V pulses,3-phase AC380V power input, 5 DI and 3 DO.	EtherCAT bus type 1.5KW servo driver, 3-phase AC380V power input, 5 DI and 3 DO.	Full-featured servo drive, 1.5KW, RS485, supports ± 10V analog input,supports 5V or 24V pulses,3-phase AC380V power input, 8 DI and 6 DO.

Other compatible drivers
DS5K5-41P5-PTA	Enhanced servo driver,1.5KW, RS485, ±10V analog input, AC380V.
DS5C2-41P5-PTA-FH	High protection,EtherCAT bus type servo driver, 1.5KW ,AC380V.
DS5C2-41P5-PTA-FS	With STO,EtherCAT bus type servo driver,1.5KW,AC380V.

Cable configuration
Flexibility of cables	Encoder cable （03 represents 3m）		Power cable （03 represents 3m）
	With battery box	Without battery box	Power cable （03 represents 3m）

Ordinary	CP-SCT-B-03	CP-SCT-M-03	CM-L15T-03
Ordinary
High flexibility	CPT-SCT-B-03	CPT-SCT-M-03	CMT-L15T-03
High flexibility
Instructions: 1. The number after the cable model represents the number of meters. The standard meters are: 02, 03, 05, 06, 08, 10, 12, 16, 20; 2. For servo drives that require position memory after power failure, please choose encoder cables with battery packs.
