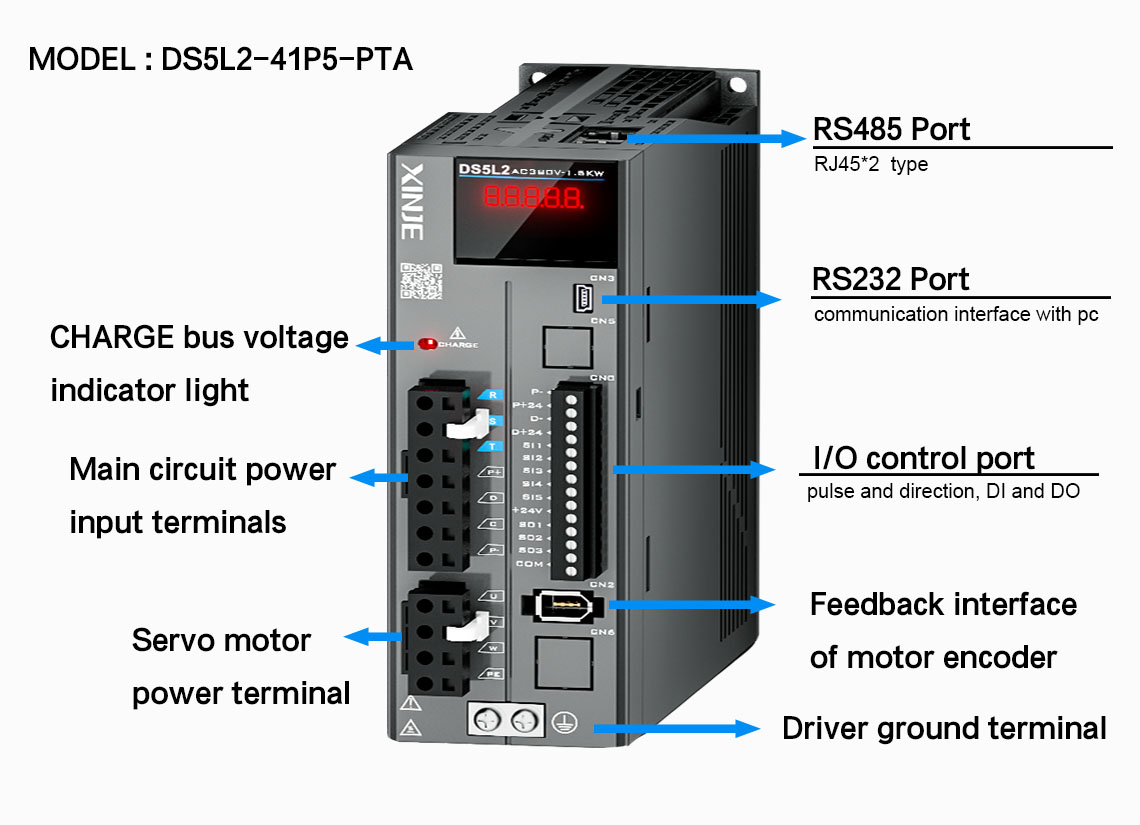

Interface diagram

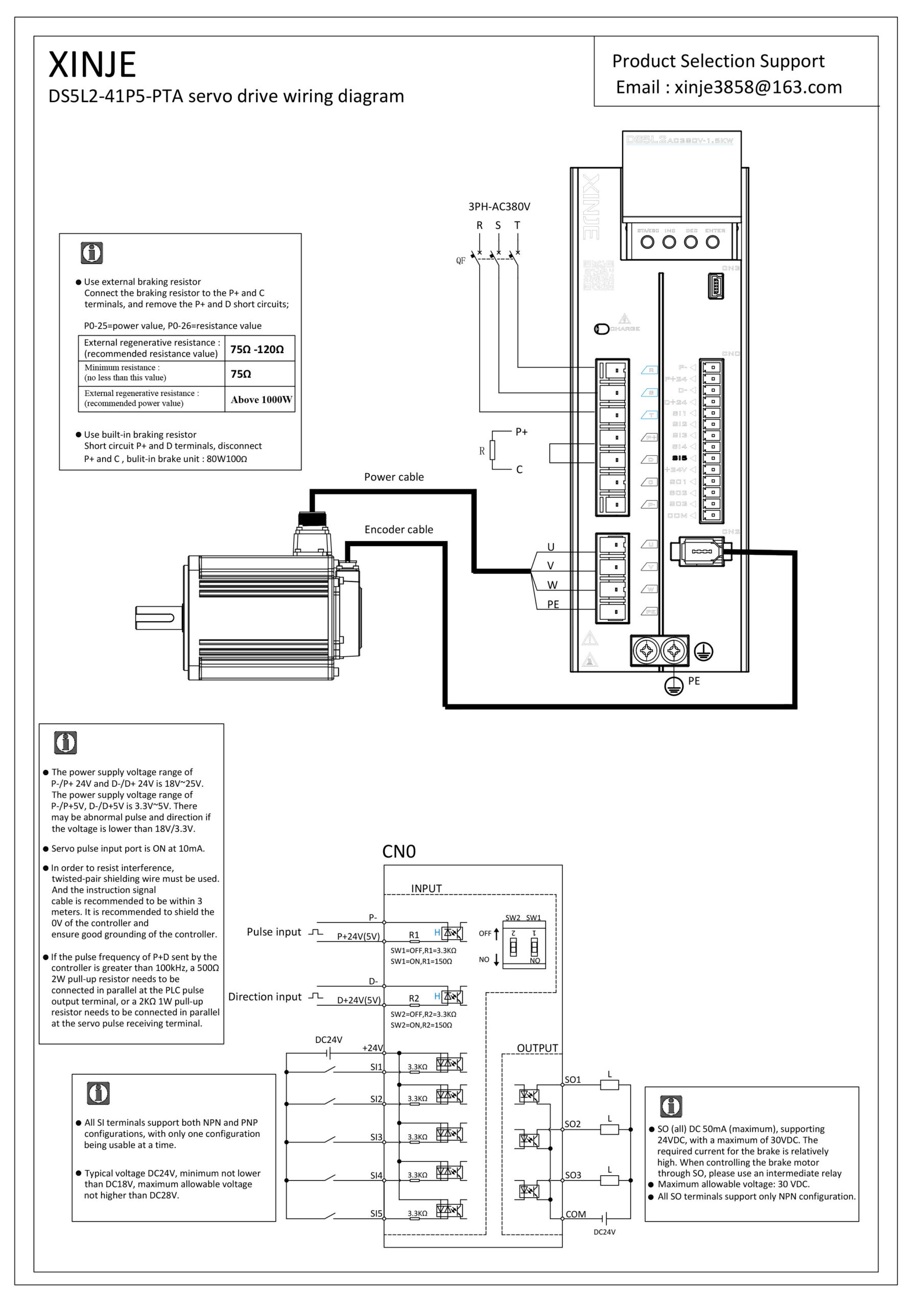

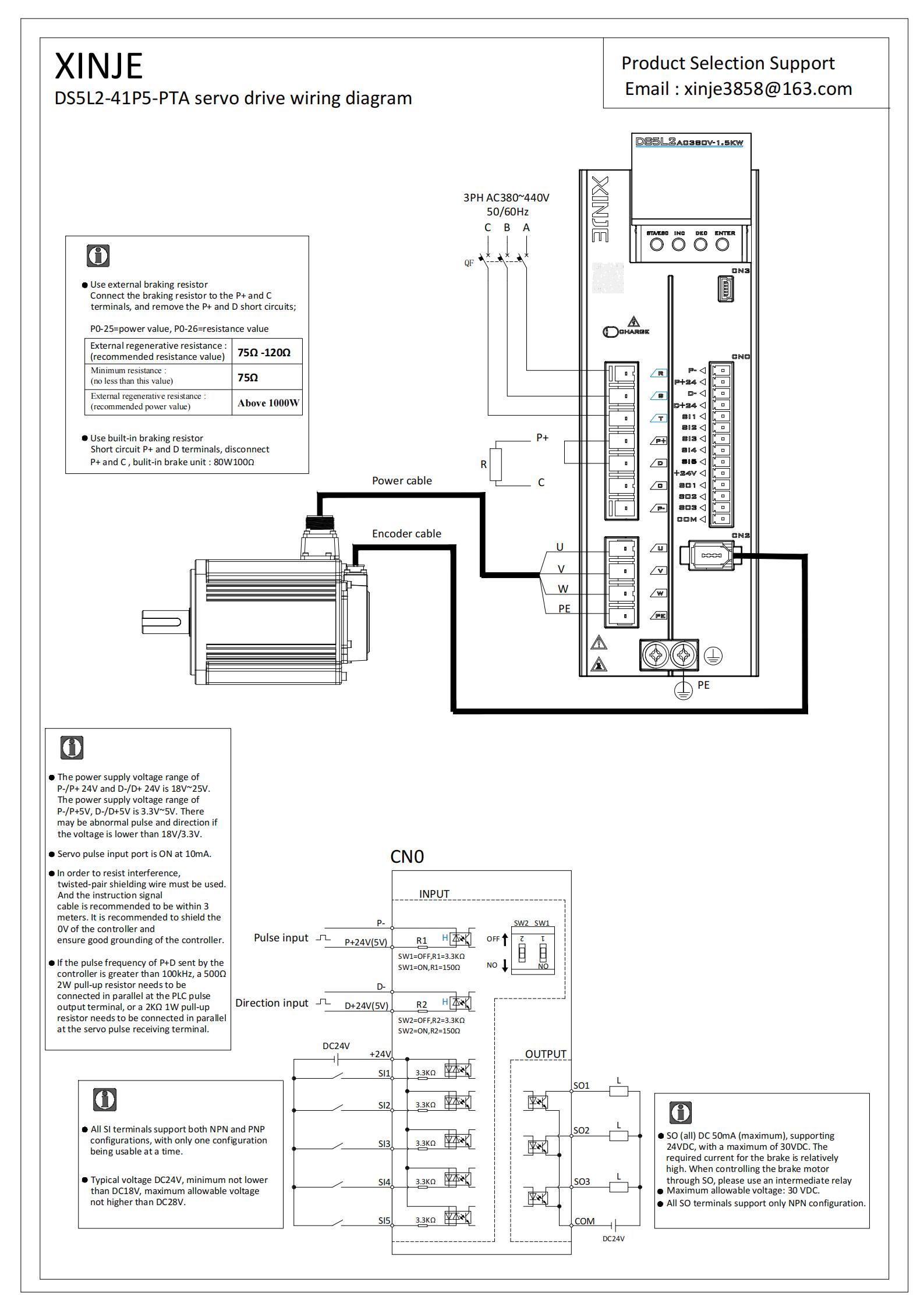

Wiring schematic

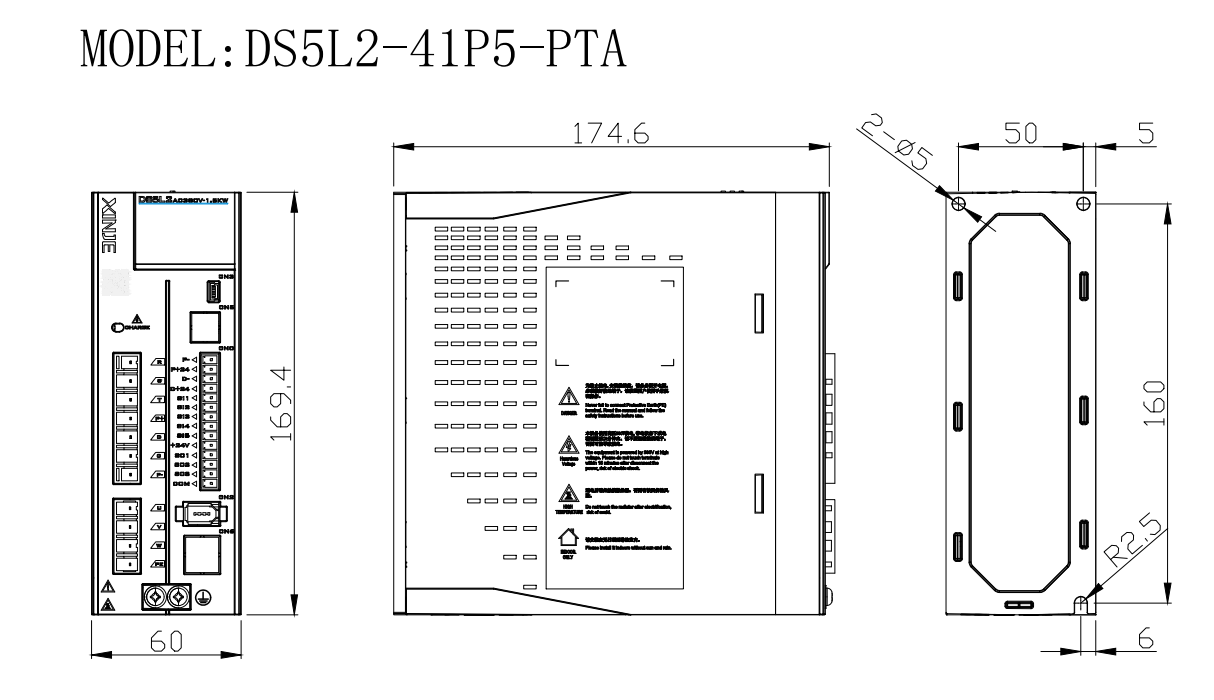

Dimensions （mm)

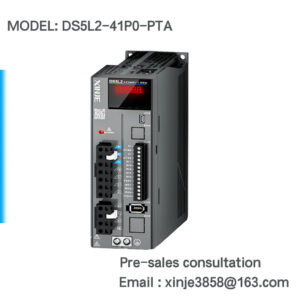

DS5L2-41P5-PTA
¥3,000.00

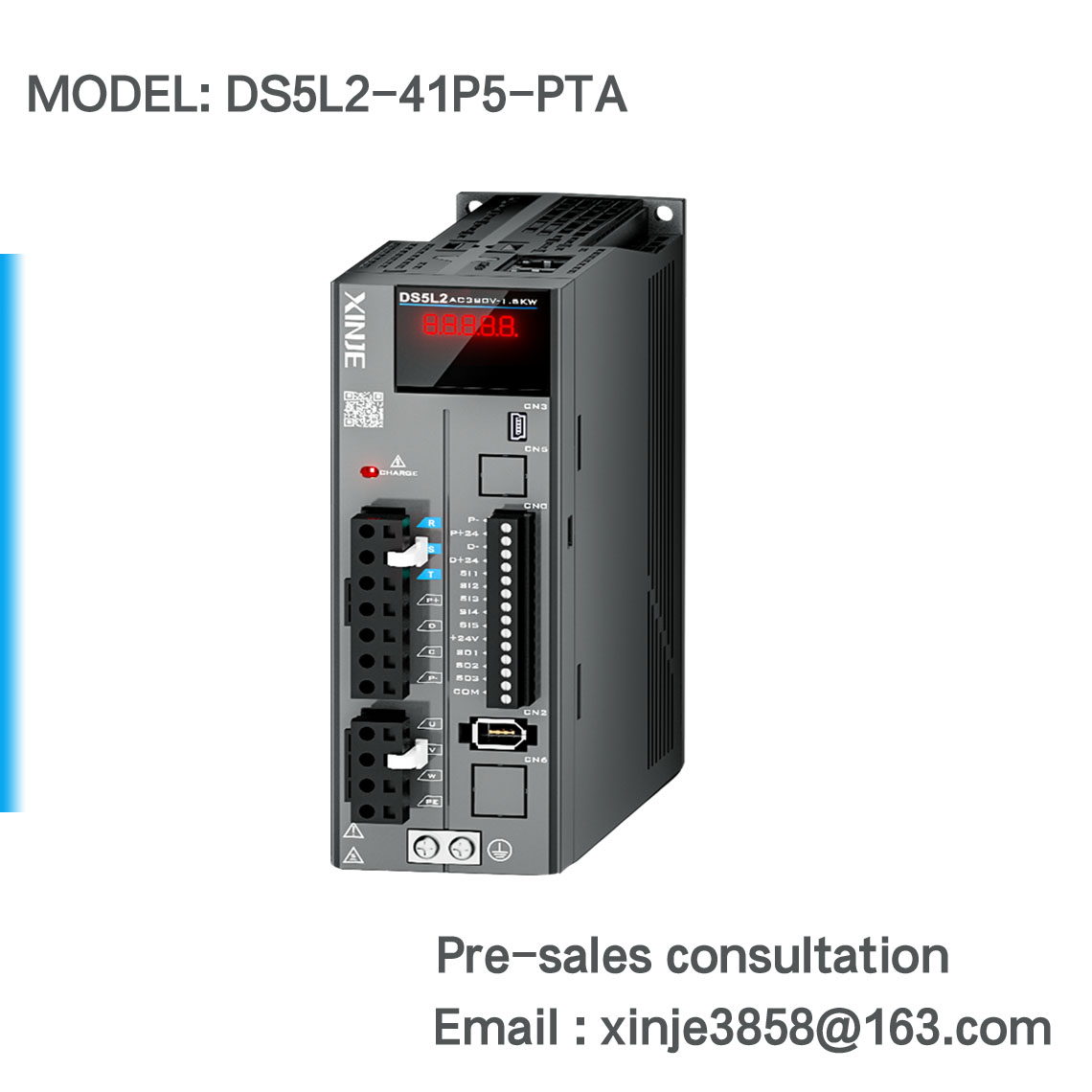

DS5L2 pulse servo driver
DS5L2 series pulse type 1.5KW servo driver, with a power supply voltage of 3-phase AC380V, supports 5 DI and 3 DO, and supports three control modes: position control, speed control, and torque control.
Weight :1.5 kg
Packaged Dimensions : 22.5*22.5*11.5(cm)
- Description
- Specifications
- Real-shot
- Connect to PC
- Naming rule
- DS5L2 series
- 3D/CAD/ELPAN
- User Manual
- Software
| parameter | DS5L2-41P5-PTA Specification |
| Power(kW) | 1.5kW |
| Input power supply | Three phase AC380~440V 50/60Hz |
| Output current (A) | 5.5A |
| Dynamic brake | √ |
| STO | × |
| DI | 5 |
| DO | 3 |
| RS232 | √ |
| RS485 | √ |
| Bus | × |
| Pulse | √ |
| Pulse 5V | √ |
| Pulse 24V | √ |
| Full closed loop | × |
| Analog input | × |
| Encoder differential feedback | × |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | 100Ω 80W |
| External brake resistor | 75-120Ω above 1000W |
| Authentication | – |
| Shell material | |
| Weight(kg) | 1.521kg |
| Product Dimensions | 60*169.4*174.6(mm) |
| Packaged Dimensions | 225*225*115(mm) |
