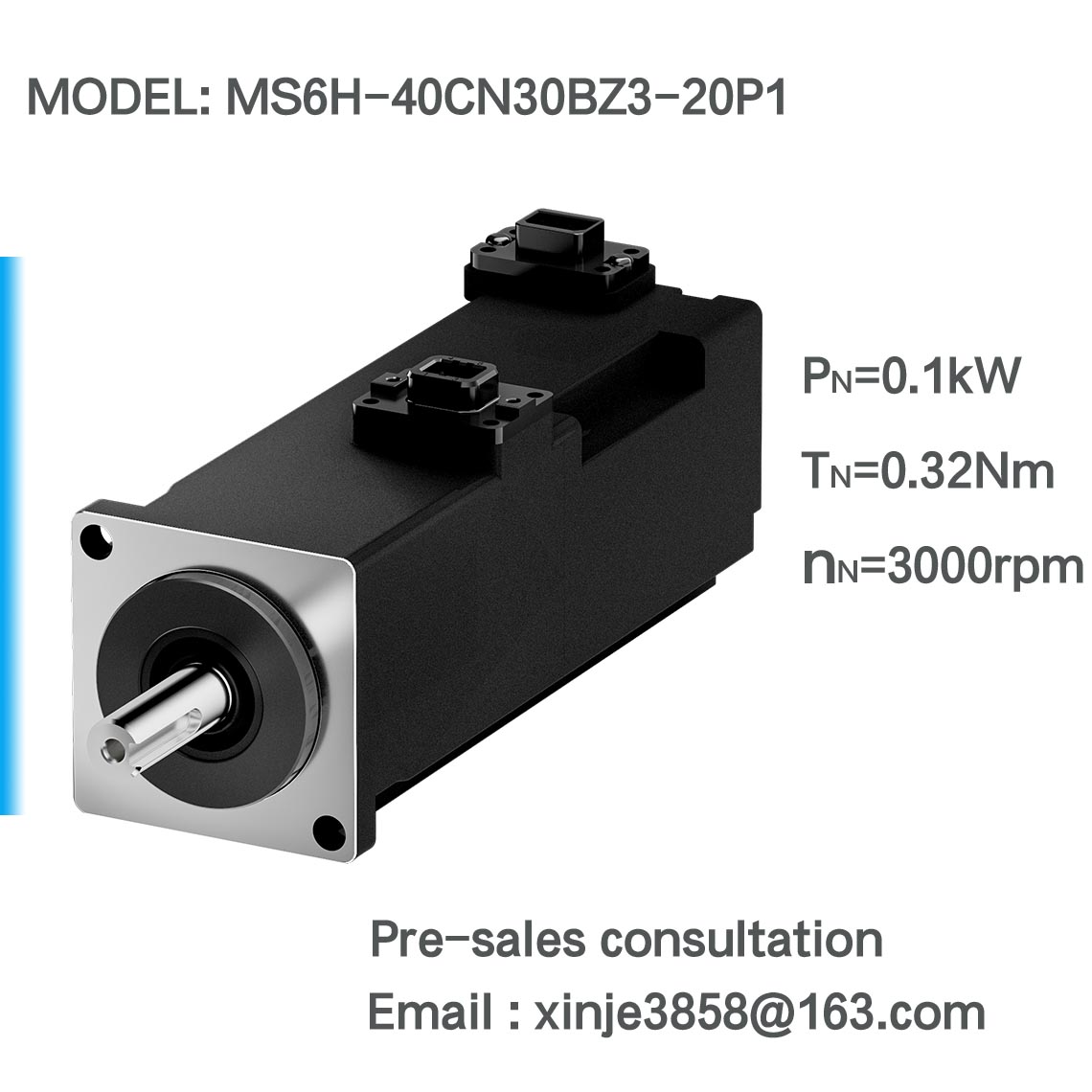

MS6H-40CN30BZ3-20P1

Name: MS6H-40CN30BZ3-20P1
Brand: XINJE
SKU: 2913
Price: 1970.00 CNY
Availability: InStock

¥1,970.00

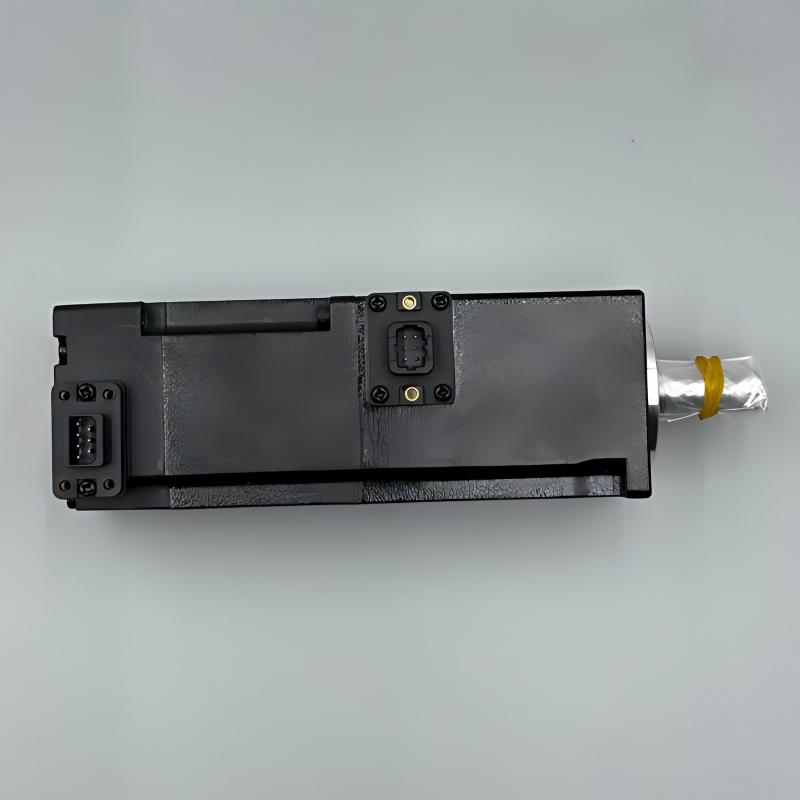

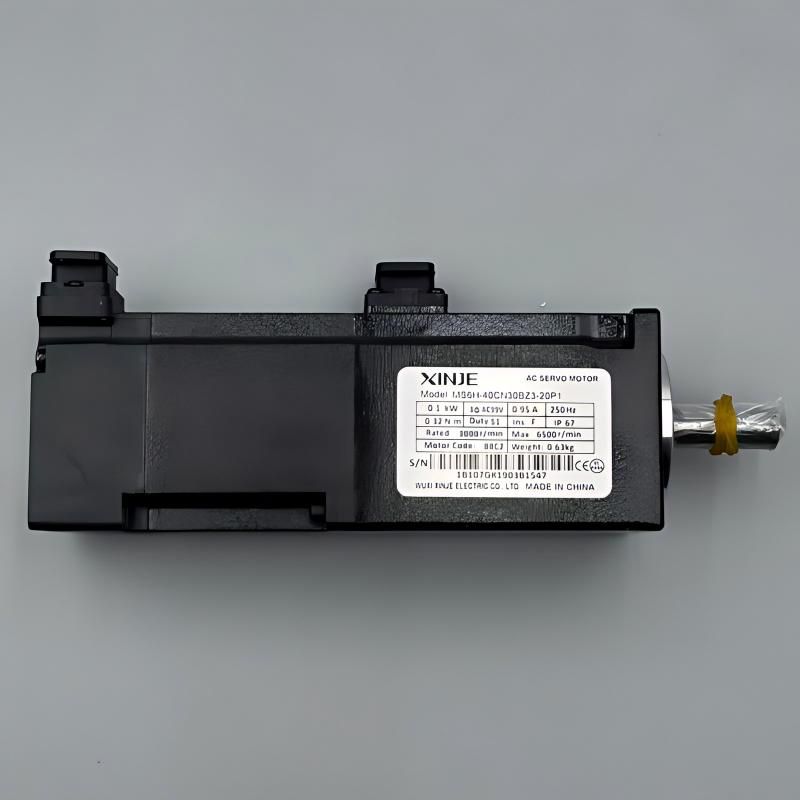

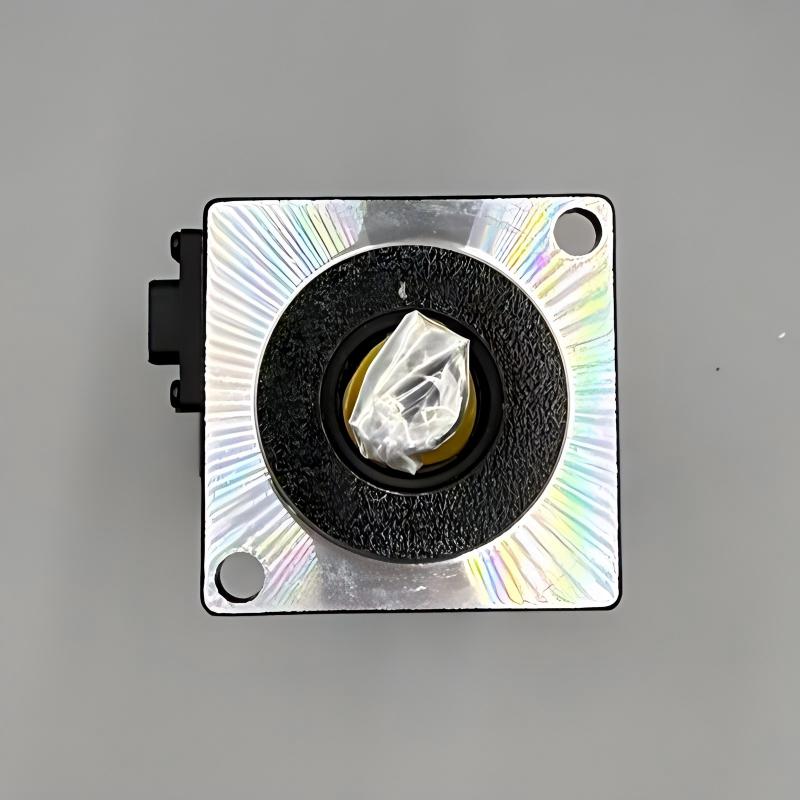

MS6H series 40 flange servo motor

XINJE servo motor, 100W(with brake), 0.32Nm, 3000rpm, high inertia, AC220V, Encoder accuracy 19 bits, protection level IP67;

Weight : 1.0 kg

Packaged Dimensions : 20*12*7 (cm)

Category: Servo Motor Brand: XINJE

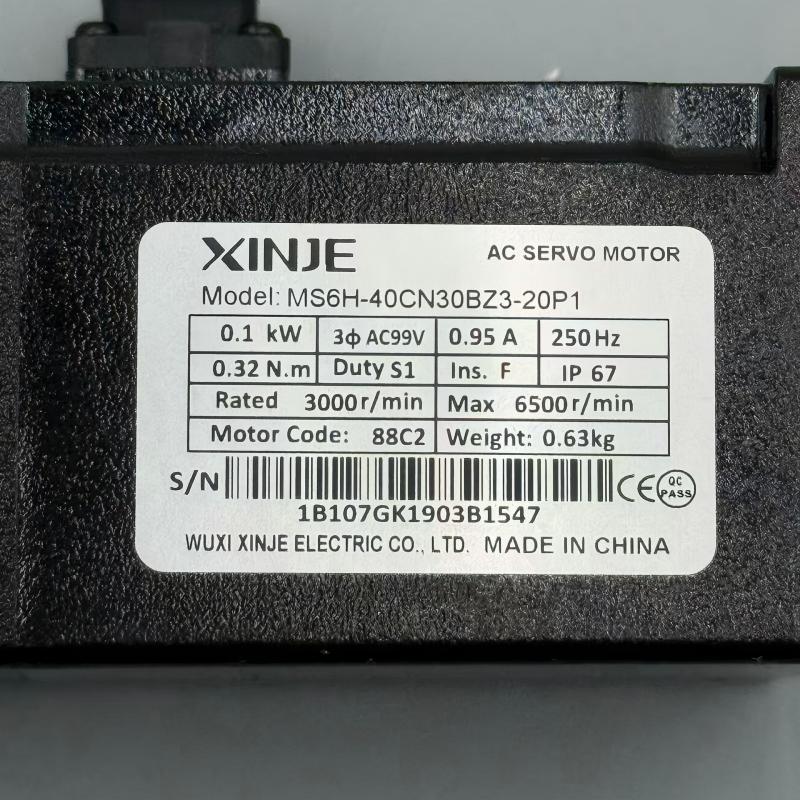

model		MS6H-40CN30BZ3-20P1
Motor code		88C2
Power		0.1[kW]
Voltage level		220VAC
Inertia type		High
Rotor inertia		67.0 [10^-7kg.m²]

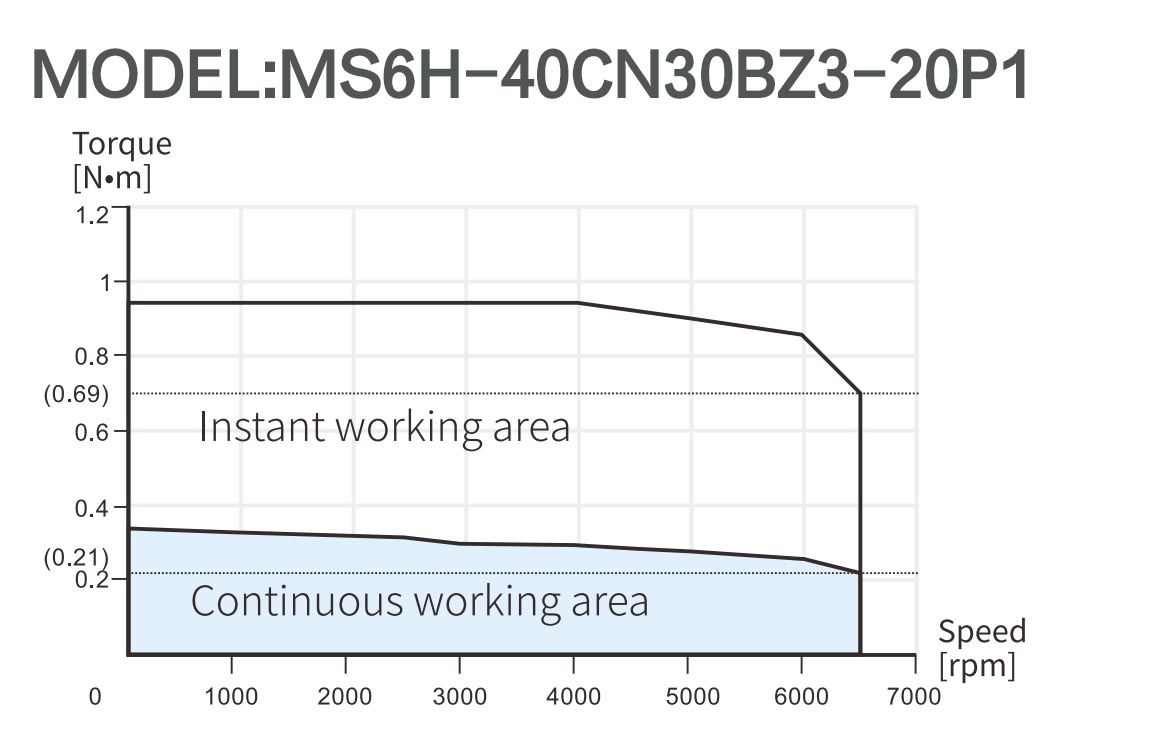

Rated speed		3000 [rpm]
Max speed		6500 [rpm]
Rated torque		0.32[Nm]
Max torque		0.96[Nm]
Rated current		0.95[A]
Max current		2.85[A]
Overload capacity		3
Recommended rotor inertia ratio		30
Electrical constant e		1.04[ms]
Mechanical constant m		1.21[ms]
Back EMF constant Ke		33[mV/rpm]
Torque constant Kt		0.34[Nm/A]
Pole pairs		5
Encoder type		Magnetic
Encoder bits		19
Motor insulation grade		ClassF(155℃)
Protection level		IP67
using environment	Ambient temperature	-10℃~+40℃(not frozen)
	Ambient humidity	20%~90%RH（non condensing)
with brake		✓
Braking parameters	Static friction torque	≥0.32[Nm]
	Rated power	6.1[W]
	Attraction time	≤40[ms]
	Release time	≤20[ms]
	Excitation current DC	0.245[A]
	Attraction voltage DC	≤16.8[V]
	Discharge voltage DC	≥1[V]
	Excitation current DC	DC24±10％[V]

Dimensions （mm)

A complete servo system needs to consist of four components: servo motor, servo driver, encoder cable, and power cable.
servo motor	servo driver	encoder cable	power cable

Recommend compatible drivers
Control method	Pulse-type:DS5L2-20P1-PTA	EtherCAT-type:DS5C2-20P1-PTA	Analogue-type :DS5K2-20P1-PTA

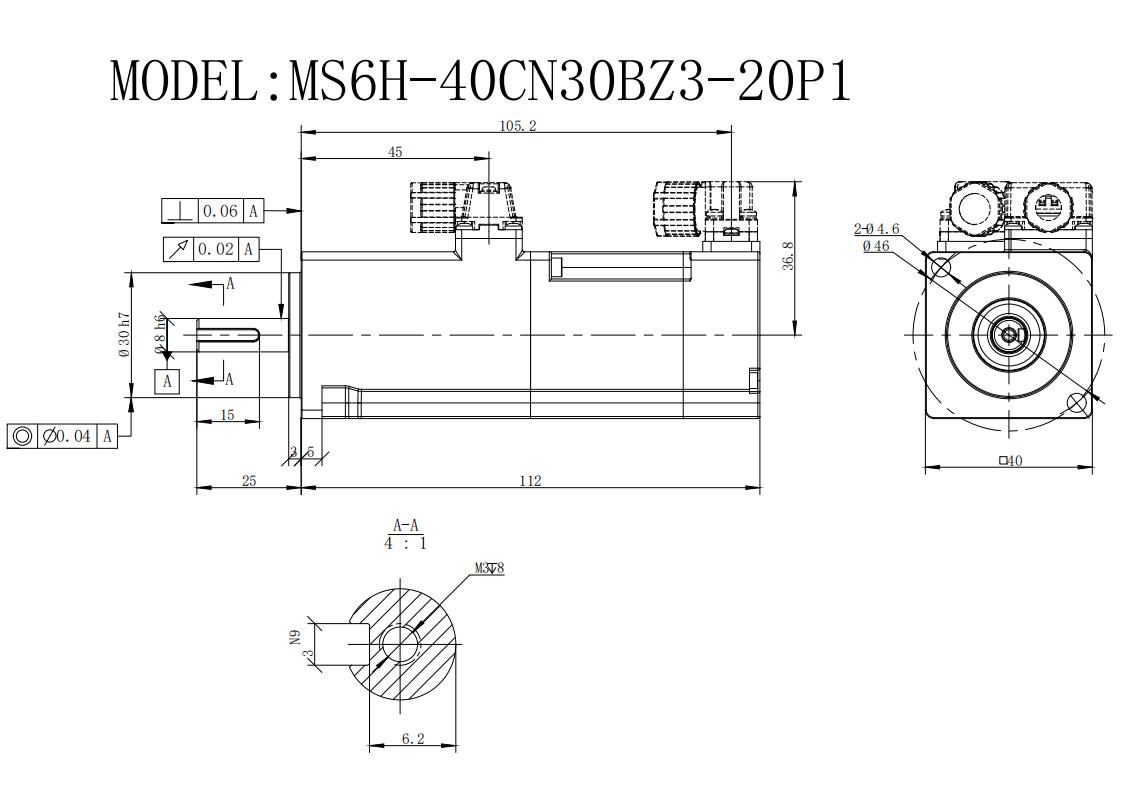

product drawing
Introduction	Pulse type servo driver, 100W, RS485, supports 5V or 24V pulses,1-phase AC220V power input, 3 DI and 3 DO.	EtherCAT bus type 100W servo driver, 1-phase AC220V power input, 3 DI and 3 DO.	Full-featured servo drive,100W, RS485, supports ± 10V analog input,supports 5V or 24V pulses, 1-phase AC220V power input, 8 DI and 6 DO.

Other compatible drivers
DS5K5-20P1-PTA	Enhanced servo driver,100W, RS485, ±10V analog input, AC220V.
DS5C2-20P1-PTA-FH	High protection,EtherCAT bus type servo driver, 100KW ,AC220V.
DS5C2-20P1-PTA-FS	With STO,EtherCAT bus type servo driver,100W,AC220V.

Cable configuration
Flexibility of cables		Encoder cable （03 represents 3m）		Power cable （03 represents 3m）
		With battery box	Without battery box	Power cable （03 represents 3m）

front cable outlet	Ordinary	CP-SE-BM-03	CP-SE-M-03	CMB-E03A-03
	Ordinary
	High flexibility	CPT-SE-BM-03	CPT-SE-M-03	CMBT-E03A-03
	High flexibility
	Oil-resistant	CPG-SE-BM-03	CPG-SE-M-03	CMBG-E03A-03
	Oil-resistant
rear cable outlet	Ordinary	CP-SF-BM-03	CP-SF-M-03	CMB-F03A-03
	Ordinary
	High flexibility	CPT-SF-BM-03	CPT-SF-M-03	CMBT-F03A-03
	High flexibility
	Instructions: 1. The number after the cable model represents the number of meters. The standard meters are: 02, 03, 05, 06, 08, 10, 12, 16, 20; 2. For servo drives that require position memory after power failure, please choose encoder cables with battery packs.
