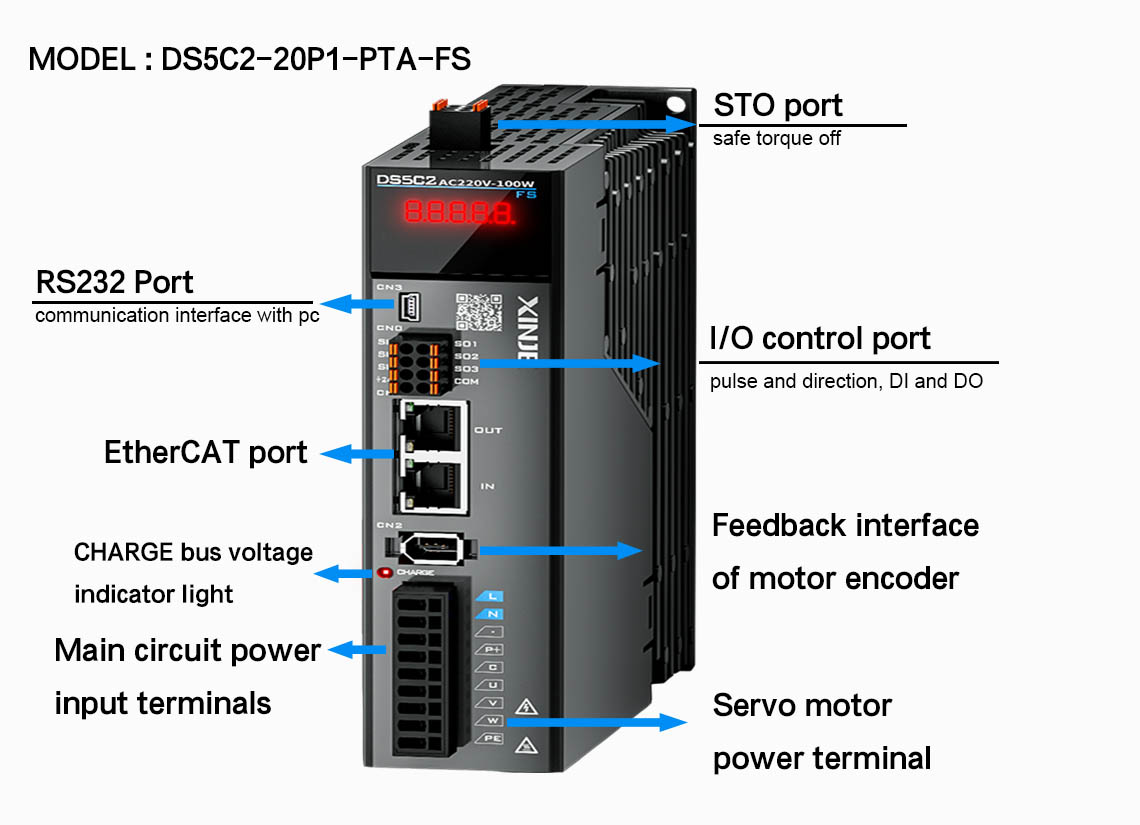

Interface diagram

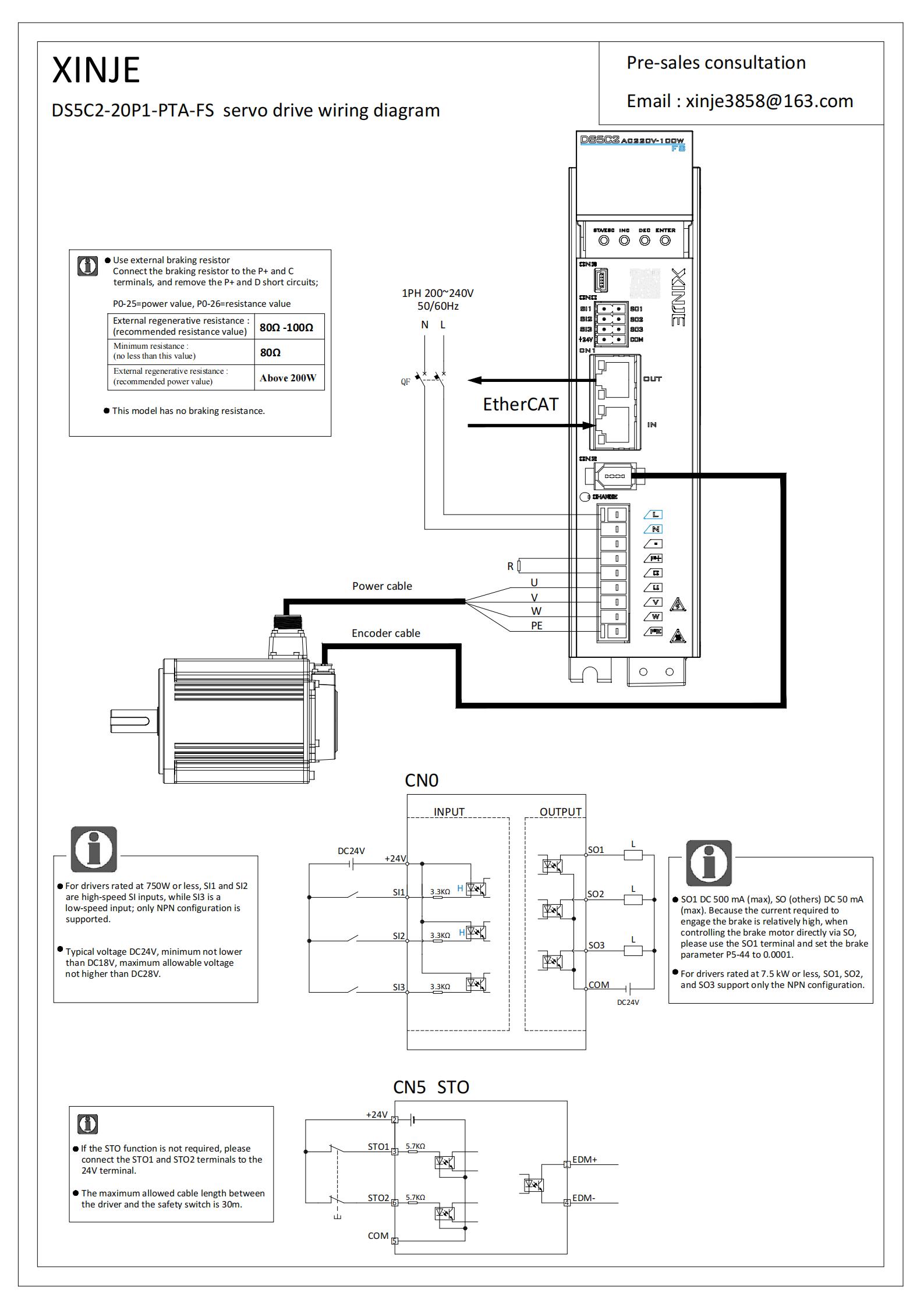

Wiring schematic

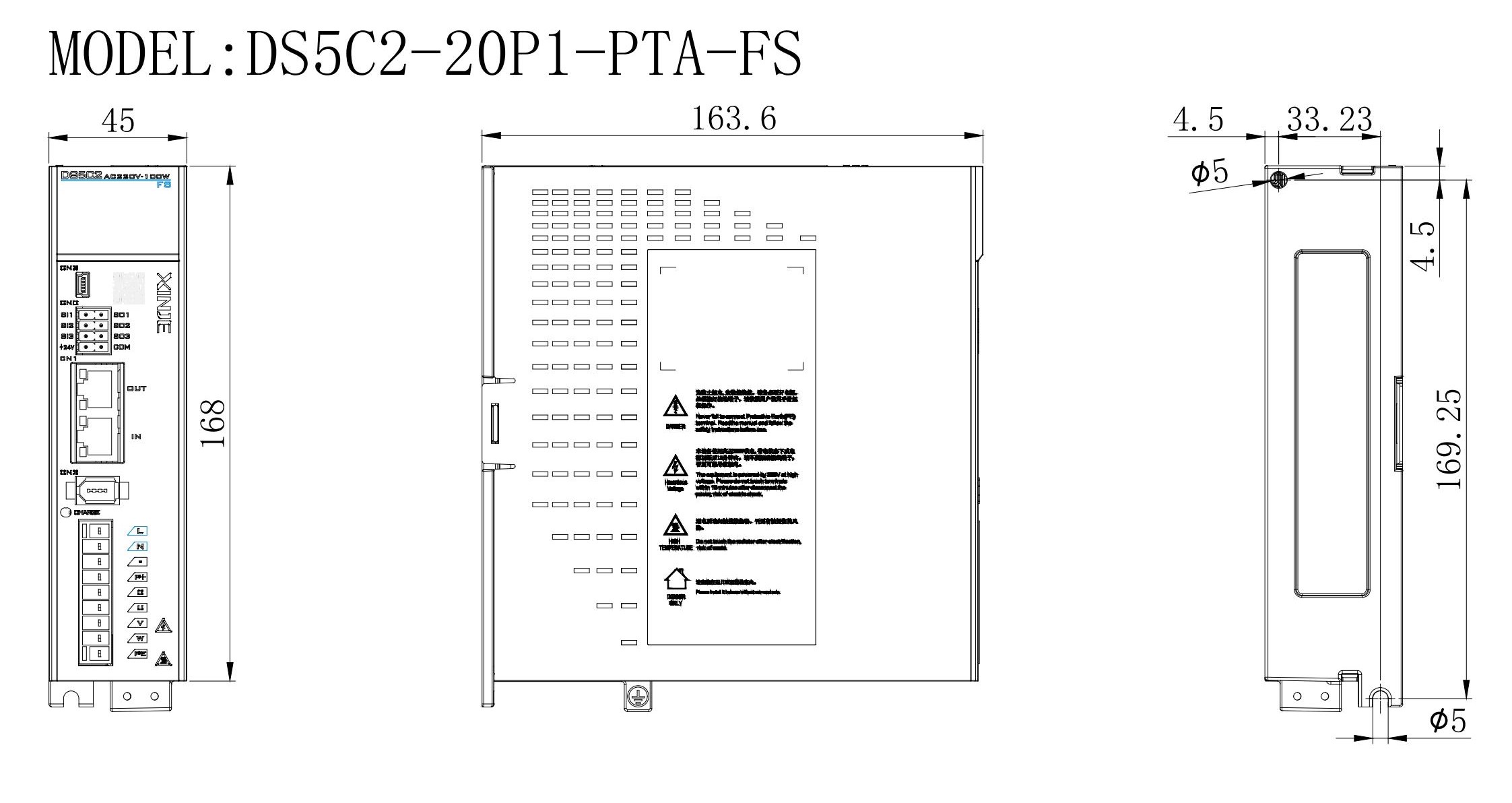

Dimensions （mm)

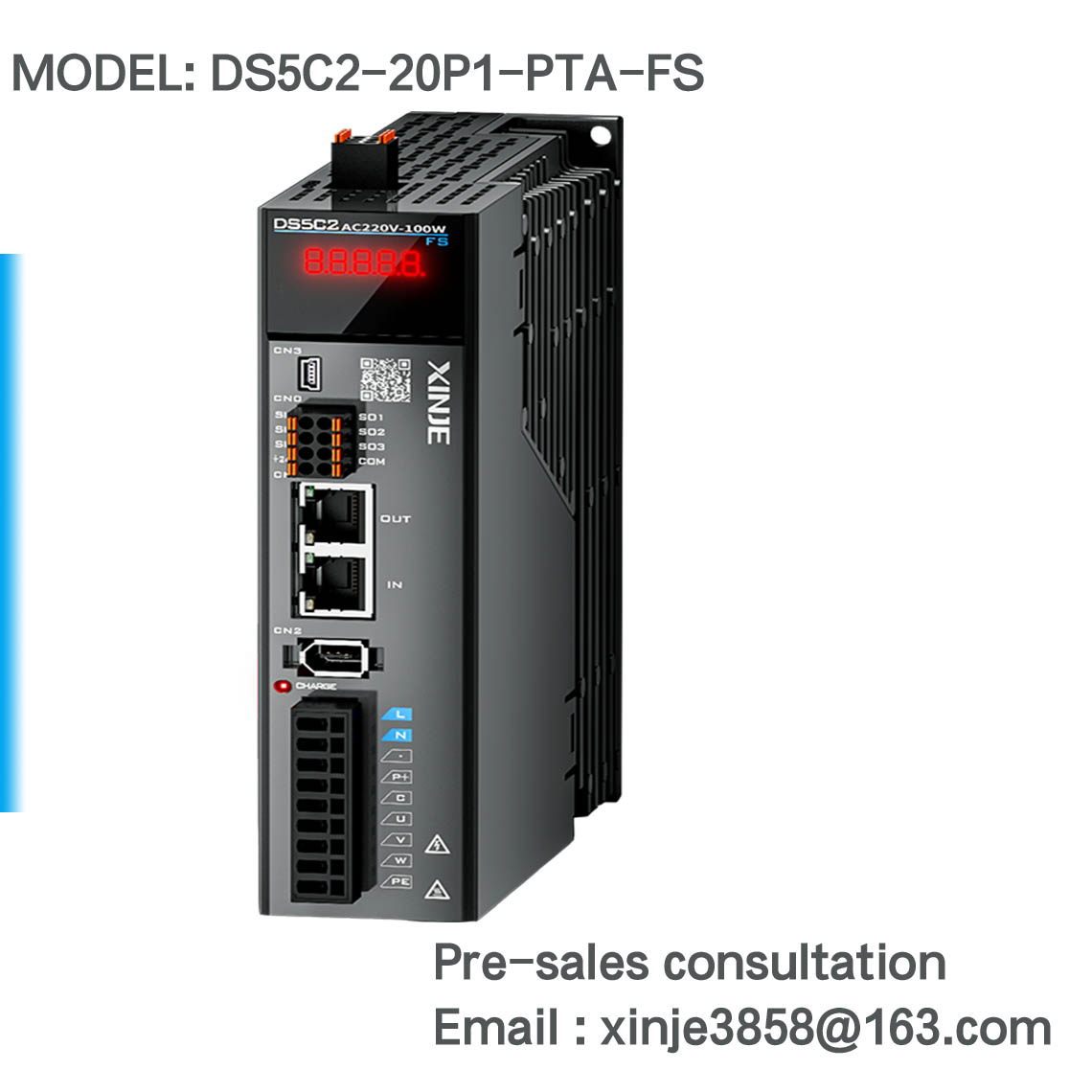

DS5C2-20P1-PTA-FS
¥2,060.00
DS5C2 EtherCAT servo driver
DS5C2 series EtherCAT bus type 100W servo drive(High-performance STO version), with a power supply voltage of 1-phase AC220V, supports 3 DI and 3 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 1.1 kg
Packaged Dimensions :22.5*21.5*8(cm)
- Description
- Specifications
- Real-shot
- Connect to PC
- Naming rule
- DS5C2 series
- 3D/CAD/ELPAN
- User Manual
- Software
| parameter | DS5C2-20P1-PTA-FS Specification |
| Power(kW) | 100W |
| Input power supply | Single-phase AC200~240V 50/60Hz |
| Output current (A) | 0.9A |
| Dynamic brake | √ |
| STO | √ |
| DI | 3 |
| DO | 3 |
| RS232 | √ |
| RS485 | × |
| Bus | EtherCAT |
| Pulse | × |
| Pulse 5V | × |
| Pulse 24V | × |
| Full closed loop | × |
| Analog input | × |
| Encoder differential feedback | × |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | × |
| External brake resistor | 80-100Ω above 200W |
| Authentication | – |
| Product Dimensions | 45*168*163.6(mm) |
| Packaged Dimensions | 22.5*21.5*8(cm) |
| Weight(kg) | 1.1kg |
