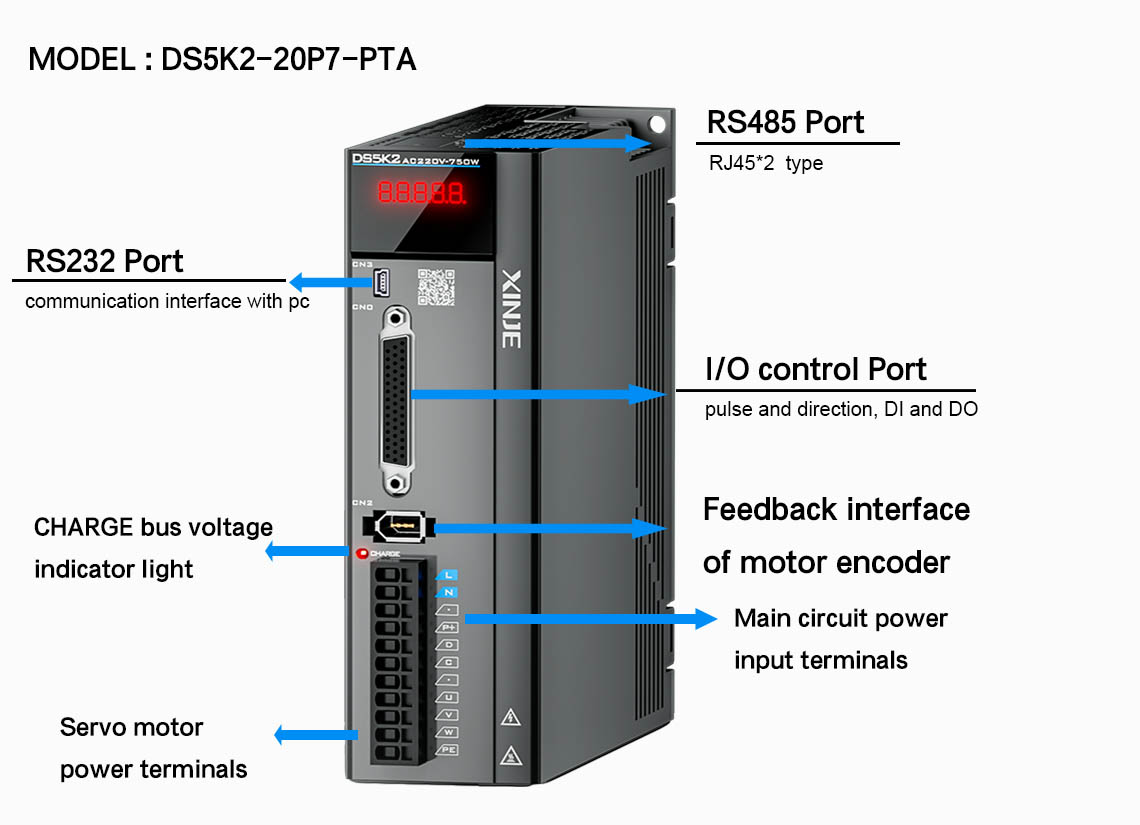

Interface diagram

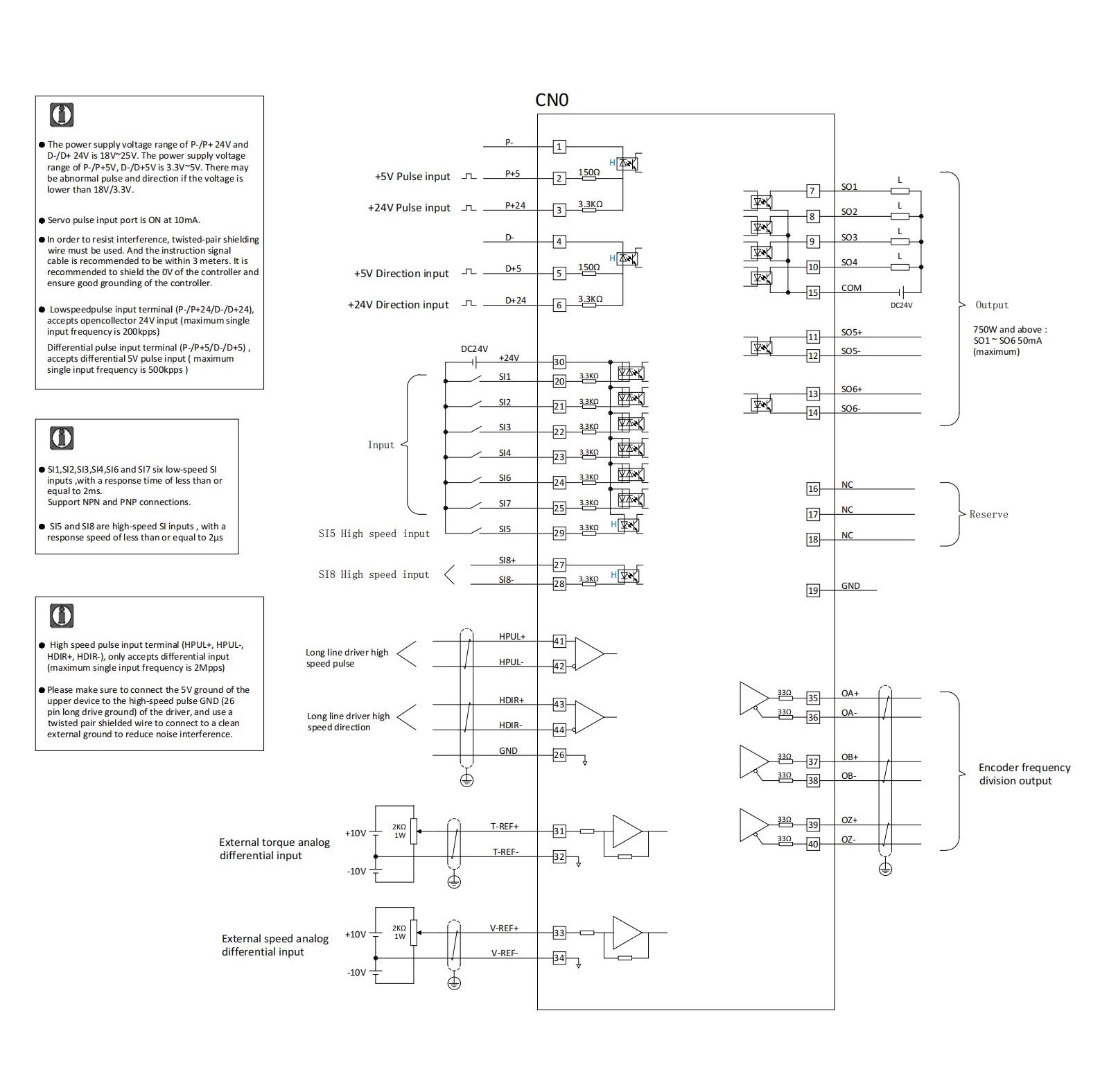

Wiring schematic

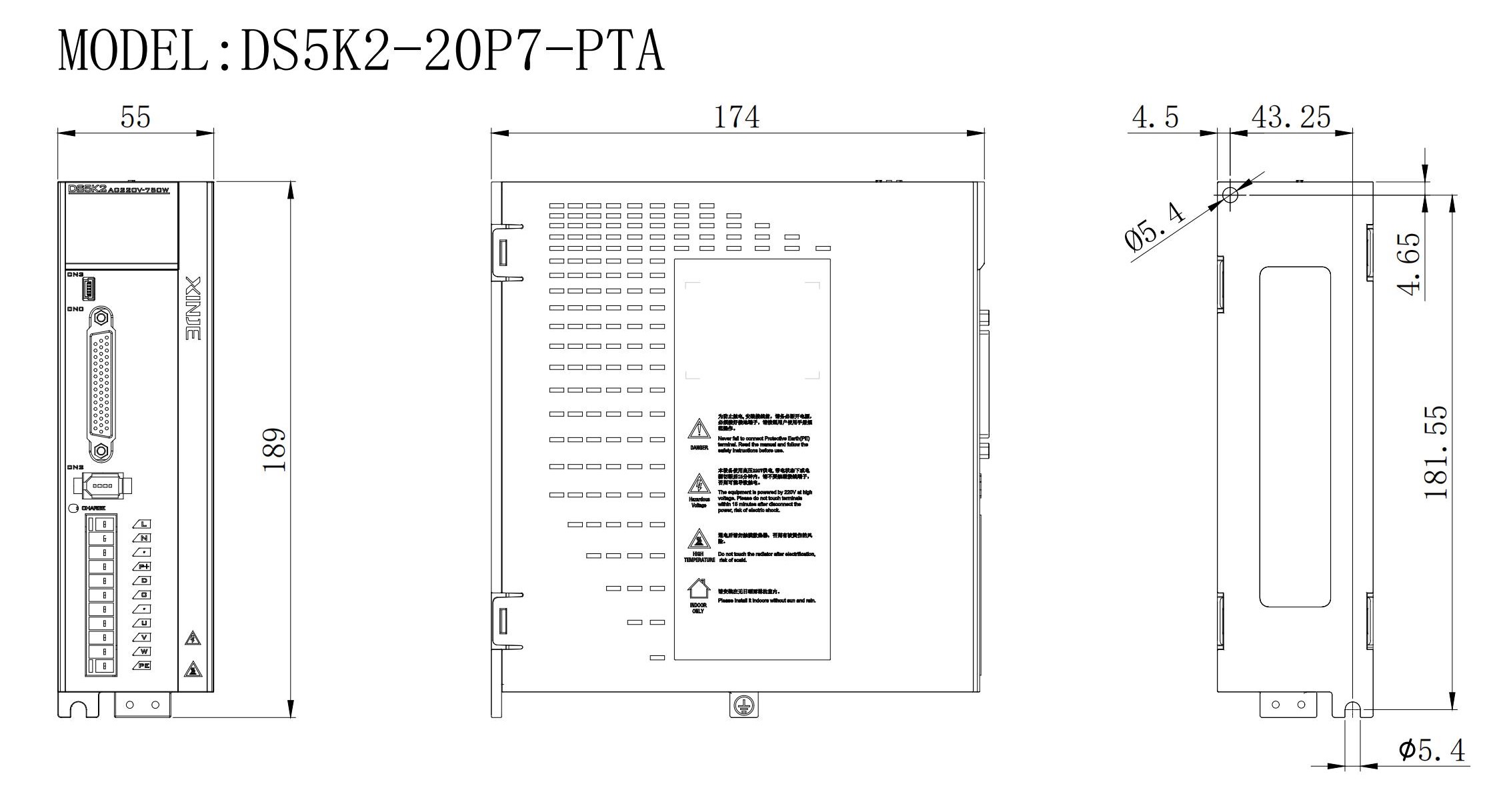

Dimensions （mm)

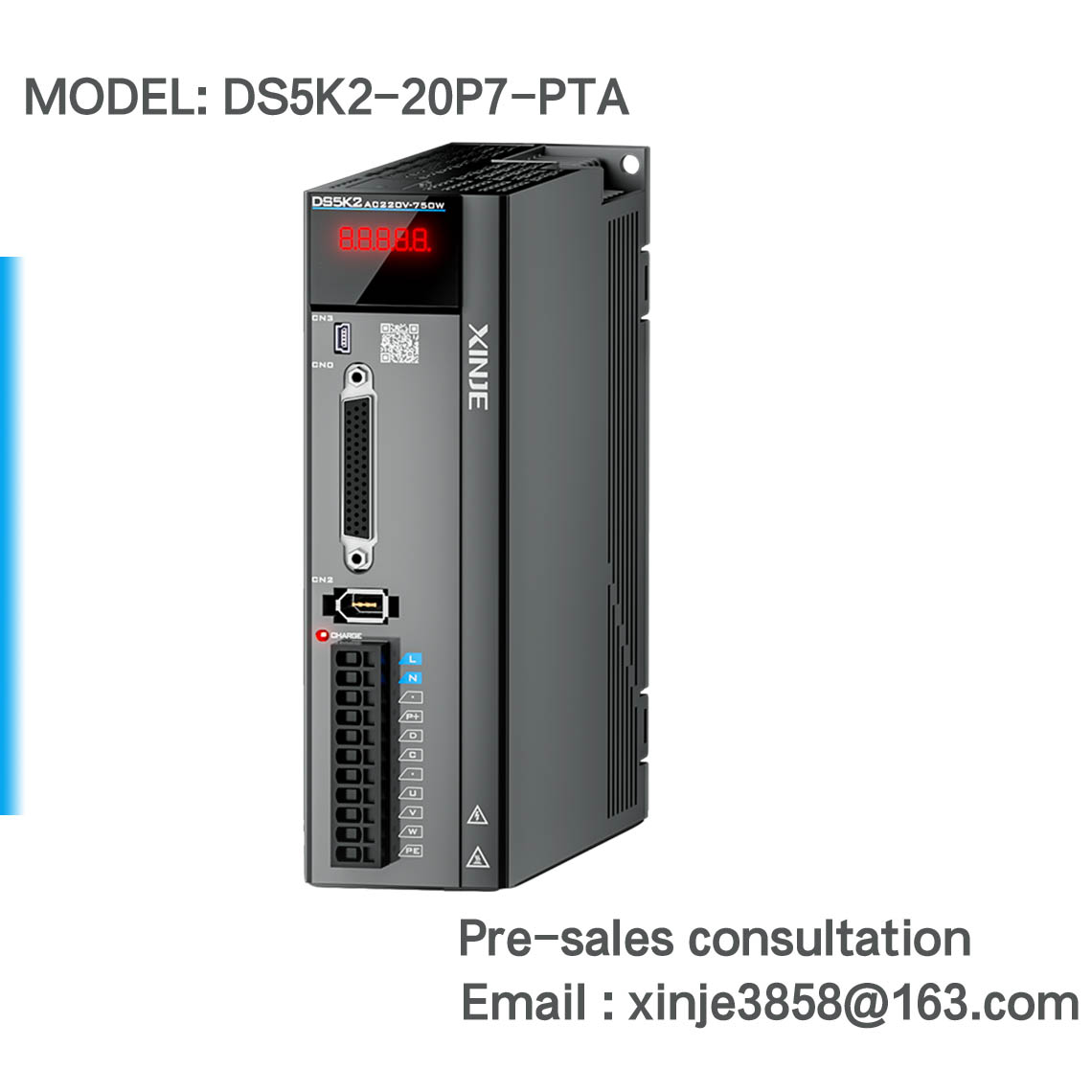

DS5K2-20P7-PTA
¥1,980.00
DS5K2 full function servo driver
DS5K2 series 750W servo driver, with a power supply voltage of 1-phase AC220V,Support analog input, supports 8 DI and 6 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 1.5kg
Packaged Dimensions : 23.5*22.5*9(cm)
- Description
- Specifications
- Real-shot
- Connect to PC
- Naming rule
- DS5K2 series
- 3D/CAD/ELPAN
- User Manual
- Software
| parameter | DS5K2-20P7-PTA Specification |
| Power(kW) | 0.75kW |
| Input power supply | single phase AC200~240V 50/60Hz |
| Output current (A) | 4.8A |
| Dynamic brake | √ |
| STO | × |
| DI | 8 |
| DO | 6 |
| RS232 | √ |
| RS485 | √ |
| Bus | × |
| Pulse | √ |
| Pulse 5V | √ |
| Pulse 24V | √ |
| Full closed loop | × |
| Analog input | √ |
| Encoder differential feedback | √ |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | 50Ω80W |
| External brake resistor | 50-100Ω above 600W |
| Authentication | – |
| Product Dimensions | 55*189*174(mm) |
| Packaged Dimensions | 23.5*22.5*9(cm) |
| Weight(kg) | 1.5kg |
Servo software
DS3&DS5 series servo drive host computer debugging software XinjeServo V2.16.rar
