Description

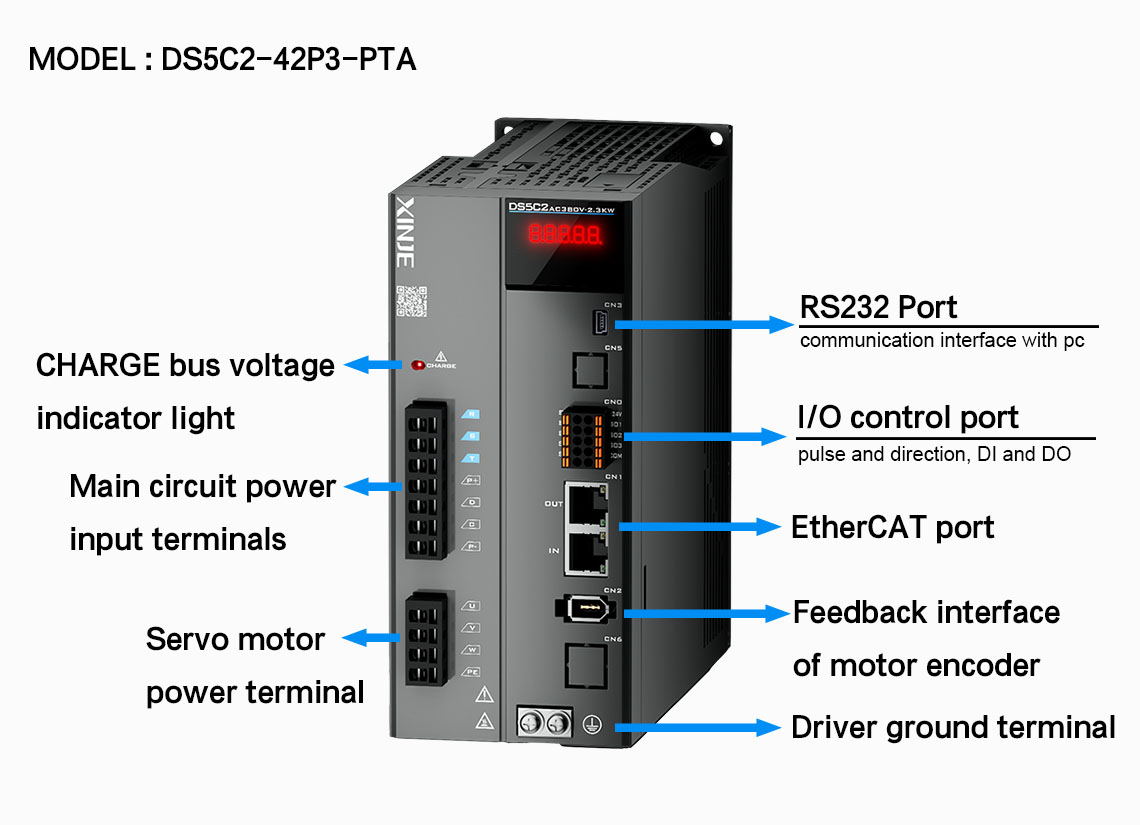

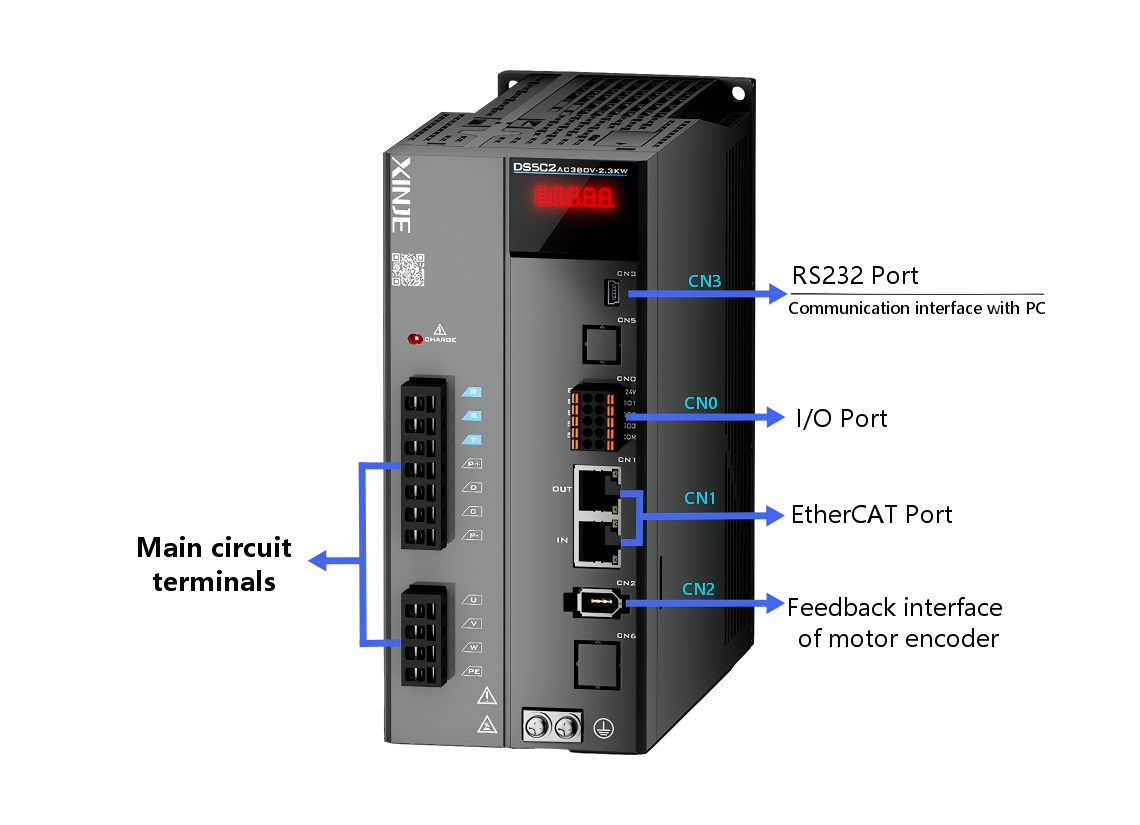

DS5C2-42P3-PTA Interface diagram

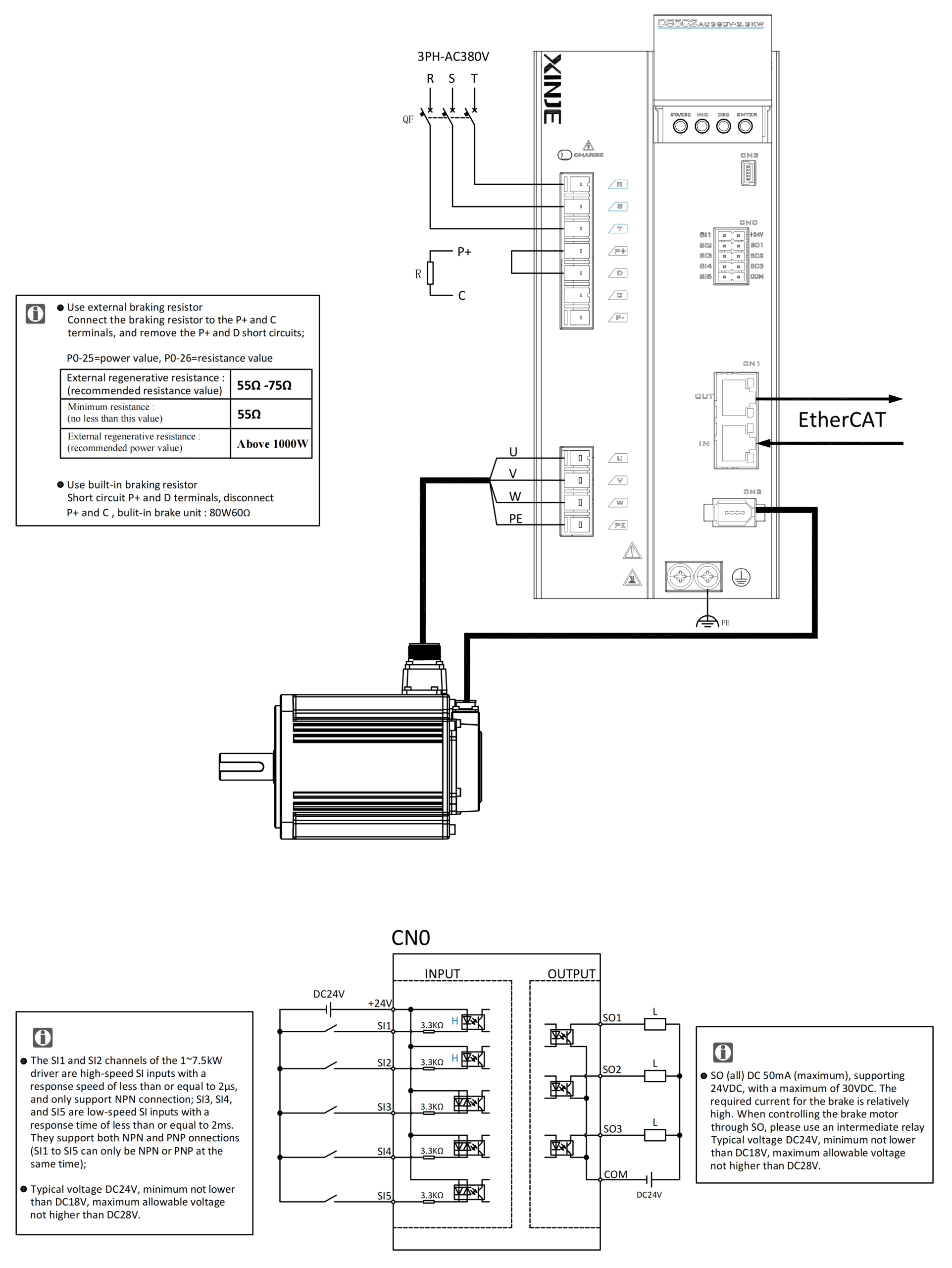

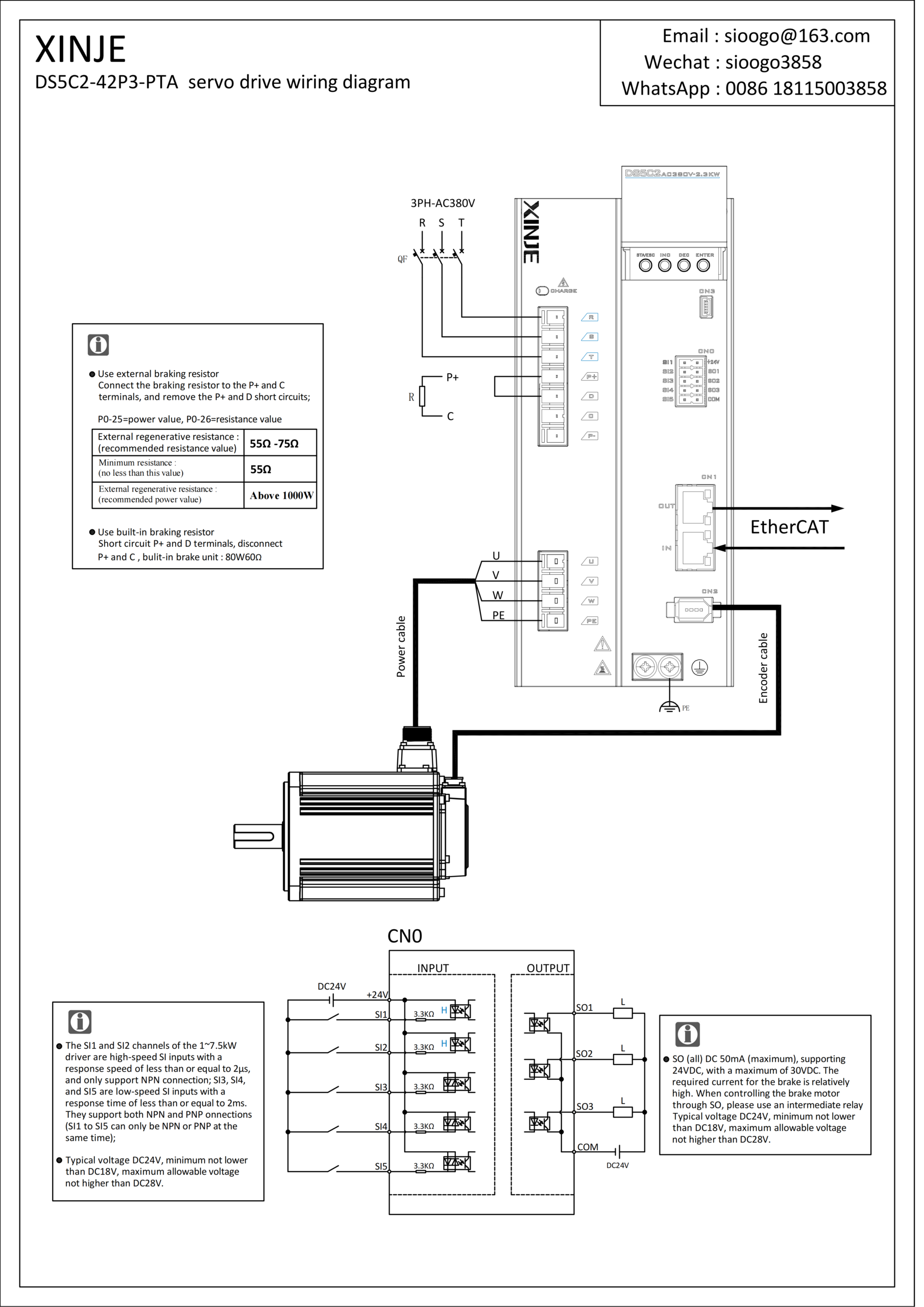

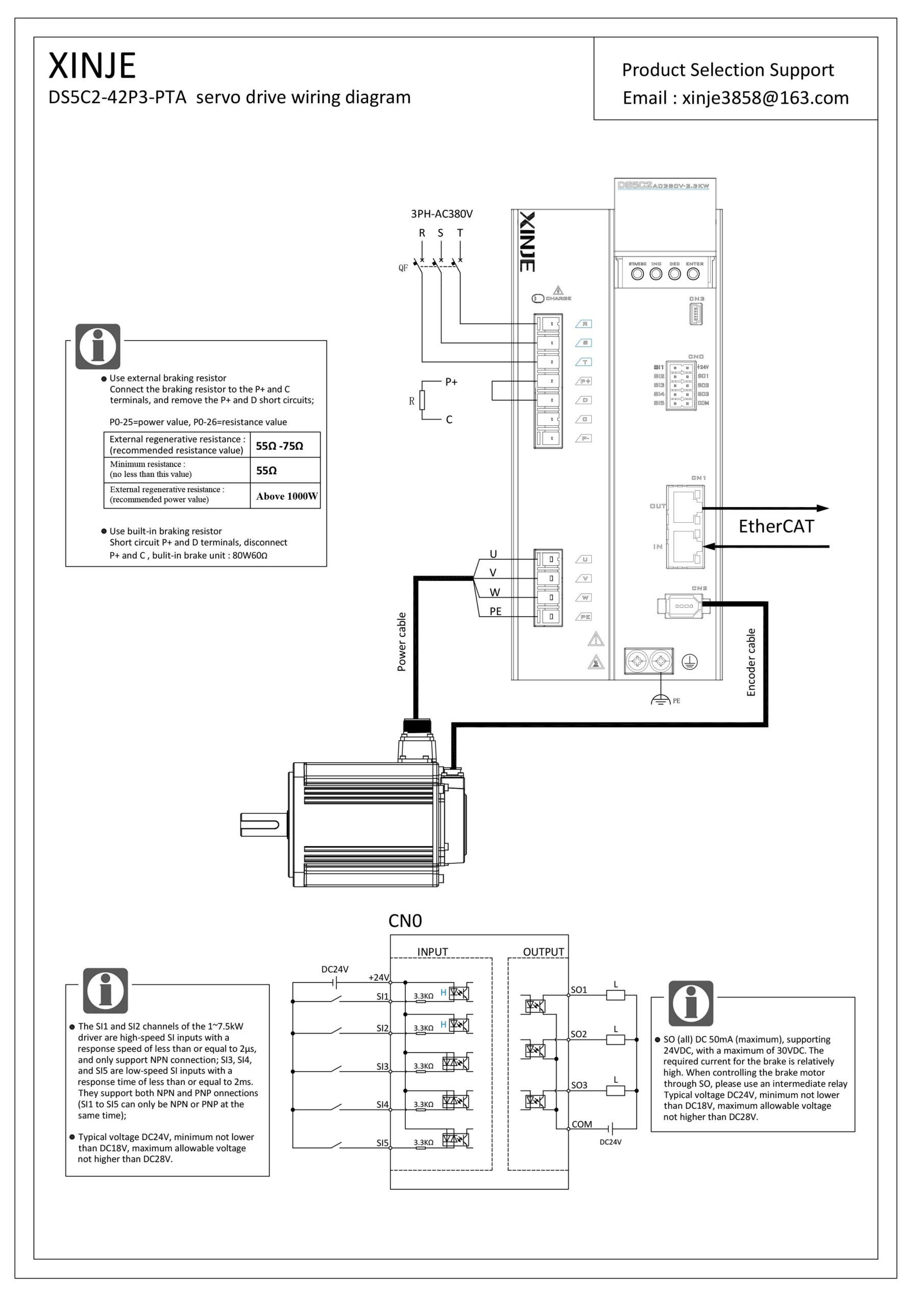

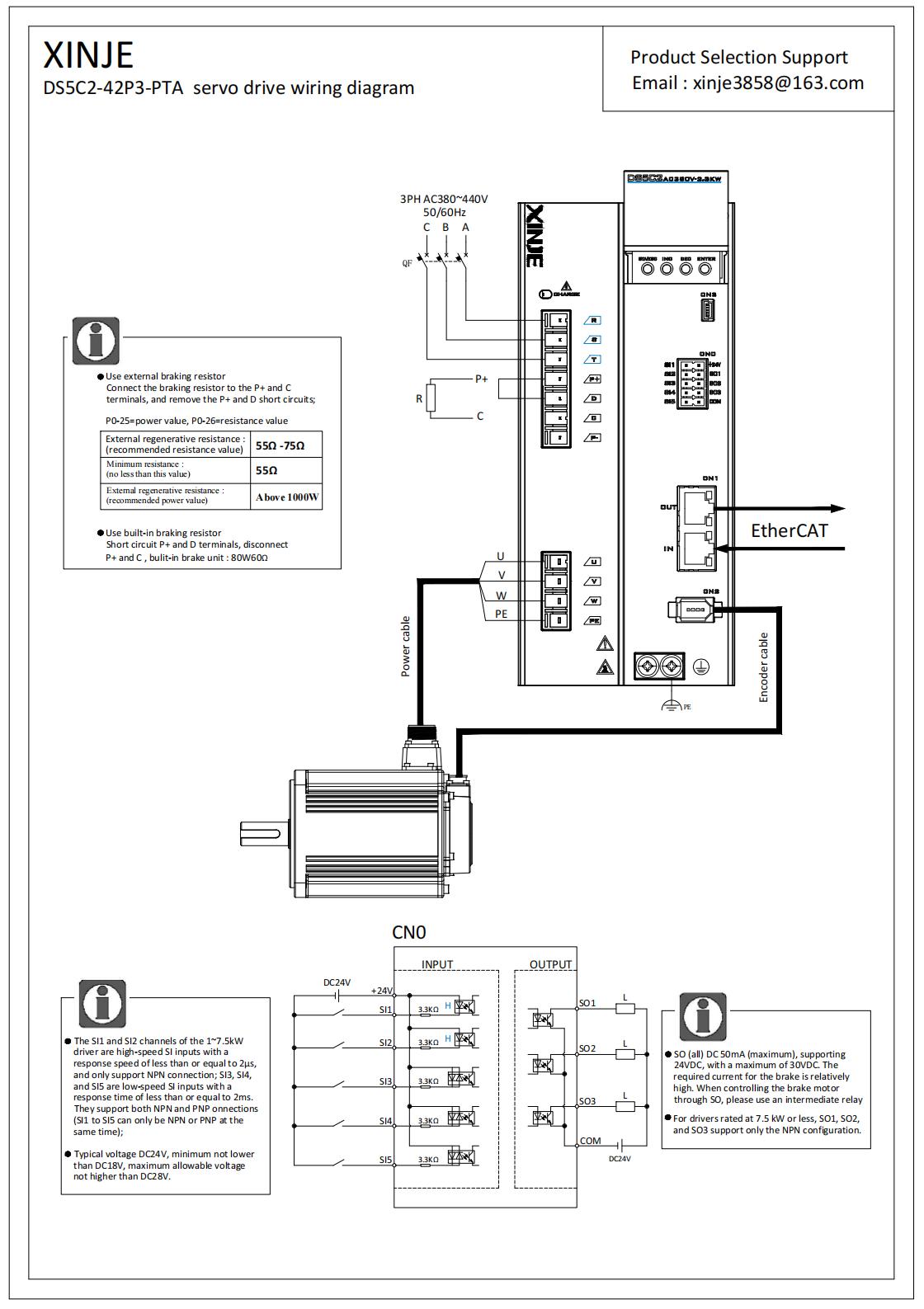

DS5C2-42P3-PTA Wiring schematic

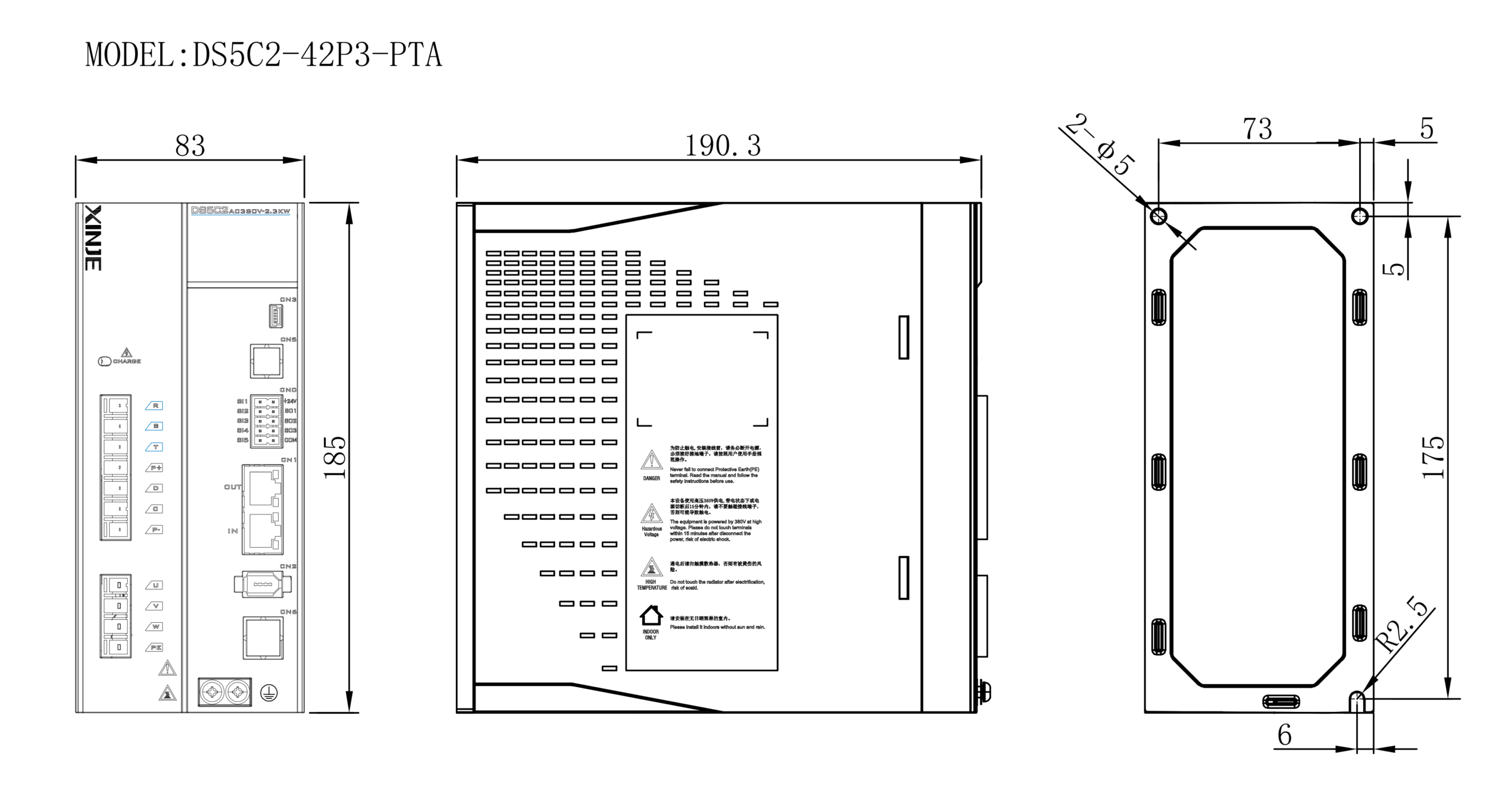

Dimensions （mm)
DS5C2-42P3-PTA
¥3,500.00

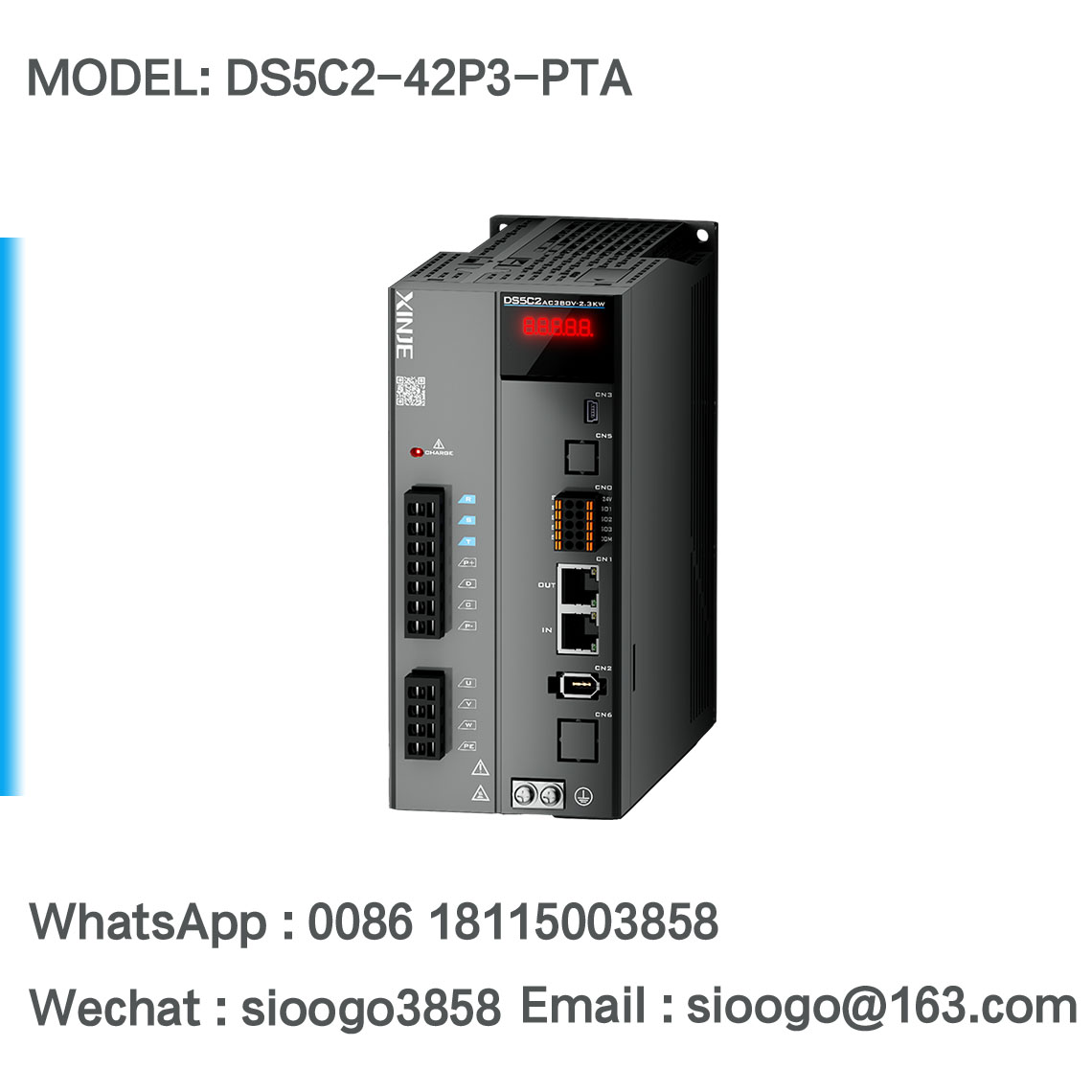

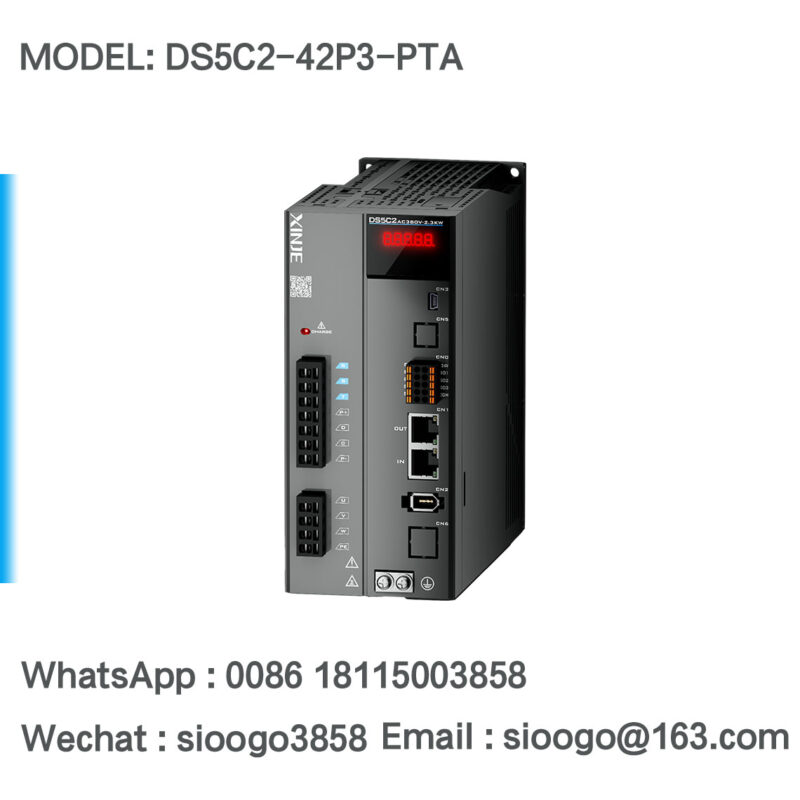

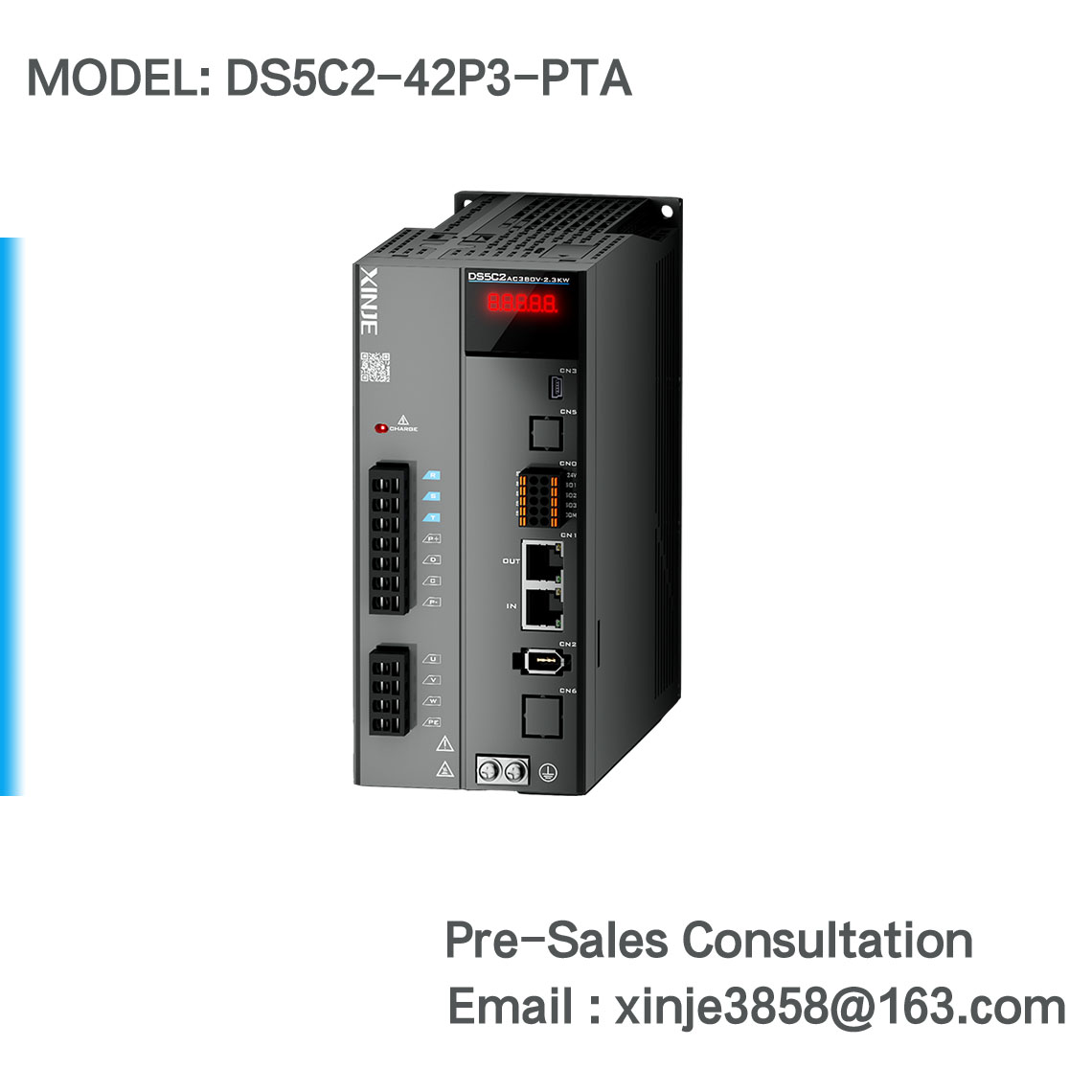

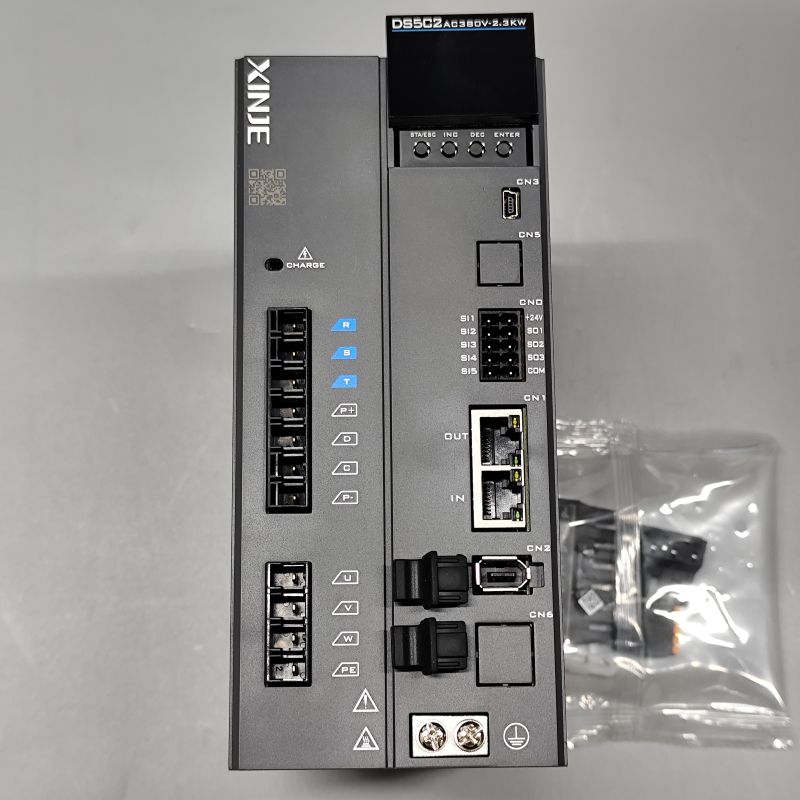

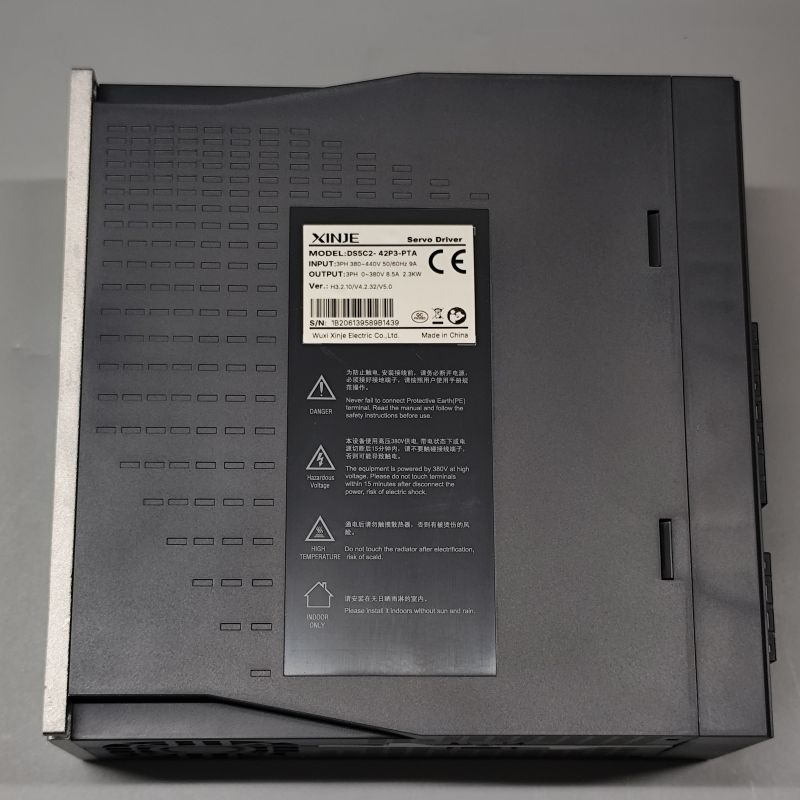

DS5C2 EtherCAT servo driver
DS5C2 series EtherCAT bus type 2.3KW servo drive, with a power supply voltage of 3-phase AC380V, supports 5 DI and 3 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 2.2 kg
Packaged Dimensions : 240*240*140 (mm)
- Description
- Specifications

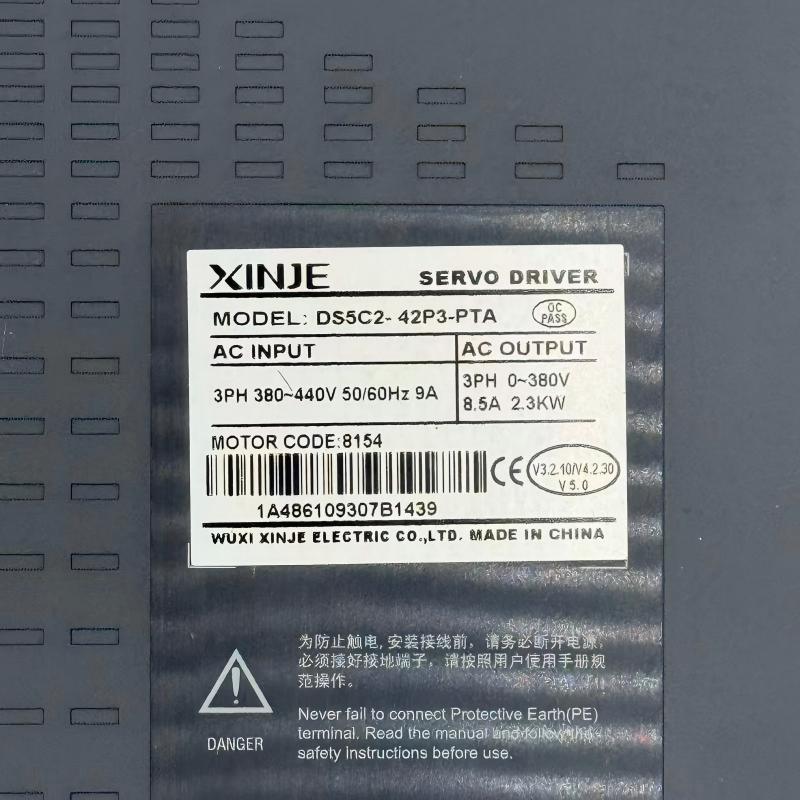

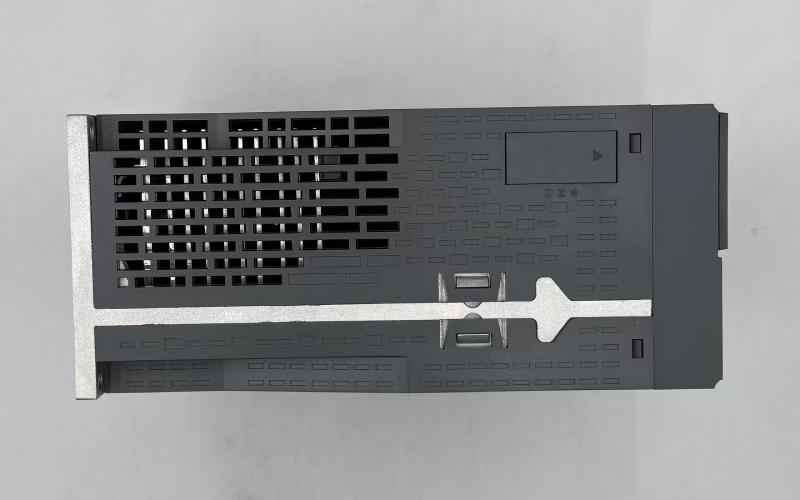

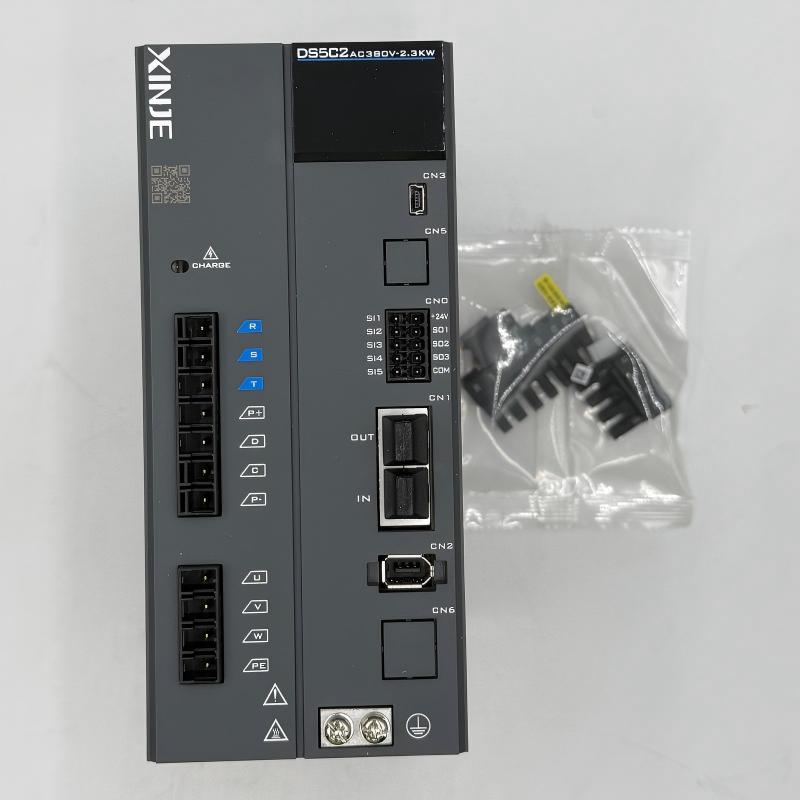

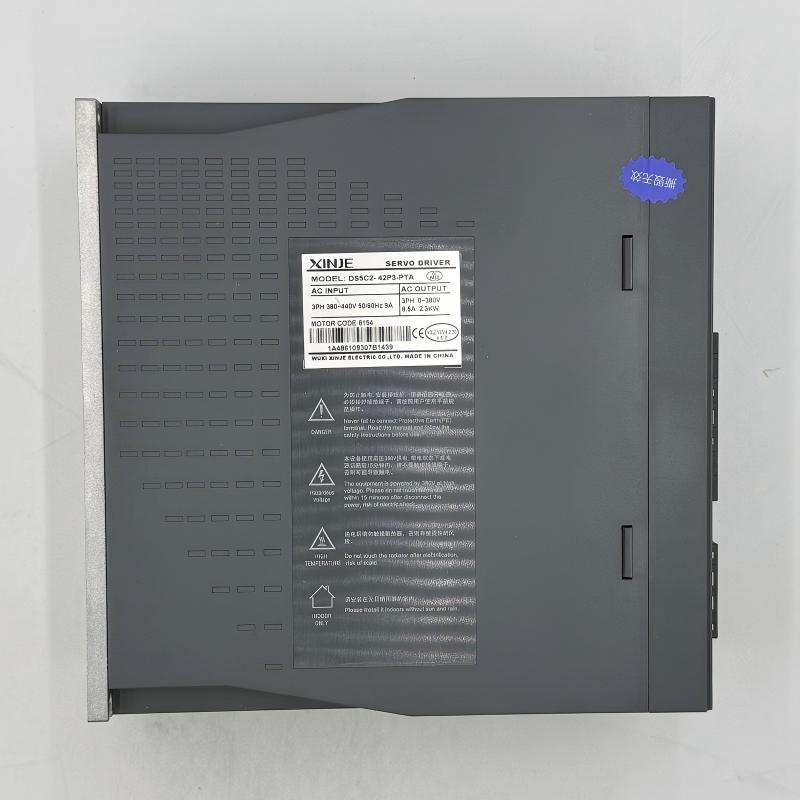

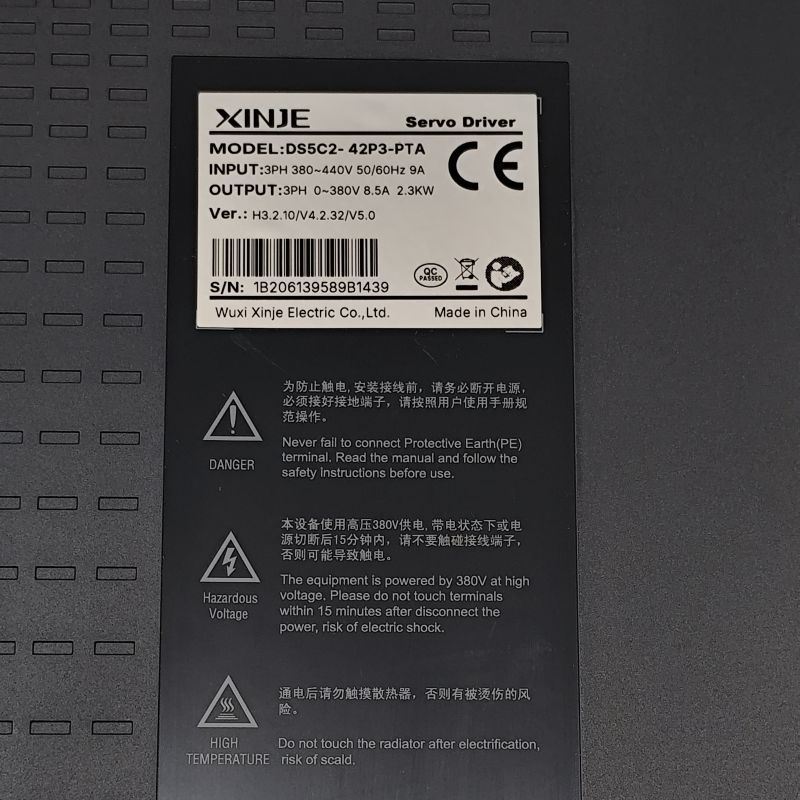

- Real-shot
- Connect to PC
- Naming rule
- DS5C2 series
- Func differences
- 3D/CAD/ELPAN
- User Manual
- Software
| parameter | DS5C2-42P3-PTA Specification |
| Power(kW) | 2.3kW |
| Input power supply | Three phase AC380~440V 50/60Hz |
| Output current (A) | 8.5A |
| Dynamic brake | √ |
| STO | × |
| DI | 5 |
| DO | 3 |
| RS232 | √ |
| RS485 | × |
| Bus | EtherCAT |
| Pulse | × |
| Pulse 5V | × |
| Pulse 24V | × |
| Full closed loop | × |
| Analog input | × |
| Encoder differential feedback | × |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | 50Ω 80W |
| External brake resistor | 25-50Ω above 100W |
| Authentication | – |
| Shell material | |
| Weight(kg) | 2.146kg |
| Product Dimensions | 83*185*190.3(mm) |
| Packaged Dimensions | 240*240*140(mm) |
