Description

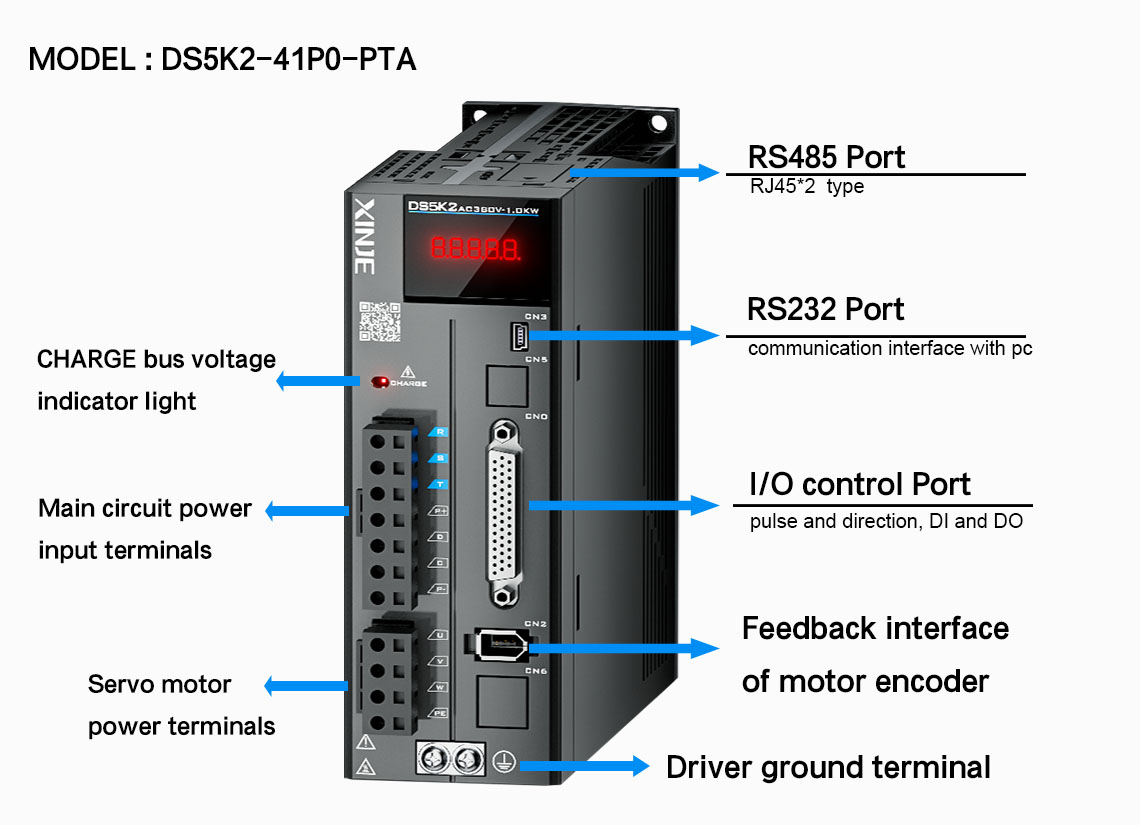

Interface diagram
Wiring schematic

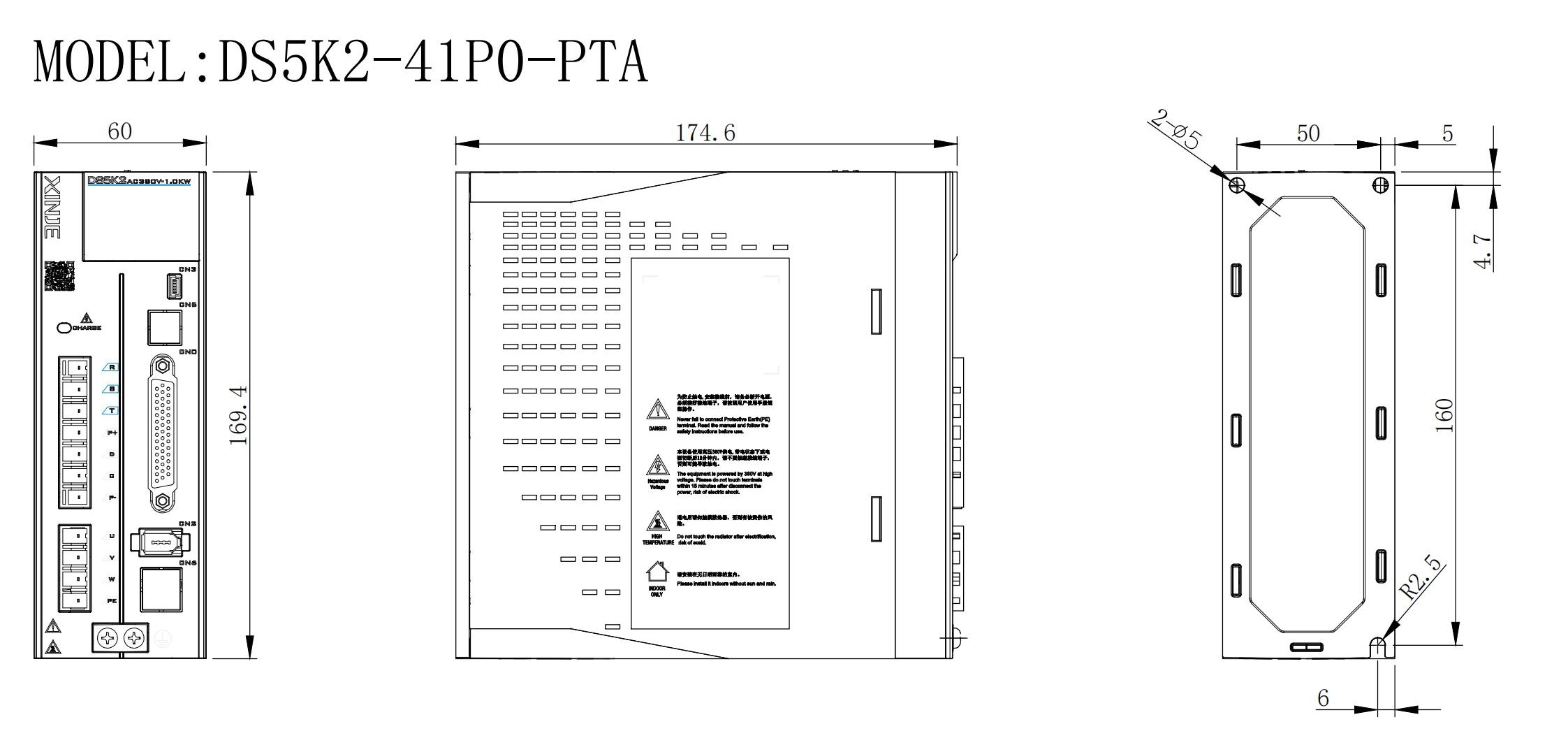

Dimensions （mm)

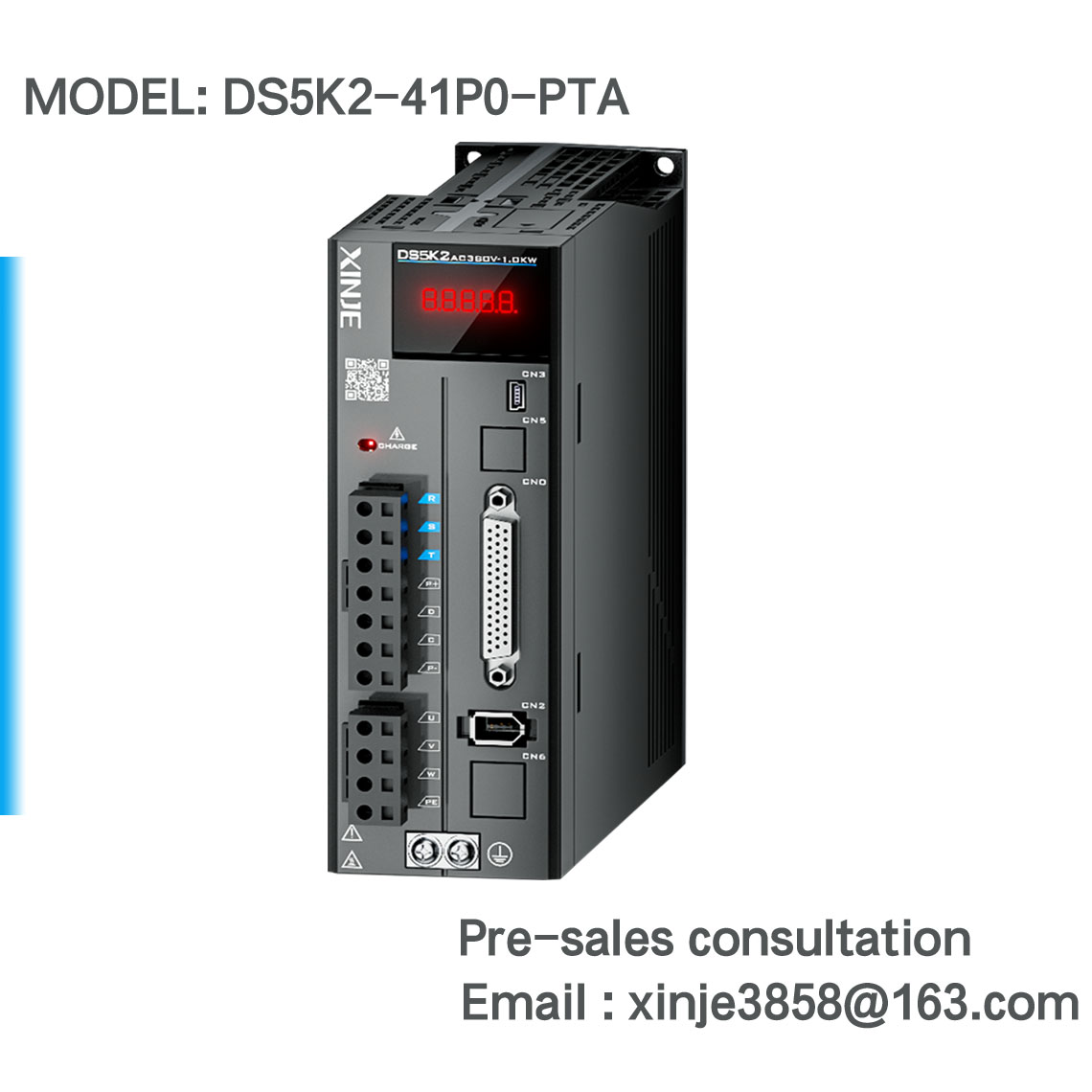

DS5K2-41P0-PTA
¥2,600.00
DS5K2 full function servo driver
DS5K2 series 1.0KW servo driver, with a power supply voltage of 3-phase AC380V,Support analog input, supports 8 DI and 6 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 1.5kg
Packaged Dimensions : 22.5*22.5*11.5 (cm)
- Description
- Specifications
- Real-shot
- Connect to PC
- Naming rule
- DS5K2 series
- 3D/CAD/ELPAN
- User Manual
- Software
| parameter | DS5K2-41P0-PTA Specification |
| Power(kW) | 1.0kW |
| Input power supply | Three phase AC380~440V 50/60Hz |
| Output current (A) | 3.2A |
| Dynamic brake | √ |
| STO | × |
| DI | 8 |
| DO | 6 |
| RS232 | √ |
| RS485 | √ |
| Bus | × |
| Pulse | √ |
| Pulse 5V | √ |
| Pulse 24V | √ |
| Full closed loop | × |
| Analog input | √ |
| Encoder differential feedback | √ |
| Encoder resolution | 19/23bit |
| Built-in brake resistor | 100Ω 80W |
| External brake resistor | 120-150Ω above 800W |
| Authentication | – |
| Product Dimensions | 60*169.4*174.6(mm) |
| Packaged Dimensions | 22.5*22.5*11.5(cm) |
| Weight(kg) | 1.5kg |

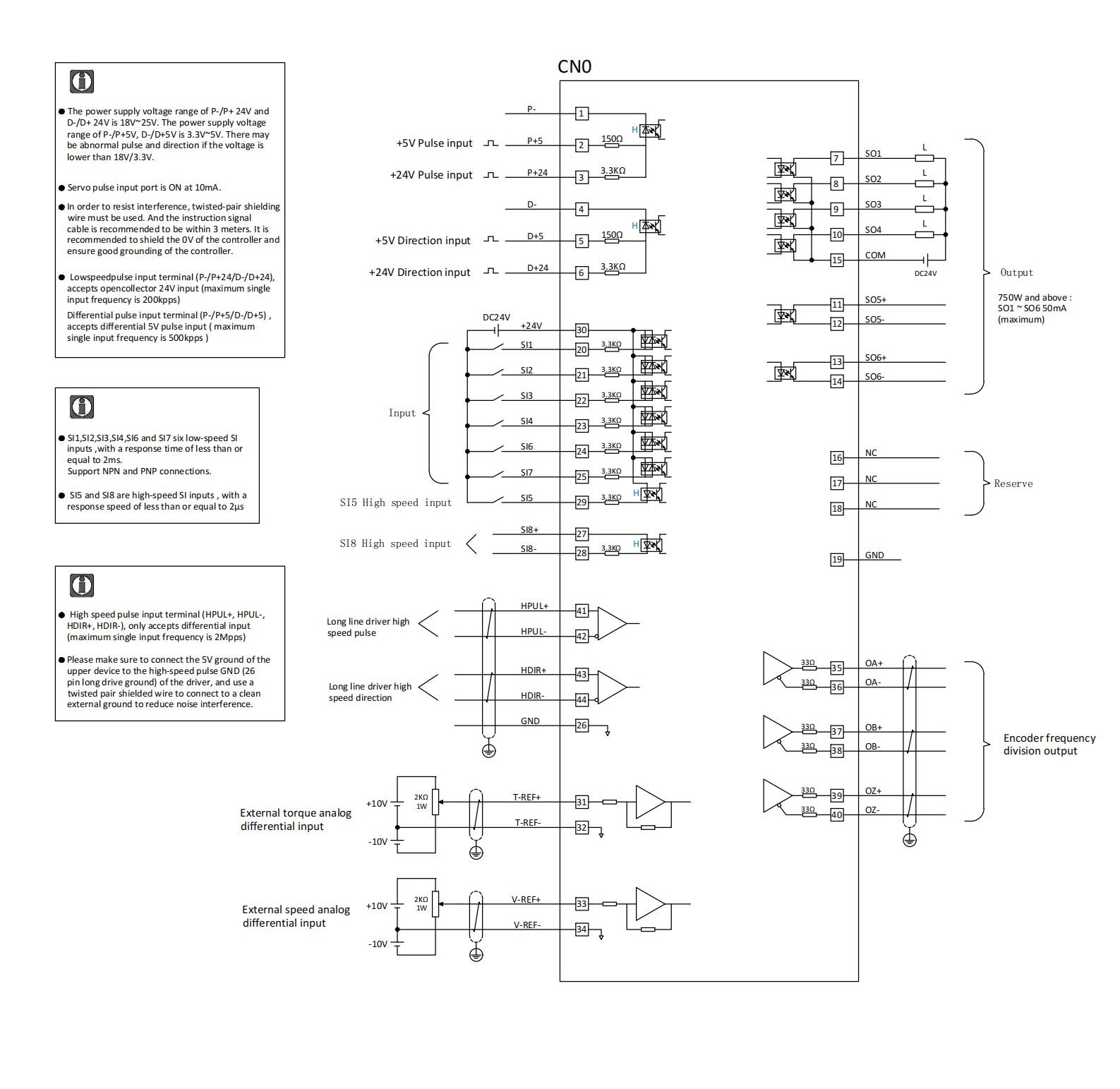

DS5K2-41P0-PTA wiring diagram
DS5K2-41P0-PTA servo drive wiring diagram.pdf
Servo software
DS3&DS5 series servo drive host computer debugging software XinjeServo V2.16.rar
