Description

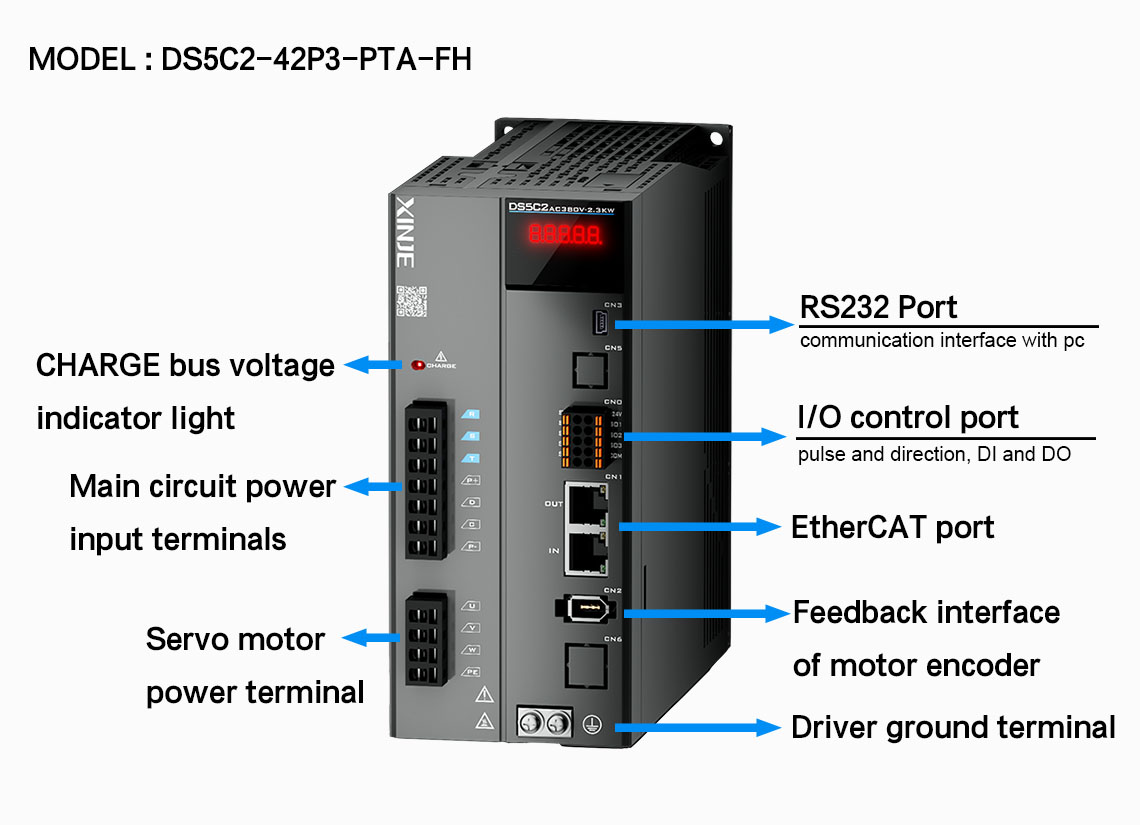

DS5C2-42P3-PTA Interface diagram

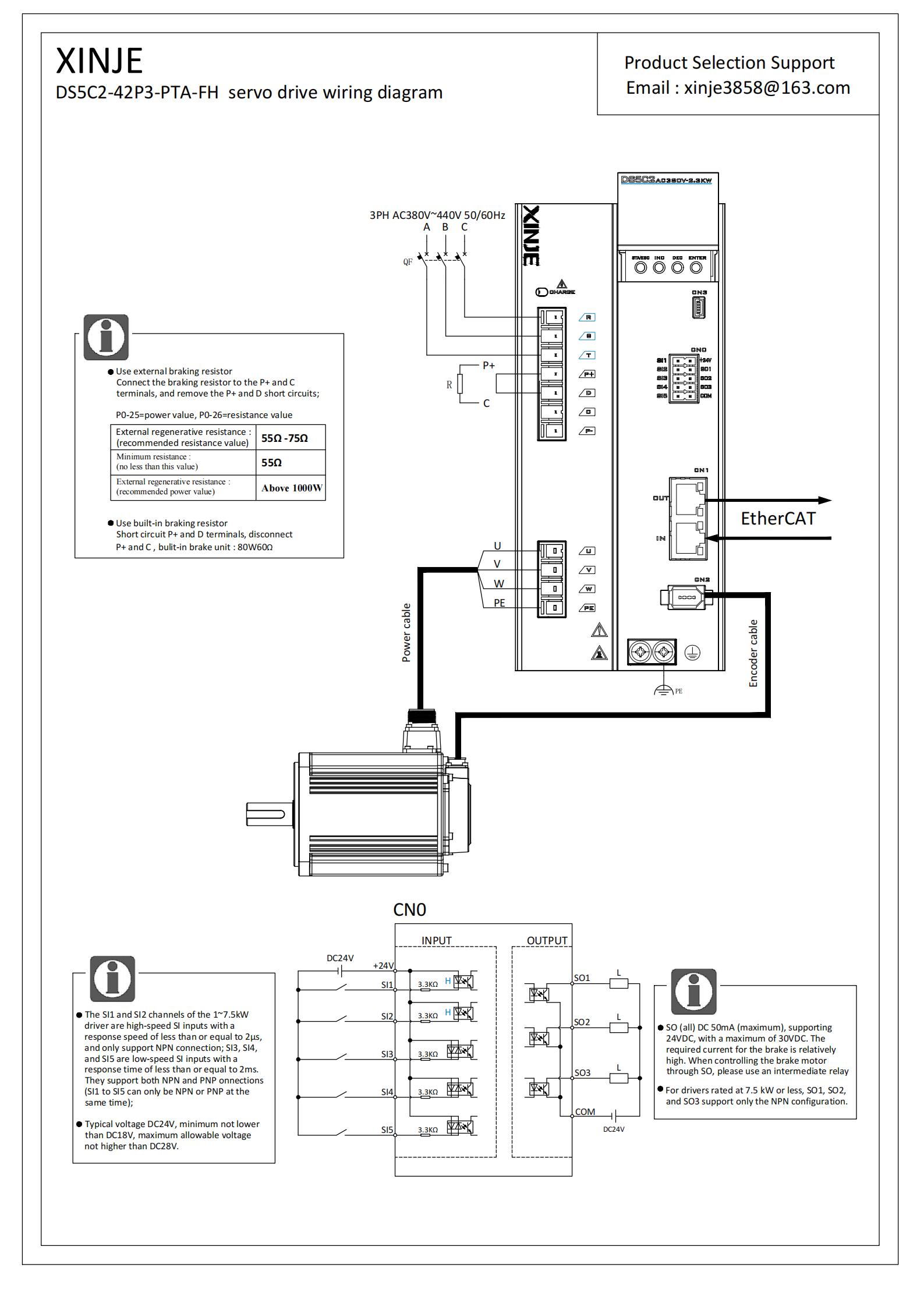

DS5C2-42P3-PTA Wiring schematic

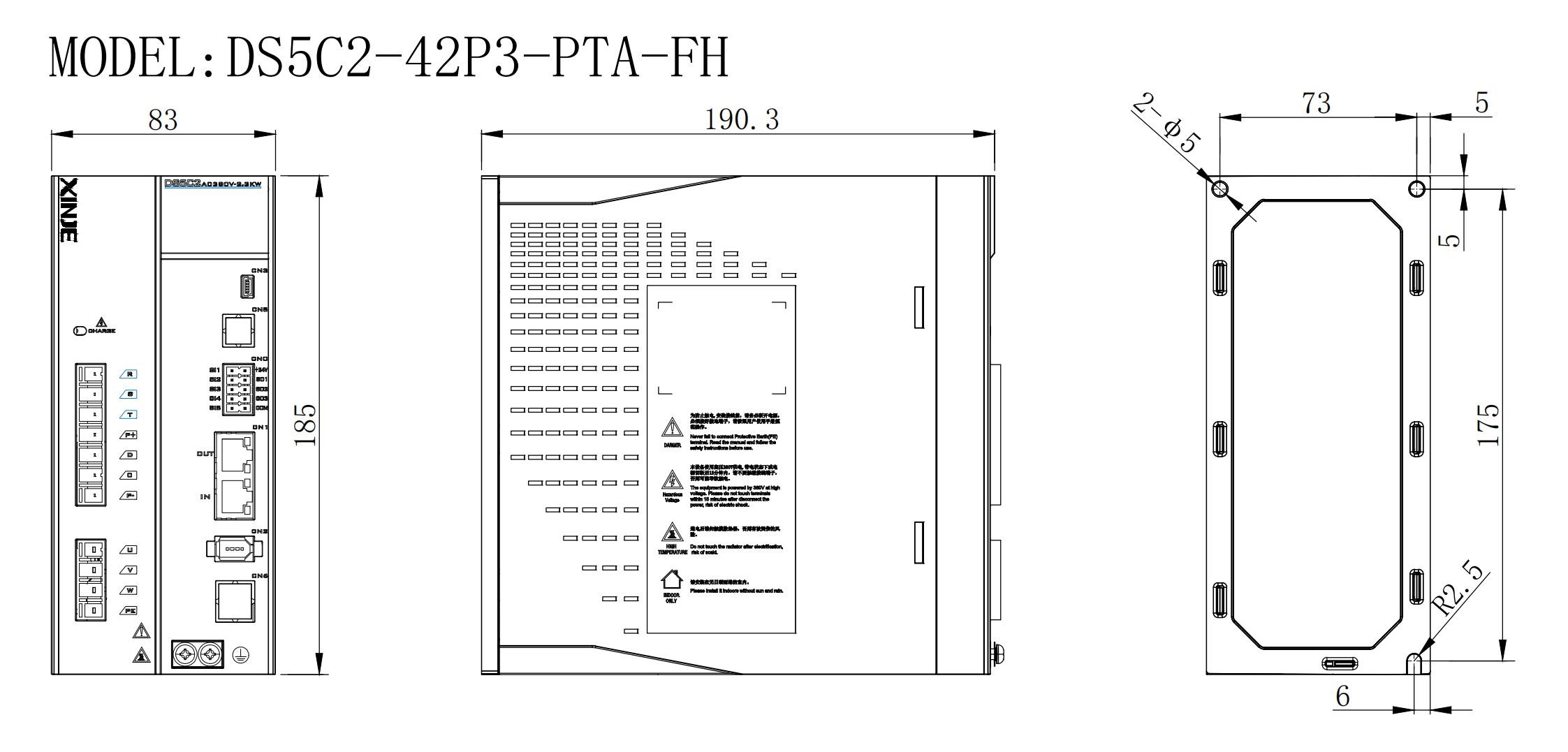

Dimensions （mm)

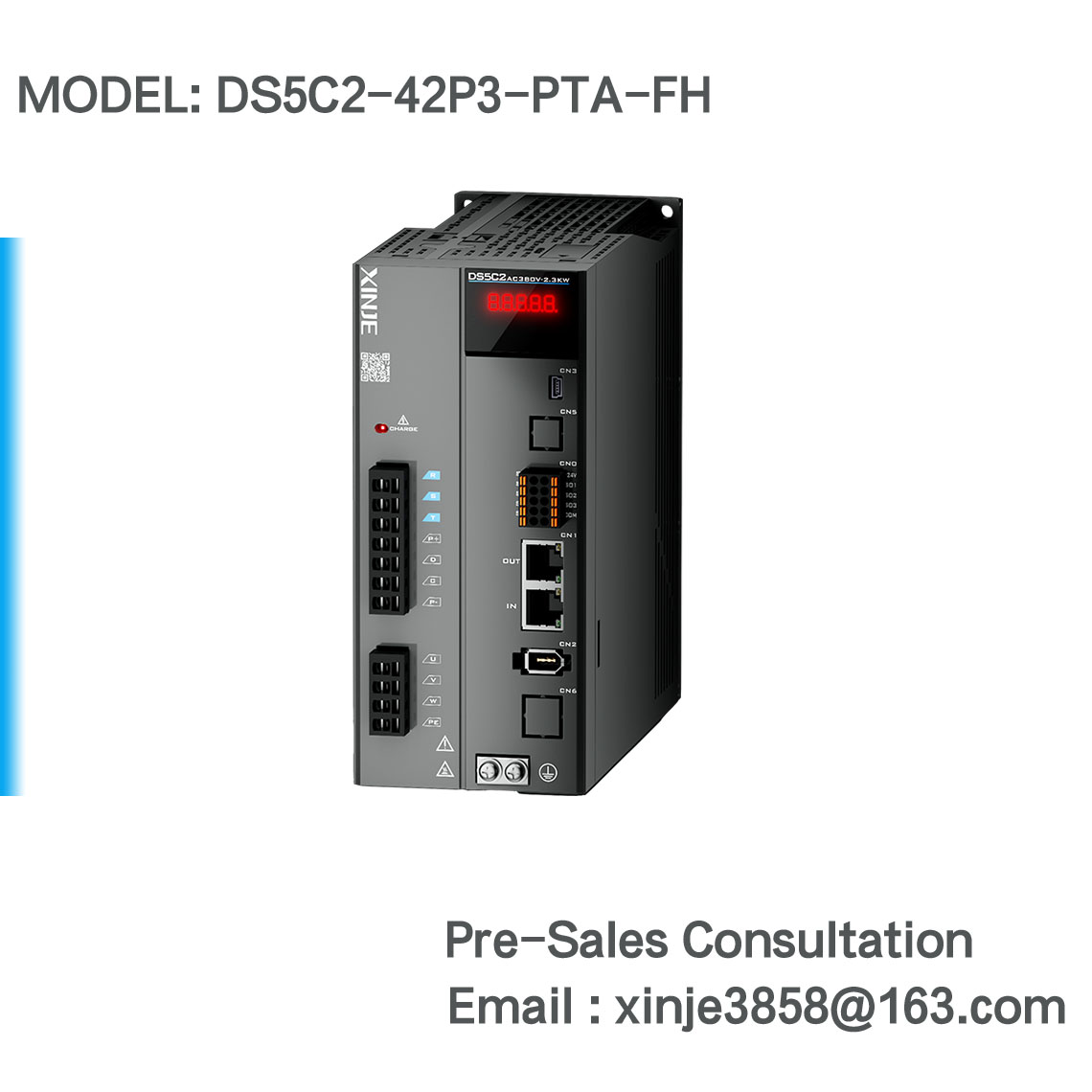

DS5C2-42P3-PTA-FH
¥3,700.00
DS5C2 EtherCAT servo driver
DS5C2 series EtherCAT bus type 2.3KW servo drive, with a power supply voltage of 3-phase AC380V, supports 5 DI and 3 DO, and supports three control modes: position control, speed control, and torque control.
Weight : 2.2 kg
Packaged Dimensions : 240*240*140 (mm)
