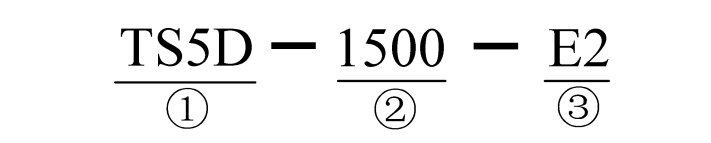

TS5D series model constitute
① | Series type | TS5D series |
| ② | Display | 1200: 12.0inch 1500 : 15.6inch |
| ③ | Module type | E: no module, with Ethernet port 4G: with 4G module W: with WIFI module |
Product specification
| Product specification | TS5D-1200-E2 | TS5D-1200-4G | TS5D-1200-W | TS5D-1500-E2 | TS5D-1500-4G | TS5D-1500-W | |
| Product features | Size | 12″ | 12″ | 12″ | 15.6″ | 15.6″ | 15.6″ |
| Resolving power | 1024*768 | 1920*1080 | |||||
| display | TFT LCD display ,LED backlight | ||||||
| Colour | 16.77 million colors | ||||||
| Brightness | 250 cd/m² | ||||||
| Touch screen type | Four wire resistive touch panel | ||||||
| Service life | Over 30000 hours, ambient temperature of 25°C, 24-hour operation | ||||||
| cpu | Cortex-A7 dual core 1.2GHz | ||||||
| Menory | 256MB | ||||||
| Editing software | TouchWin Pro editing tool | ||||||
| Interface | COM1 port | COM1:RS232/RS485 | |||||
| COM2 port | COM2:RS232/RS485/RS422 | ||||||
| USB port1 | USB-A (compliant with USB2.0 specifications), 2 USB flash drive ports | ||||||
| USB port2 | Type-C, USB download port | ||||||
| Ethernet port | Standard RJ45(10/100 adaptive)*2 | ||||||
| Audio | φ 3.5 coaxial audio plug | ||||||
| Video | – | ||||||
| 4G | – | – | 4G full network LTE-FDD(Mbps): 10(downlink)/5(uplink) | – | – | 4G full network LTE-FDD(Mbps): 10(downlink)/5(uplink) | |
| WIFI | – | IEEE 802.11 a/b/g/n IEEE 802.11g: 54Mbps | – | – | IEEE 802.11 a/b/g/n IEEE 802.11g: 54Mbps | – | |
| Electric characteristics | Input voltage | DC24V(Voltage range:DC22V-26V) | |||||
| Power | 20W | 10W | |||||
| Allow power loss | Below 10ms (Actual power loss less than 1 second) | ||||||
| Resistance to voltage shock | AC1000V,10mA,less than 1 minute (between signal and ground) | ||||||
| Insulation resistance | DC500V, Above 10MΩ | ||||||
| Environment | Operation temperature | 0~50℃ | |||||
| Storage temperature | -10~60℃ | ||||||
| Operating humidity | 10%RH-90%RH(No condensation) | ||||||
| Anti-interference ability | Voltage noise : 1500Vp-p,pulse width 1us,1 minute | ||||||
| Vibration resistance | 10~25Hz (X, Y, Z direction each 30 minutes 2G) | ||||||
| Air | Non corrosive gas | ||||||
| Cooling mode | Natural air cooling | ||||||
| IP code | Front panel IP65 | ||||||
| Shell material | Engineering plastics PC+ABS | ||||||
| External dimensions (mm) | 314 * 238.8 * 40.7 | 396 * 259 * 39 | |||||
| Hole size (mm) | 301 * 226（±0.5） | 384 * 247（±0.5） | |||||
