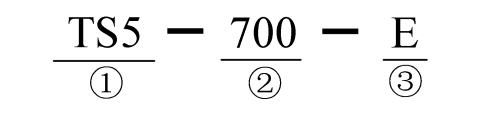

TS5 series model constitute
① | Series type | TS5 series |
| ② | Display | 700 : 7.0inch 1000 : 10.1inch |
| ③ | Module type | E: no module, with Ethernet port 4G: with 4G module W: with WIFI mo |
Product specification
| Product specification | TS5-700-E | TS5-700-W | TS5-700-4G | TS5-1000-E | TS5-1000-W | TS5-1000-4G | |
| Product features | Size | 7″ | 7″ | 7″ | 10.1″ | 10.1″ | 10.1″ |
| Resolving power | 800*480 | 1024*600 | |||||
| display | TFT LCD display ,LED backlight | ||||||
| Colour | 16.77 million colors | ||||||
| Brightness | 250 cd/m² | ||||||
| Touch screen type | Four wire resistive touch panel | ||||||
| cpu | Cortex-A7 dual core 1GHz | ||||||
| Menory | 128MB | ||||||
| Editing software | TouchWin Pro editing tool | ||||||
| Interface | COM1 port | COM1:RS232/RS485 | |||||
| COM2 port | COM2:RS232/RS485/RS422 | ||||||
| USB port | USB-A*1(USB Port) | ||||||
| Ethernet port | Standard RJ45(10/100 adaptive) | ||||||
| Audio | φ 3.5 coaxial audio plug | ||||||
| Video | – | ||||||
| 4G | – | – | 4G full network LTE-FDD(Mbps): 10(downlink)/5(uplink) | – | – | 4G full network LTE-FDD(Mbps): 10(downlink)/5(uplink) | |
| WIFI | – | IEEE 802.11 a/b/g/n IEEE 802.11g: 54Mbps | – | – | IEEE 802.11 a/b/g/n IEEE 802.11g: 54Mbps | – | |
| Electric characteristics | Input voltage | DC24V(Voltage range:DC22V-26V) | |||||
| Current consumption | 200mA | 270mA | |||||
| Allow power loss | Below 10ms (Actual power loss less than 1 second) | ||||||
| Resistance to voltage shock | AC1000V,10mA,less than 1 minute (between signal and ground) | ||||||
| Insulation resistance | DC500V, Above 10MΩ | ||||||
| Environment | Operation temperature | 0~50℃ | |||||
| Storage temperature | -10~60℃ | ||||||
| Operating humidity | 10%RH-90%RH(No condensation) | ||||||
| Anti-interference ability | Voltage noise : 1500Vp-p,pulse width 1us,1 minute | ||||||
| Air | Non corrosive gas | ||||||
| Cooling mode | Natural air cooling | ||||||
| IP code | Front panel IP65 | ||||||
| Shell material | Engineering plastics PC+ABS | ||||||
| External dimensions (mm) | 205.8*147.2*35.5 | 277.0*191.7*37.6 | |||||
| Hole size (mm) | 192.1*138.5(±0.1) | 260.2*179.7(±0.1) | |||||
