¥1,650.00

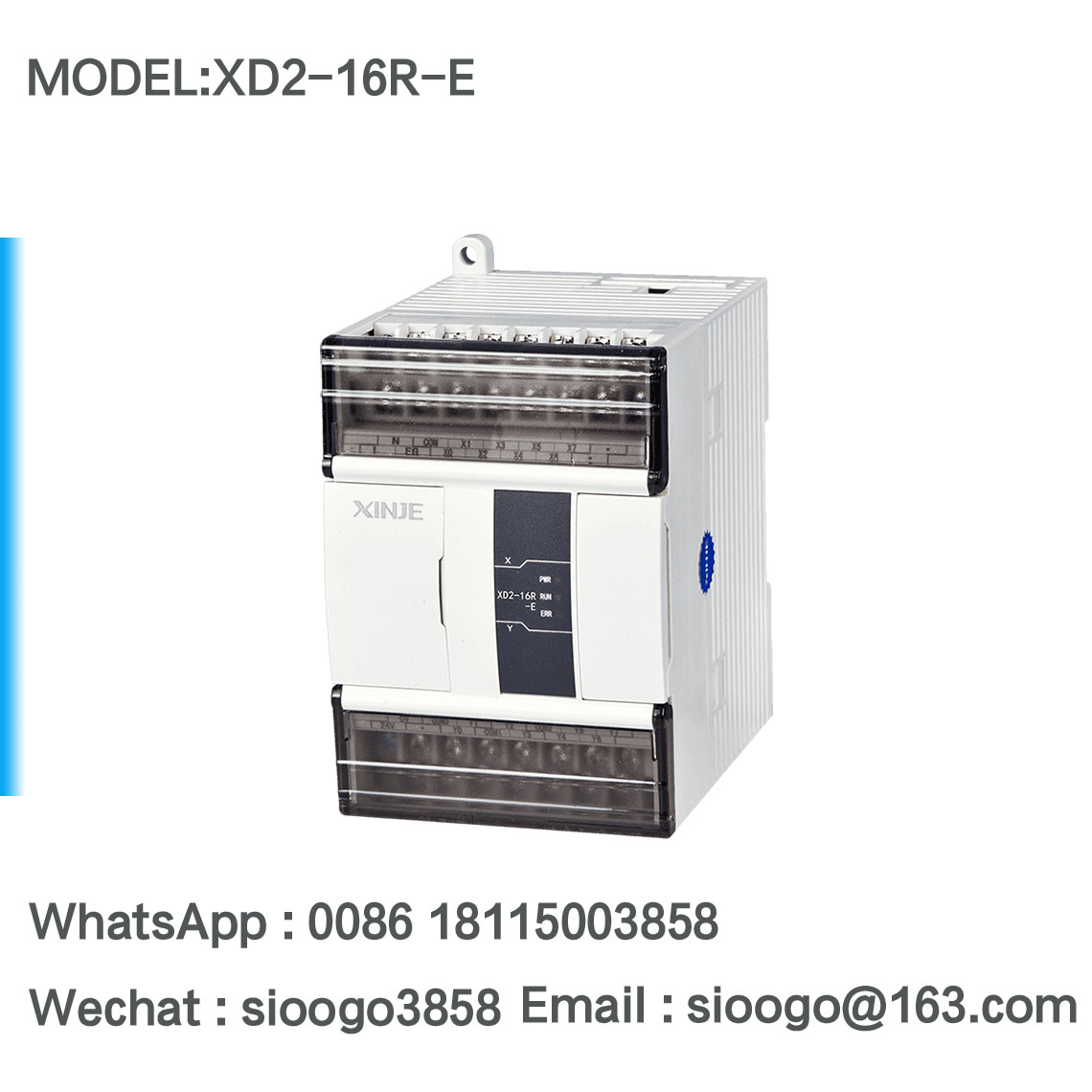

XD2 series economy type controller.
The host has 8 inputs and 8 outputs, with relay output; the power supply is AC100~240V, with DC24V output rated current of 200mA, and 3 high-speed counting channels; there are 2 RS232 and 1 RS485 ports;
It supports the expansion of 1 ED module on the left side.
Weight : 0.4kg
Packaged Dimensions : 146*141*115(mm)

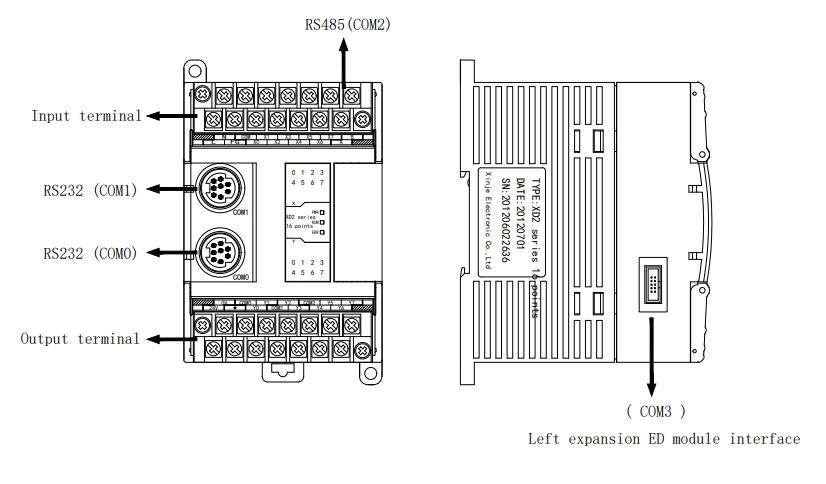

| Interface | Communication Type | Expansion module model | Supported Protocols |
| COM0 (Mini Din 8pin) | RS232 (4:RXD, 5:TXD, 8:GND) | Modbus RTU/ASCII,
Free Format |
|
| COM1 (Mini Din 8pin) | RS232 (4:RXD, 5:TXD, 8:GND) | ||
| COM2 (A,B) | RS485 (A:RS485+ , B:RS485-) | ||
| COM3 (Left expansion ED) | expansion RS232 or RS485 | XD-NES-ED ( RS232 or RS485) |
| model | XD2-16R-E | Specifications |
| IO specifications | DI points | 8 points |
| DO points | 8 points | |
| Input Type | NPN | |
| Output Type | Relay ( R ) | |
| High speed positioning | Pulse interpolation | × |
| Pulse follow-up | × | |
| Ordinary pulse channels | – | |
| High speed input | Single phase/AB phase channels | 3 Channels |
| Input Mode | OC | |
| Basic specifications | Power supply | AC220V |
| Program capacity | 256KB | |
| Extend Capability | Left expansion | |
| RTC | √ | |
| Basic instruction processing speed | 0.02-0.05us | |
| Communication method | ModbusRTU/ASCII | √ |
| ModbusTCP | × | |
| TCP/IP | × | |
| Ethernet/IP | × | |
| EtherCAT | × | |
| OPCUA/DA | × | |
| UDP | × | |
| CANopen | × | |
| CANbus | × | |
| Free Format | √ | |
| Extended functionality | Right expansion module | – |
| Left expansion ED module | 1 | |
| Expansion BD module | – | |
| Software function | Software | XDPPro |
| Programming Language | LD | |
| Online Download | × | |
| Communication interface | RS232 | 2 |
| RS485 | 1 | |
| USB Type-B | × | |
| RJ45 port | × | |
| CAN | × | |
| Type-C | × | |
| SD card | × | |
| Environmental requirements | Operation temperature | 0℃-60℃ |
| Operation Humidity | 5%~95%RH（No condensation） | |
| Storage temperature | -10℃-60℃ | |
| IP level | IP20 | |
| Certificate | CE | |
