¥760.00

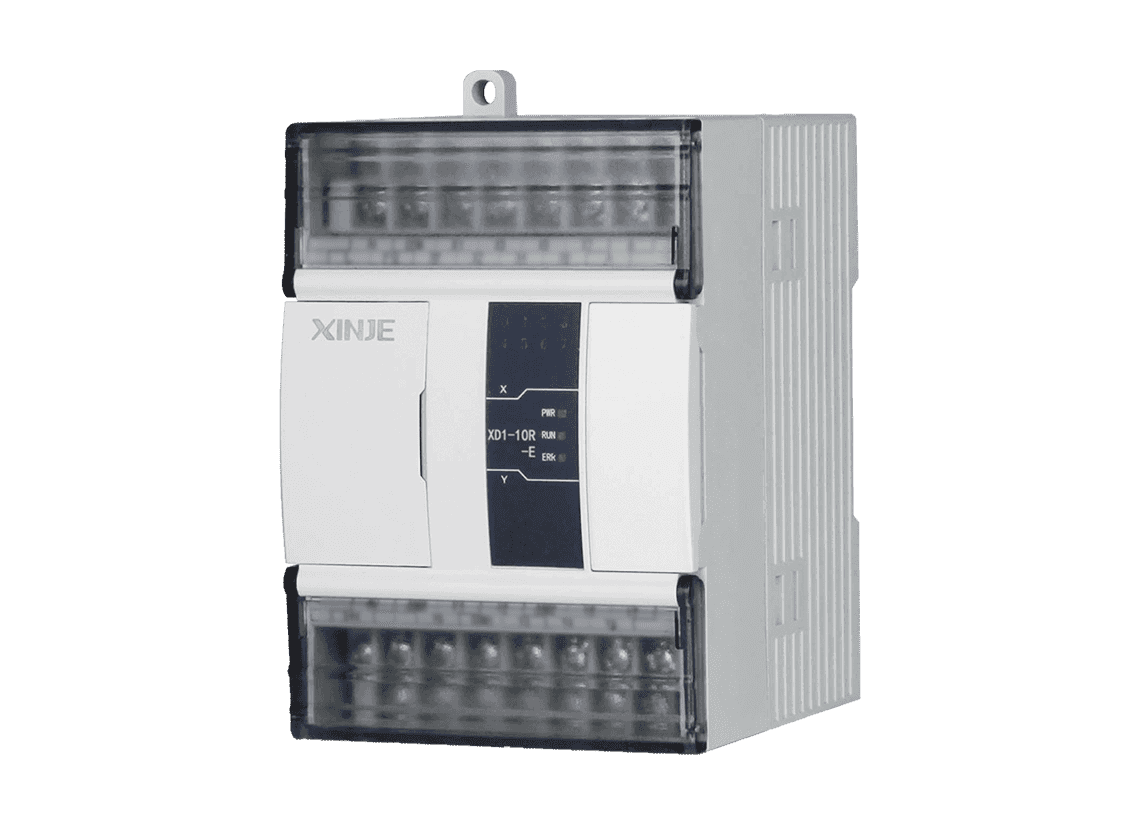

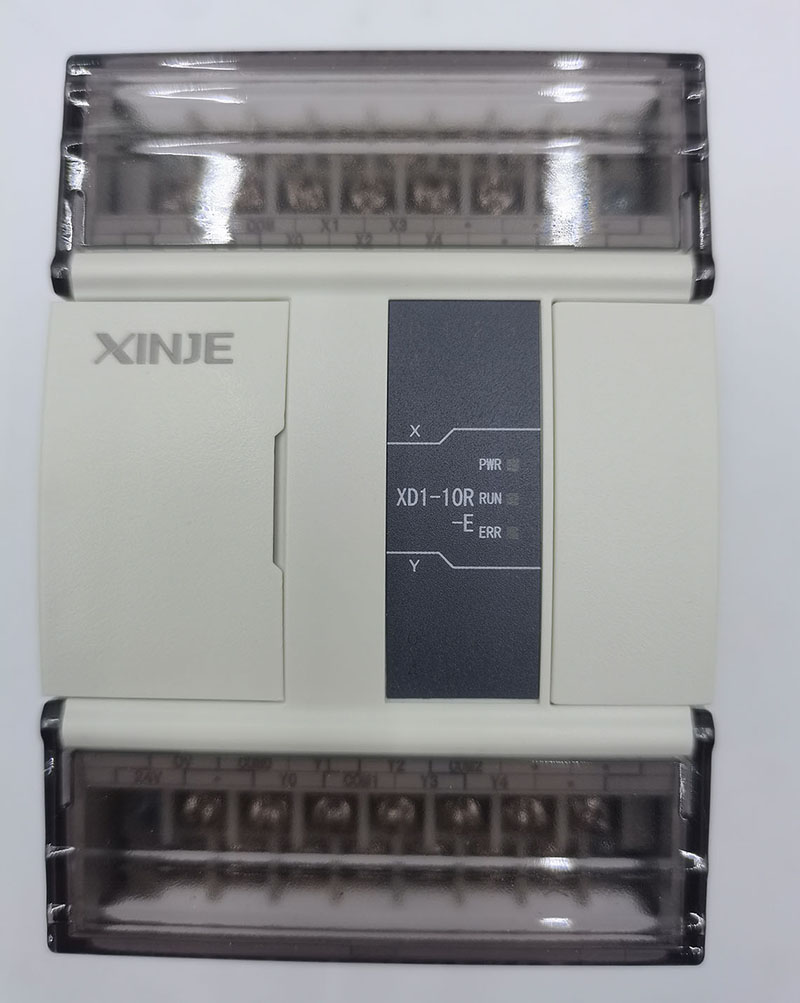

XD1 series economy type controller.

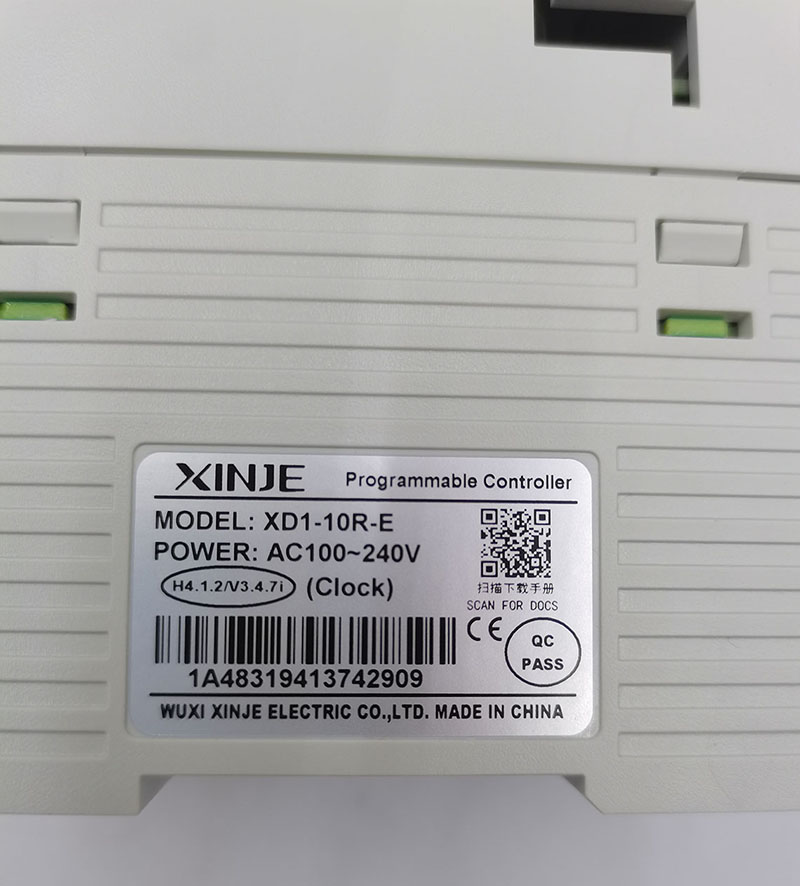

The host has 5 inputs and 5 outputs, with relay output; the power supply is AC100~240V, with DC24V output rated current of 200mA; there are 2 RS232 port;
Weight : 0.4kg

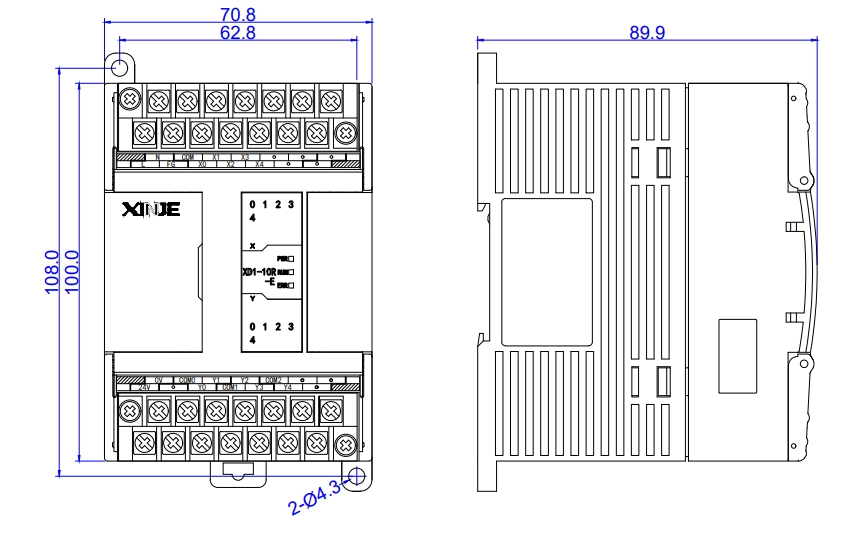

Packaged Dimensions : 142*78*100(mm)

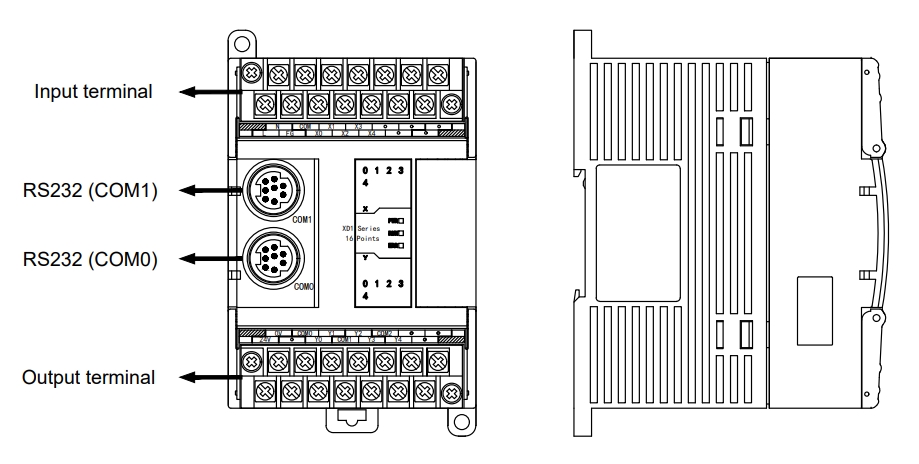

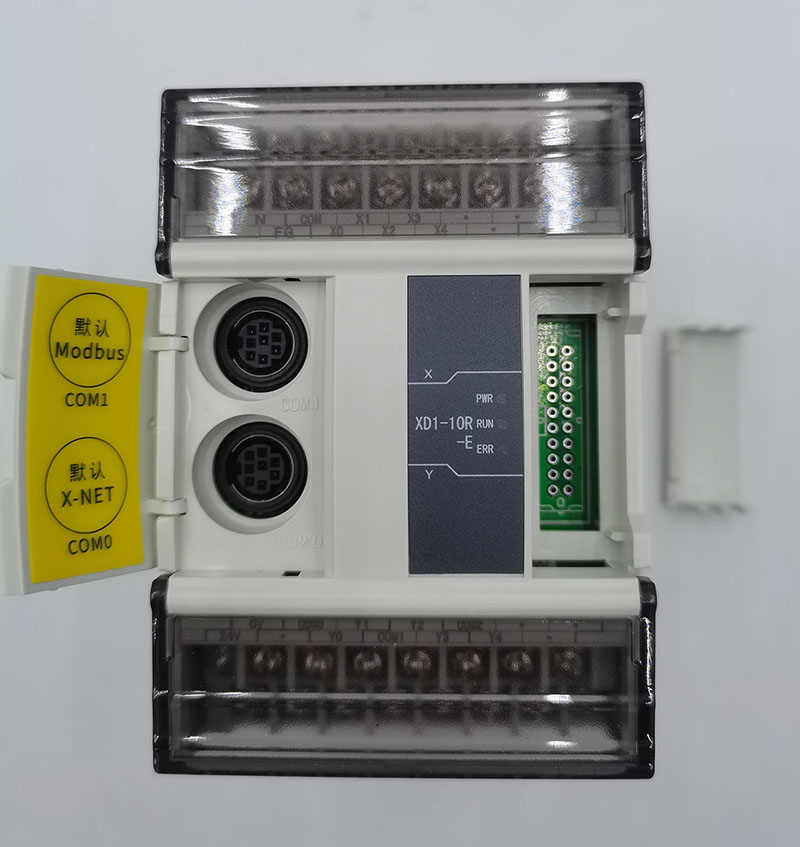

| Interface | Communication Type | Supported Protocols |
| COM0 (Mini Din 8pin) | RS232 (4:RXD, 5:TXD, 8:GND) | Modbus RTU/ASCII,
Free Format |
| COM1 (Mini Din 8pin) | RS232 (4:RXD, 5:TXD, 8:GND) |
| model | XD1-10R-E | Specifications |
| IO specifications | DI points | 5 points |
| DO points | 5 points | |
| Input Type | NPN | |
| Output Type | Relay ( R ) | |
| High speed positioning | Pulse interpolation | × |
| Pulse follow-up | × | |
| Ordinary pulse channels | – | |
| High speed input | Single phase/AB phase channels | – |
| Input Mode | – | |
| Basic specifications | Power supply | AC220V |
| Program capacity | 256KB | |
| Extend Capability | Left expansion,Right expansion,BD board | |
| RTC | √ | |
| Basic instruction processing speed | 0.02-0.05us | |
| Communication method | ModbusRTU/ASCII | √ |
| ModbusTCP | × | |
| TCP/IP | × | |
| Ethernet/IP | × | |
| EtherCAT | × | |
| OPCUA/DA | × | |
| UDP | × | |
| CANopen | × | |
| CANbus | × | |
| Free Format | √ | |
| Extended functionality | Right expansion module | × |
| Left expansion ED module | × | |
| Expansion BD module | × | |
| Software function | Software | XDPPro |
| Programming Language | LD | |
| Online Download | × | |
| Communication interface | RS232 | 2 |
| RS485 | × | |
| USB Type-B | × | |
| RJ45 port | × | |
| CAN | × | |
| Type-C | × | |
| SD card | × | |
| Environmental requirements | Operation temperature | 0℃-60℃ |
| Operation Humidity | 5%~95%RH（No condensation） | |
| Storage temperature | -10℃-60℃ | |
| IP level | IP20 | |
| Certificate | CE | |
lt does not support right expansion module, left expansion ED module and expansion BD board.
