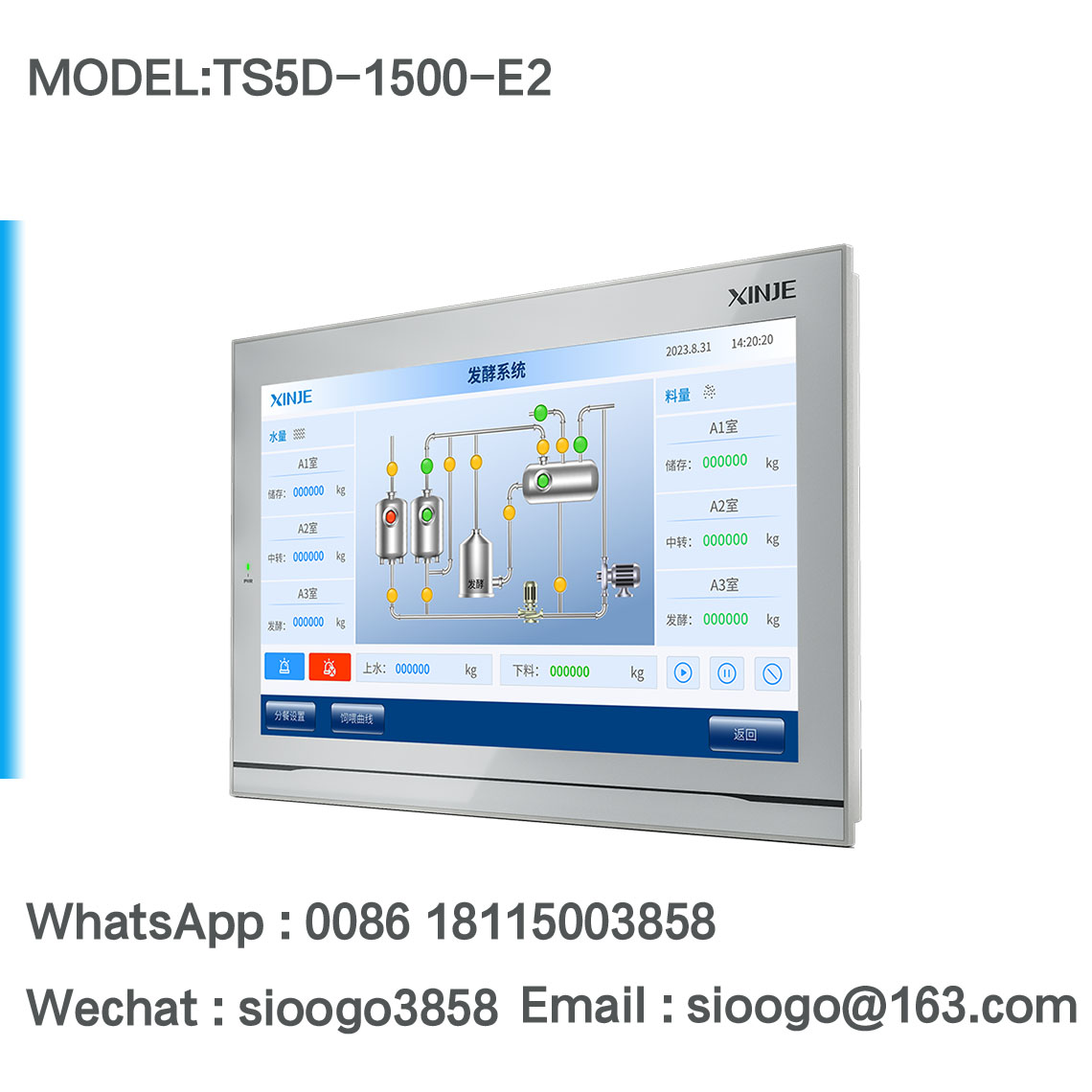

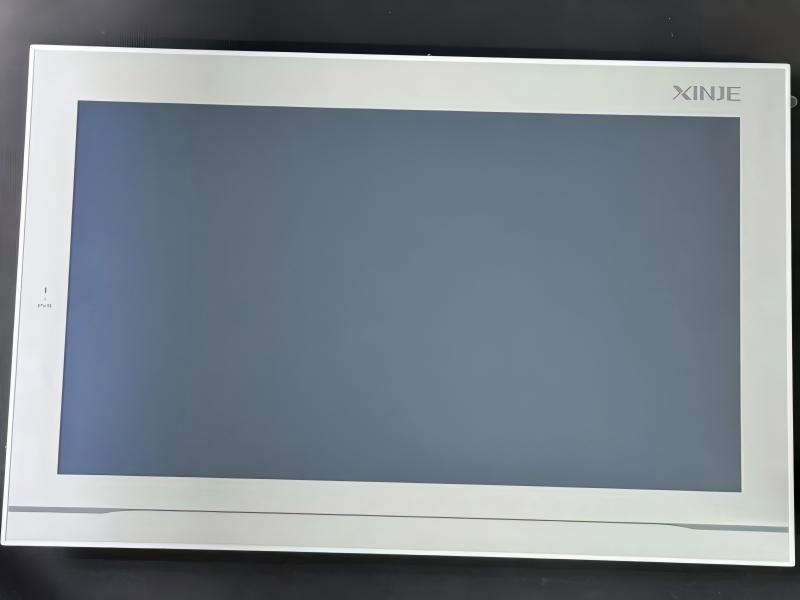

TS5D-1500-E2

TS5D-1500-E2

TS5D series IoT type metal HMI

Xinje touch screen, 15.6 inches, based on Linux system, utilizing Cortex-A7 processor with a clock speed of 1.2GHz, featuring built-in 256MB memory, 16.77 million colors, and a resolution of 1920*1080. It boasts 2 communication ports: COM1 supports RS232/RS485, while COM2 supports RS232/RS485/RS422. Additionally, it has 2 USB-A ports, supports CSV data import and export, and program download via USB flash drive. It also features a Type-C interface for program download, an audio interface for connecting speakers to output audio, and 2 Ethernet ports supporting MODBUS TCP, OPC, and MQTT protocols. It allows for web port download and remote information connection. The cutout size is 384*247, suitable for vertical installation. Engineering editing is done using Touchwin Pro software;



Weight : xxx kg

Packaged Dimensions :  xxxxx (mm)

Category:

Description

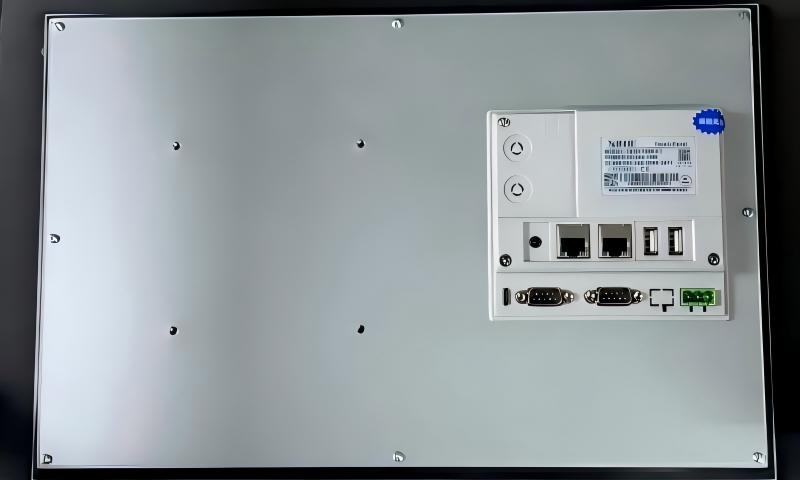

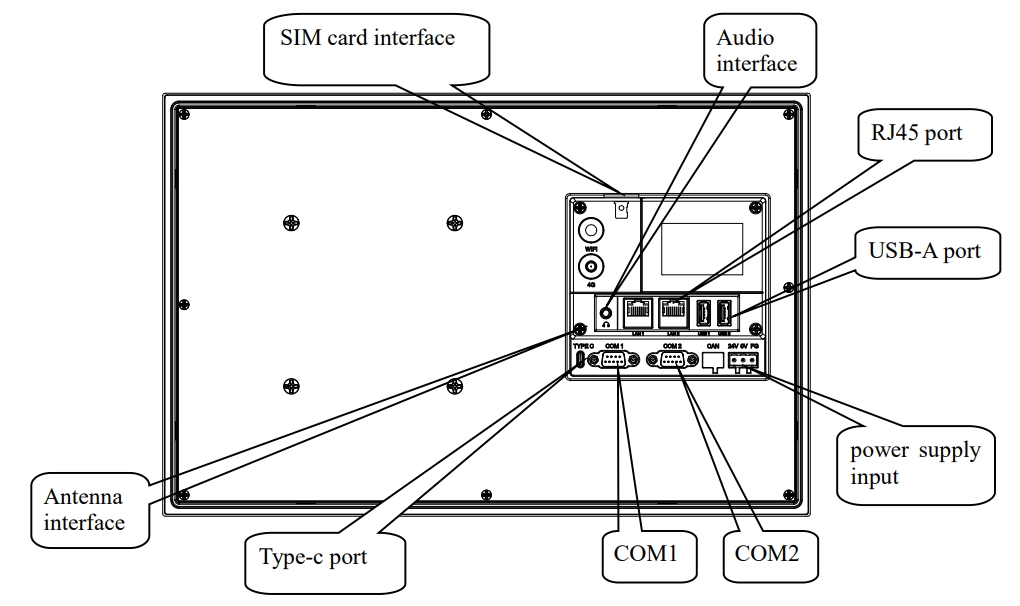

TS5D-1500-E2 structural composition

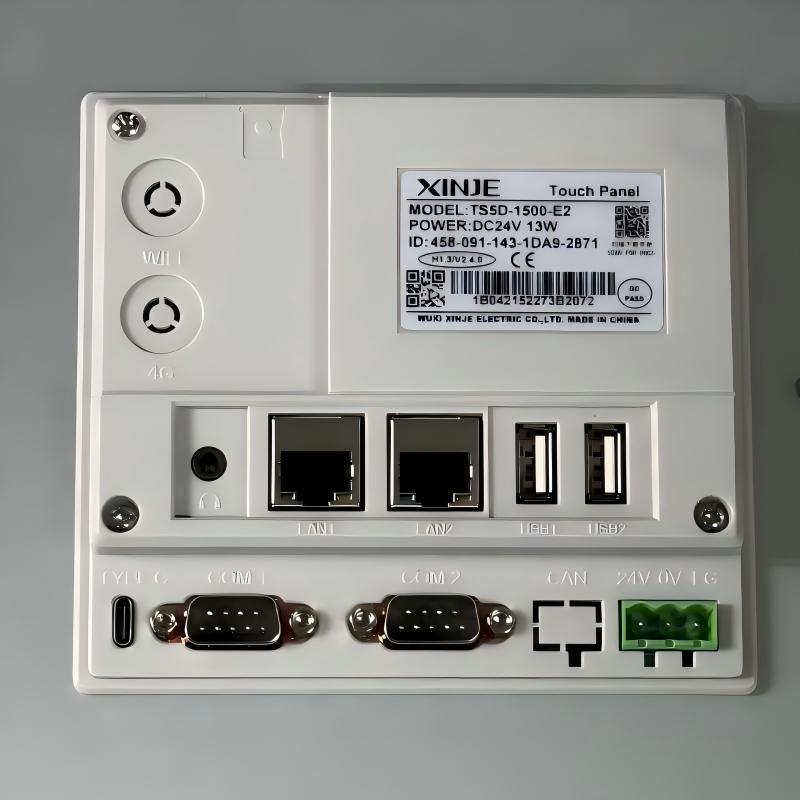

Communication interface and protocol

Appearance Name Function

COM1 Support RS232/RS485 communication

COM2 Support RS232/RS485/RS422 communication

USB-A port USB flash disk can be inserted to store data, and USB
flash disk can be imported into the project
Type-c port Used for downloading and uploading HMI programs/data

Ethernet port Support communication with TBOX, Siemens S7-1200, Siemens S7-200 Smart and other Modbus TCP devices

Audio interface ɸ3.5 coaxial audio plug, supporting the connection of
speakers for sound output

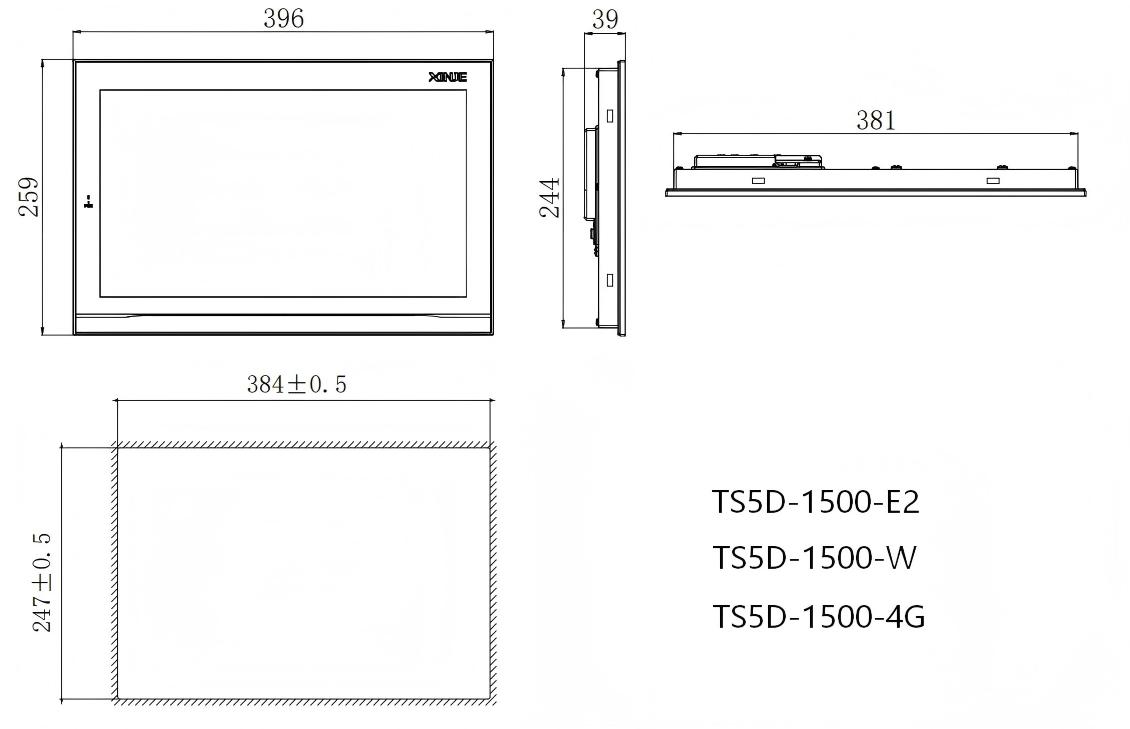

Dimensions （mm)

Model TS5D-1500-E2 Specifications
Product features Size 15.6″
Resolving power 1920*1080
display TFT LCD display ,LED backlight
Colour 16.77 million colors
Brightness 250 cd/m²
Touch screen type Four wire resistive touch panel
cpu Cortex-A7 dual core 1GHz
Menory 256MB
Editing software TouchWin Pro editing tool
Interface Serial port COM1:RS232/RS485; COM2:RS232/RS485/RS422
USB port USB-A*1(USB Port);Type-c*1,USB download port
Ethernet port Standard RJ45(10/100 adaptive)
Audio φ 3.5 coaxial audio plug
Video Interface
4G –
WIFI –
Electric characteristics Input voltage DC24V(Voltage range:DC22V-26V)
Current consumption 420mA
Allow power loss Below 10ms (Actual power loss less than 1 second)
Resistance to voltage shock AC1000V,10mA,less than 1 minute (between signal and ground)
Insulation resistance DC500V, Above 10MΩ
Environment Operation temperature 0~50℃
Storage temperature -10~60℃
Operating humidity 10%RH-90%RH(No condensation)
Anti-interference ability Voltage noise : 1500Vp-p,pulse width 1us,1 minute
Air Non corrosive gas
Cooling mode Natural air cooling
IP code Front panel IP65
Shell material Aluminum alloy
Authentication CE

TS5D-1500 Dimension drawing (.dwg)
Download
TS5D-1500 3D Image (.stp)
Download
TS5D-1500 EPLAN (.edz)
Download
TS HMI communication manual
Download
TS series HMI hardware manual
Download
TouchwinPro software manual
Download
TouchWin Pro-Setup V2.3.7
Download
