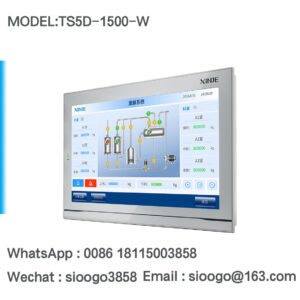

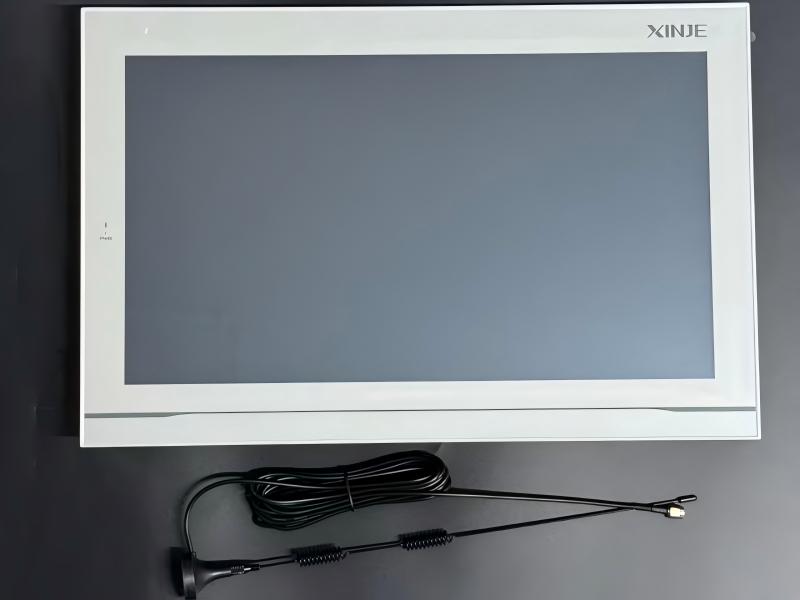

TS5D-1500-4G

TS5D series IoT type metal HMI

Xinje Touch screen, 15.6 inches, standard 4G connection, based on Linux system, utilizing Cortex-A7 processor with a clock speed of 1.2GHz, featuring built-in 256MB memory, 16.77 million colors, and a resolution of 1920*1080. It boasts 2 communication ports: COM1 supports RS232/RS485, while COM2 supports RS232/RS485/RS422. Additionally, it has 2 USB-A ports, supports CSV data import and export, and program download via USB flash drive. It also features a Type-C interface for program download, an audio interface for connecting speakers to output audio, and 2 Ethernet ports supporting MODBUS TCP, OPC, and MQTT protocols. It allows for web port download and remote information connection. The cutout size is 384*247, suitable for vertical installation. Engineering editing is done using Touchwin Pro software;

Weight : xxx kg

Packaged Dimensions : xxxxx (mm)

Category: Touch Screen Brand: XINJE

Description

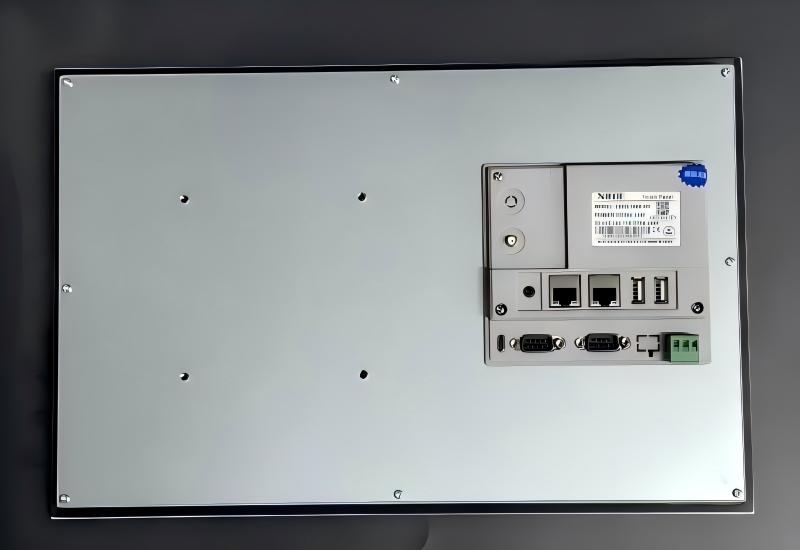

TS5D-1500-W structural composition

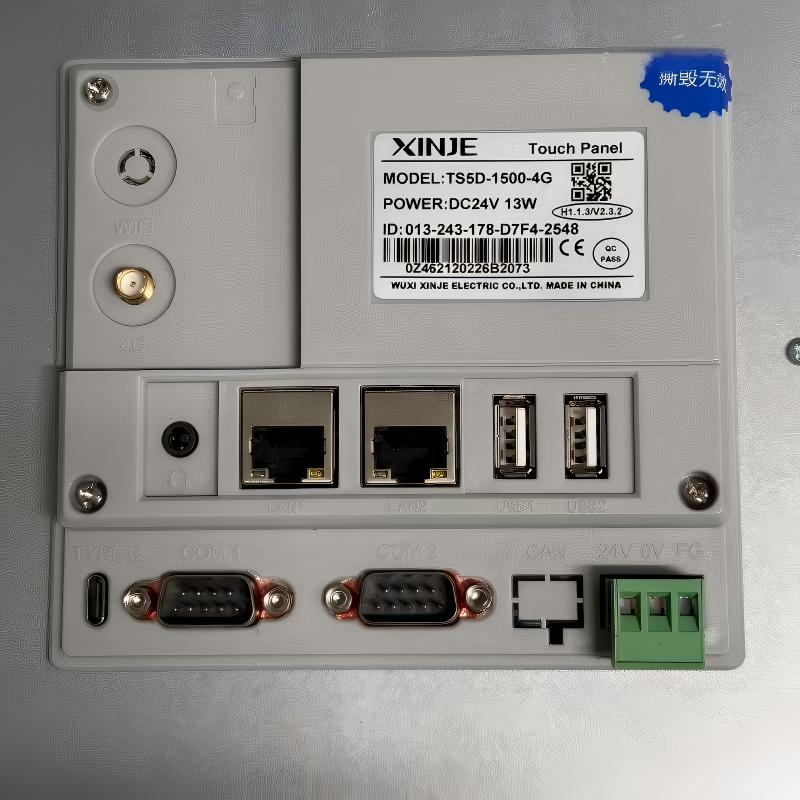

Communication interface and protocol

Appearance	Name	Function
	COM1	Support RS232/RS485 communication
	COM2	Support RS232/RS485/RS422 communication
	USB-A port	USB flash disk can be inserted to store data, and USB flash disk can be imported into the project
	Type-c port	Used for downloading and uploading HMI programs/data
	Ethernet port	Support communication with TBOX, Siemens S7-1200, Siemens S7-200 Smart and other Modbus TCP devices
	Audio interface	ɸ3.5 coaxial audio plug, supporting the connection of speakers for sound output
