TS5 series IoT human-machine interface

Xinje touch screen, TS5 series 7.0-inch, comes standard with 4G connectivity. Based on the Linux system, it utilizes a Cortex-A7 processor with a clock speed of 1GHz. It has built-in 128MB of memory, supports 16.77 million colors, and boasts a resolution of 800*480. It features two communication ports: COM1 supports RS232/RS485, while COM2 supports RS232/RS485/RS422. Additionally, it has one USB-A port, which supports CSV data import and export as well as program downloads via USB flash drive. There is also one audio interface for connecting speakers to output audio, one Ethernet port for supporting MODBUS TCP, OPC, and MQTT protocols, and it allows for web port downloads and remote information connectivity;
Hole size: 192.0*138.5, suitable for vertical installation, and edited using Touchwin Pro software for engineering purposes;



Weight : 0.4kg

Packaged Dimensions :  146*141*115(mm)

Category:

Description

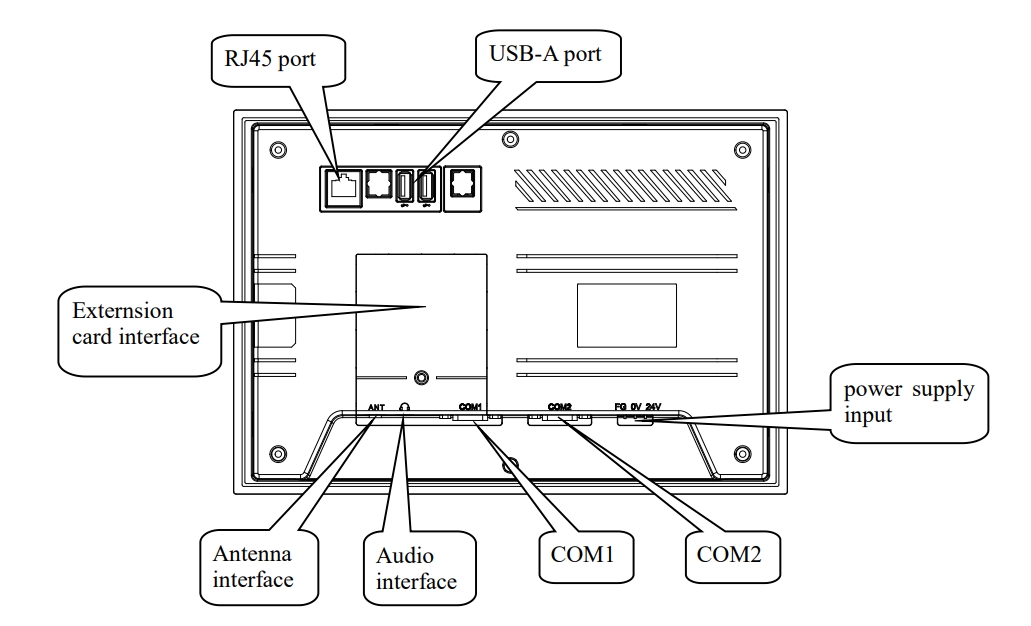

TS5-700-4G structural composition

Communication interface and protocol

Appearance Name Function

COM1 Support RS232/RS485 communication

COM2 Support RS232/RS485/RS422 communicat

USB-A port USB flash disk can be inserted to store data, and USB
flash disk can be imported into the proje

Ethernet port Support communication with TBOX, Siemens S7-1200, Siemens S7-200 Smart and other Modbus TC

Audio interface ɸ3.5 coaxial audio plug, supporting the connection of
speakers for sound outpu

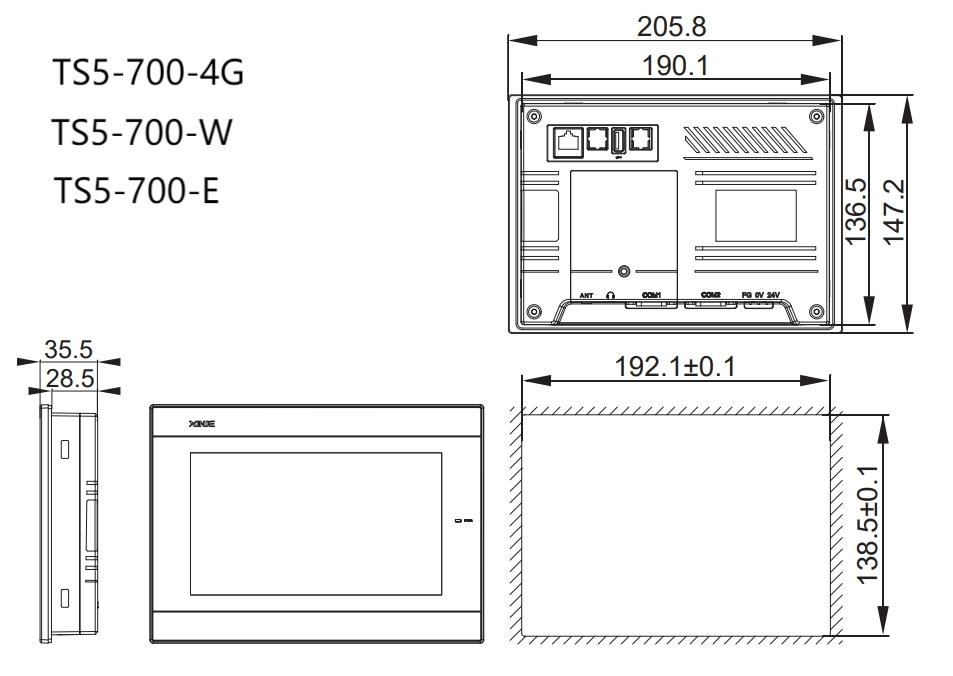

Dimensions （mm)

Model TS5-700-4G Specifications
Product features Size 7″
Resolving power 800*480
display TFT LCD display ,LED backlight
Colour 16.77 million colors
Brightness 250 cd/m²
Touch screen type Four wire resistive touch panel
cpu Cortex-A7 dual core 1GHz
Menory 128MB
Editing software TouchWin Pro editing tool
Interface Serial port COM1:RS232/RS485; COM2:RS232/RS485/RS422
USB port USB-A*1(USB Port)
Ethernet port Standard RJ45(10/100 adaptive)
Audio φ 3.5 coaxial audio plug
Video –
4G 4G full network LTE-FDD(Mbps):10(downlink)/5(uplink)
WIFI –
Electric characteristics Input voltage DC24V(Voltage range:DC22V-26V)
Current consumption 200mA
Allow power loss Below 10ms (Actual power loss less than 1 second)
Resistance to voltage shock AC1000V,10mA,less than 1 minute (between signal and ground)
Insulation resistance DC500V, Above 10MΩ
Environment Operation temperature 0~50℃
Storage temperature -10~60℃
Operating humidity 10%RH-90%RH(No condensation)
Anti-interference ability Voltage noise : 1500Vp-p,pulse width 1us,1 minute
Air Non corrosive gas
Cooling mode Natural air cooling
IP code Front panel IP65
Shell material Engineering plastics PC+ABS
Authentication CE

TS5-700 Dimension drawing (.dwg)
Download
TS5-700 3D Image (.stp)
Download
TS5-700-4G EPLAN (.edz)
Download
TS HMI communication manual
Download
TS series HMI hardware manual
Download
TouchwinPro software manual
Download
TouchWin Pro-Setup V2.3.7
Download
